Remove/Install Electrohydraulic Controller Unit (Transmission Installed) - AR27.19-P-0200MFA
Transmission 724.1 in model 118, 177, 247
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Perform commissioning of dual clutch transmission fully integrated transmission control electrohydraulic controller unit (Y3/14). | If the dual clutch transmission fully integrated transmission control electrohydraulic controller unit (Y3/14) is replaced. | |
| AD00.00-P-2000-06MFA | |||

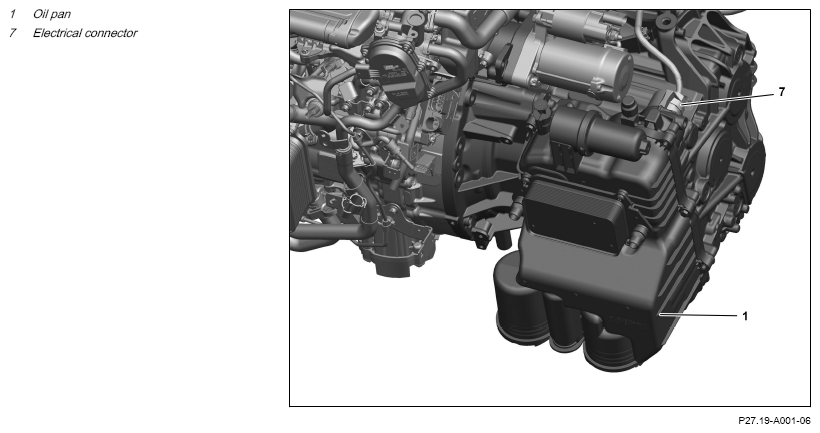

| 2 | Remove oil pan (1) from transmission (3). | AR27.10-P-7032MFA | |
| 3 | Release and disconnect electrical connector (7) on dual clutch transmission fully integrated transmission control electrohydraulic controller unit (Y3/14) then set aside. | ||

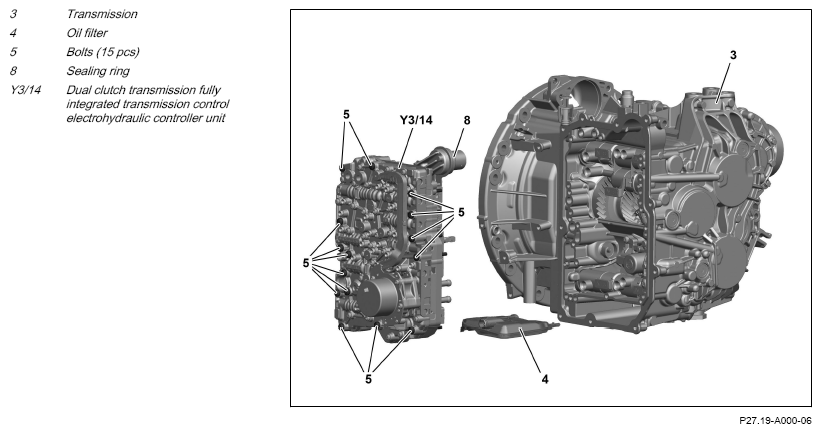

| 4 | Remove screws (5) of dual clutch transmission fully integrated transmission control electrohydraulic controller unit (Y3/14). | *BA27.19-P-1002-01E | |
| 5 | Remove dual clutch transmission fully integrated transmission control electrohydraulic controller unit (Y3/14). | ||
| Automatic transmission fluids (ATF) (specification 236.22) | BB00.40-P-0236-22A | ||
| 6 | Remove oil filter (4). | ||
| 7 | Check sealing ring (8) of electrical connector (7) for damage. | If damage occurs ↓ Replace sealing ring (8) of electrical connector (7). |
|
| 8 | Install in the reverse order. | ||
| Concluding tasks | |||
| 9 | Connect vehicle diagnosis system, read out fault memory, and delete. | ||
| AD00.00-P-2000-06MFA | |||
| 10 | Check oil level of transmission (3) and correct if necessary. | AR27.00-P-0104MFA |
ELECTROHYDRAULIC CONTROLLER UNIT
| Number | Designation | Transmission 724.1 | ||||
|---|---|---|---|---|---|---|
| BA27.19-P-1002-01E | Bolt, shift valve housing | to oil distributor plate | M5x35 | Stage 1 | Nm | 3 |
| Stage 2 | ∠° | 60 | ||||
| housing to transmission | M5x60 | Stage 1 | Nm | 3 | ||
| Stage 2 | ∠° | 60 | ||||
| M6x65 | Nm | 8 | ||||
