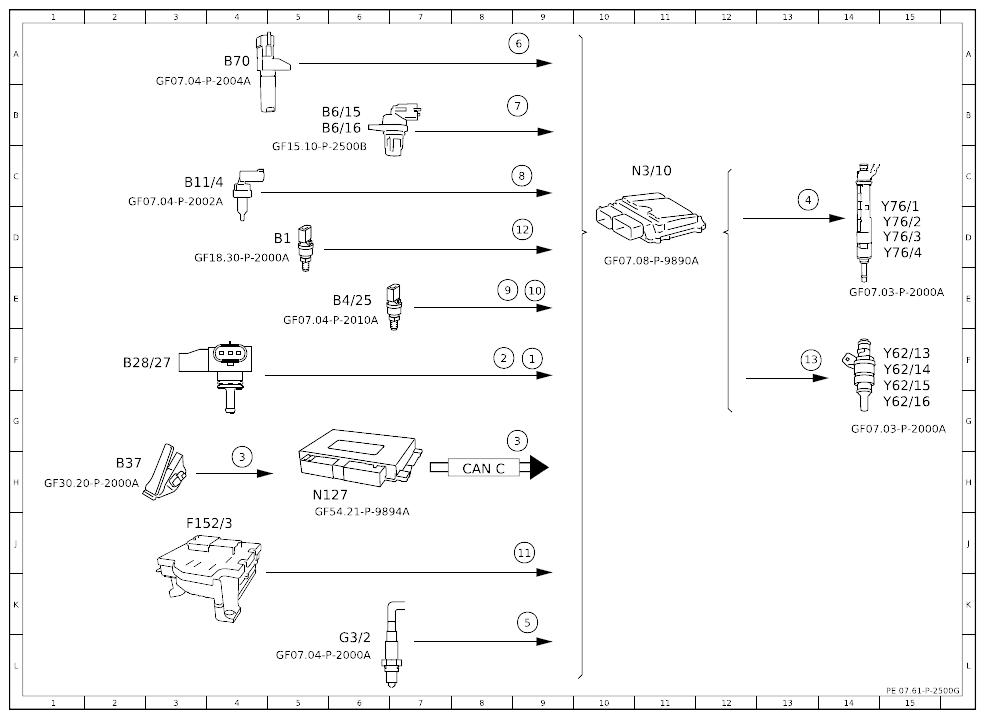

Function Schematic For Injection Control - PE07.61-P-2500-97G
Engine 139 in model 118, 177, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Charge air temperature sensor, signal | 9F |
| 10 | Fuel temperature, signal | 9E |
| 11 | Circuit 87, status | 9J |
| 12 | Engine oil temperature, signal | 9D |
| 13 | Injection valves, actuation | 13F |
| 2 | Engine load, signal | 8F |
| 3 | Accelerator pedal sensor, signal | 4H |
| 3 | Accelerator pedal sensor, signal | 9G |
| 4 | Fuel injectors, actuation | 13C |
| 5 | Oxygen sensor, sensor element, signal | 9K |
| 6 | Engine speed, signal | 9A |
| 7 | Camshaft Hall sensor, signal | 9B |
| 8 | Coolant temperature sensor, signal | 9C |
| 9 | Fuel pressure, signal | 8E |
| B1 | Engine oil temperature sensor | 5D |
| B11/4 | Coolant temperature sensor | 3C |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 2F |
| B37 | Accelerator pedal sensor | 2H |
| B4/25 | Fuel pressure and temperature sensor | 6E |
| B6/15 | Intake camshaft Hall sensor | 5B |
| B6/16 | Exhaust camshaft Hall sensor | 5B |
| B70 | Crankshaft Hall sensor | 4A |
| CAN C | Engine CAN | 8H |
| F152/3 | Engine compartment fuse and relay module | 3J |
| G3/2 | Oxygen sensor upstream of catalytic converter | 6L |
| N127 | Drivetrain control unit | 5H |
| N3/10 | ME-SFI [ME] control unit | 11C |
| Y62/13 | Cylinder 1 injection valve, intake manifold | 15F |
| Y62/14 | Cylinder 2 injection valve, intake manifold | 15F |
| Y62/15 | Cylinder 3 injection valve, intake manifold | 15G |
| Y62/16 | Cylinder 4 injection valve, intake manifold | 15G |
| Y76/1 | Cylinder 1 fuel injector | 15D |
| Y76/2 | Cylinder 2 fuel injector | 15D |
| Y76/3 | Cylinder 3 fuel injector | 15D |
| Y76/4 | Cylinder 4 fuel injector | 15D |
