Glass Breakage Sensor, Basic Function - GF80.50-P-2009A
Model all (CAR)

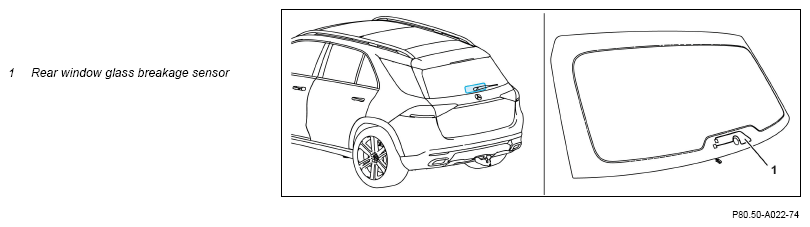

Shown on Model 167

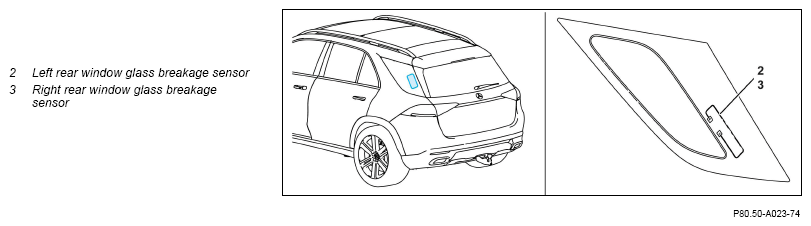

Shown on Model 167
Overview
This document contains information on:
- General
- Function
General
The glass breakage sensor is integrated in the respective glass pane.
Function
The glass breakage sensor consists of conductor tracks that are vacuum-metalized onto the respective window. If the resistance value for the conductor tracks rises above a specific value, an alarm is issued. The status of the glass breakage sensor is evaluated by the control unit of the anti-theft alarm system. Glass breakage sensors are usually installed in the rear window. Crewbuses as well as 2-door coupes and SUVs are often equipped with glass breakage sensors in the rear fixed side windows in addition.
| Component descriptions | |||
| Rear glass breakage sensor, component description | Model 243 | GF80.50-P-4117B | |
| Model 206 | GF80.50-P-4117C | ||
| Rear window glass breakage sensor, component description | Model 243 | GF80.50-P-4118B | |
| Model 206 | GF80.50-P-4118C | ||
| Model 297 | GF80.50-P-4118D |
