Remove/Install Turn/Push Control For Front Central Operating Unit - AR54.21-P-0501LWE
Model 213, 238
except code 446 (Touchpad only)
MODIFICATION NOTES
| 08.01.2018 | "Perform commissioning of Audio/COMAND control panel (A40/9)" added | Operation step 1 |

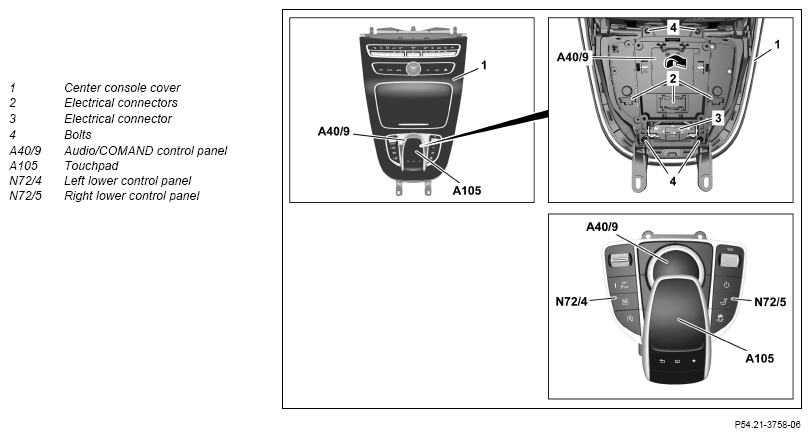

Shown on model 213 with transmission 725 and with code 448 (Touchpad)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of Audio/COMAND control panel (A40/9) | When replacing the Audio/COMAND control panel (A40/9). | |
| Model 238 except code 446 (Touchpad only) | AD00.00-P-2000-06LWO | ||
| Model 213 except code 446 (Touchpad only) | AD00.00-P-2000-04B | ||
| 2 | Remove center console cover (1) | Model 238 with transmission 725 | AR68.20-P-2350LWO |
| Model 213 with transmission 725 | AR68.20-P-2350LW | ||
| Model 238 with transmission 716 | AR68.20-P-2350LWP | ||
| Model 213 with transmission 716 | AR68.20-P-2350LWA | ||
| 3 | Separate electrical connectors (2) | ||
| 4 | Disconnect electrical connection (3) | Model 213, 238 with code 448 (Touchpad) except code 446 (Touchpad only) | |
| 5 | Remove screws (4) | ||
| 6 | Remove Audio/COMAND control panel (A40/9) from center console cover (1) in the direction of the arrow | ||
| 7 | Remove touch pad (A105) | Only when replacing Audio/COMAND control panel (A40/9). Model 213, 238 with code 448 (Touchpad) except code 446 (Touchpad only) |
AR54.21-P-0503LW |
| 8 | Remove left lower control panel (N72/4) and right lower control panel (N72/5) | Only when replacing Audio/COMAND control panel (A40/9). Model 213, 238 with transmission 725 |
AR54.25-P-0005LWE |
| 9 | Install in the reverse order |
