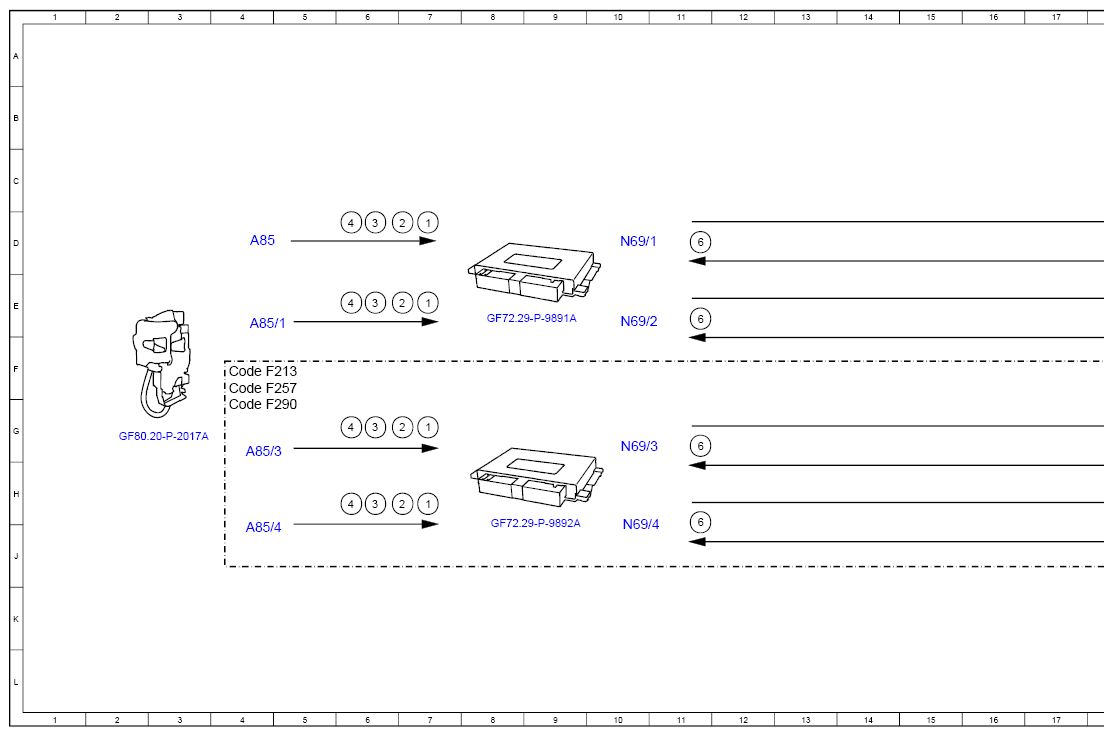

Function Schematic For Power Closing Function - PE80.40-P-2500-97C
Model 213, 238, 257, 290 as of model year 2021 with code 883 (Power locking)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Microswitch lock-in, status | 7D |
| 1 | Microswitch lock-in, status | 7E |
| 1 | Microswitch lock-in, status | 7G |
| 1 | Microswitch lock-in, status | 7H |
| 2 | Microswitch main detent, status | 7D |
| 2 | Microswitch main detent, status | 7E |
| 2 | Microswitch main detent, status | 7G |
| 2 | Microswitch main detent, status | 7H |
| 3 | Internal microswitch, status | 6D |
| 3 | Internal microswitch, status | 6E |
| 3 | Internal microswitch, status | 6G |
| 3 | Internal microswitch, status | 6H |
| 4 | Microswitch external operation, status | 6D |
| 4 | Microswitch external operation, status | 6E |
| 4 | Microswitch external operation, status | 6G |
| 4 | Microswitch external operation, status | 6H |
| 5 | Close servo motor, control | 18D |
| 5 | Close servo motor, control | 18E |
| 5 | Close servo motor, control | 18G |
| 5 | Close servo motor, control | 18H |
| 6 | Close servo motor microswitch, status | 11E |
| 6 | Close servo motor microswitch, status | 11F |
| 6 | Close servo motor microswitch, status | 11H |
| 6 | Close servo motor microswitch, status | 11J |
| A85 | Door lock front door on the left | 4D |
| A85/1 | Door lock front door on the right | 4E |
| A85/3 | Door lock, left rear door | 4G |
| A85/4 | Door lock, right rear door | 4J |
| Code F213 | Series 213 | 4F |
| Code F257 | Series 257 | 4F |
| Code F290 | Series 290 | 4G |
| M14/21 | Servo-closing servomotor, left front door | 19D |
| M14/22 | Servomotor, servo-closing, right front door | 19E |
| M14/23 | Servo motor for closing the rear door on the left | 19G |
| M14/24 | Servo-closing servo motor, right rear door | 19J |
| N69/1 | Left front door control unit | 10D |
| N69/2 | Right front door control unit | 10E |
| N69/3 | Left rear door control unit | 10G |
| N69/4 | Right rear door control unit | 10J |
