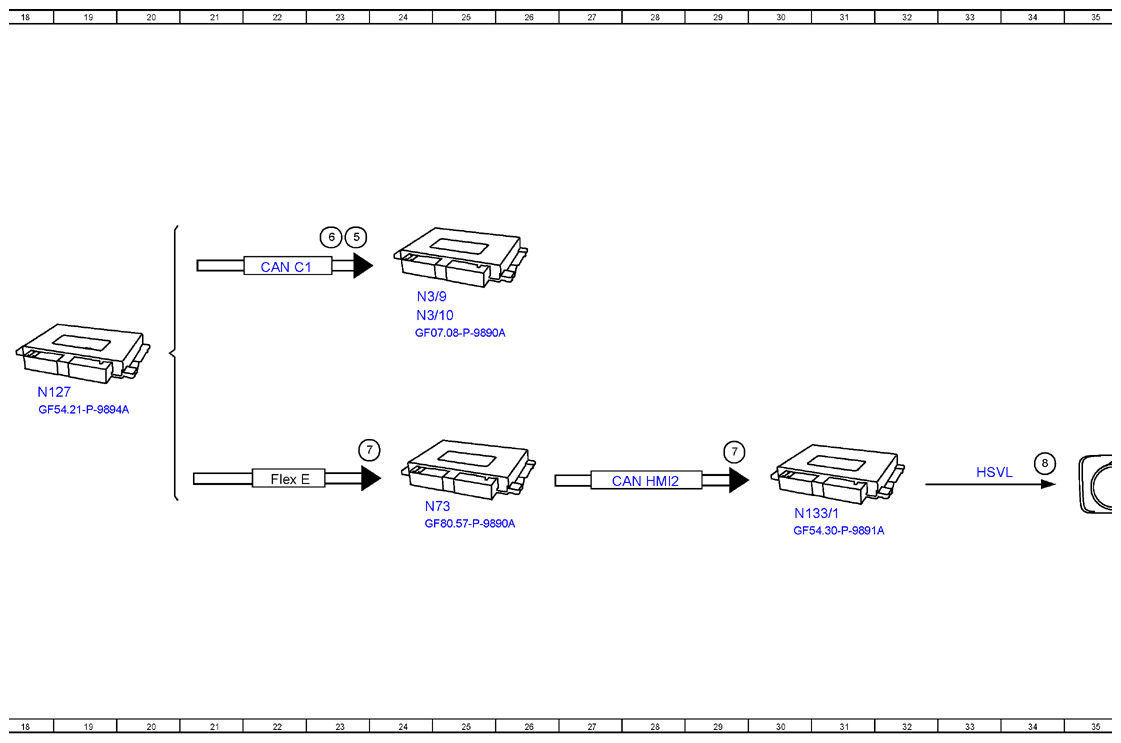

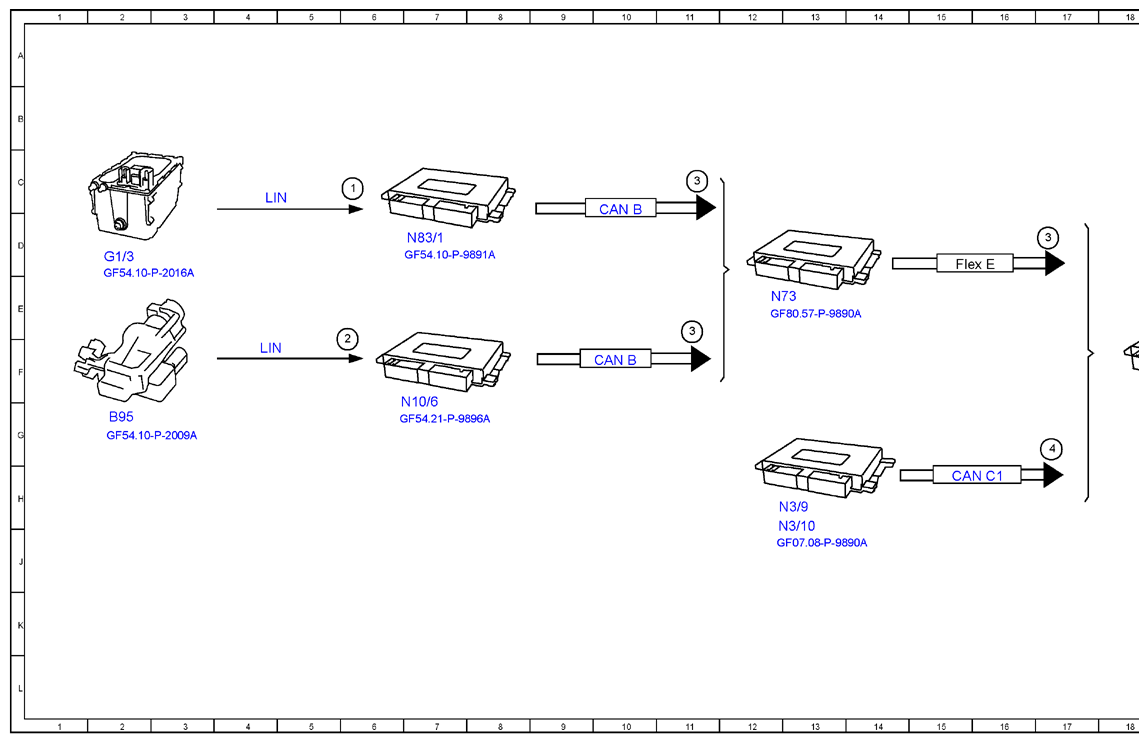

Function Schematic, ECO Start/Stop Function Energy Management - PE54.10-P-2500-97E
Model 213, 238, 257, 290 as of model year 2021 with code B01 (48V technology)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | 48 V on-board electrical system battery, status | 6C |
| 2 | Battery sensor, signal | 6F |
| 3 | On-board electrical system energy state, signal | 17D |
| 3 | On-board electrical system energy state, signal | 11F |
| 3 | On-board electrical system energy state, signal | 11C |
| 4 | Engine running, signal | 17H |
| 5 | Engine stop, request | 23D |
| 6 | Engine start, request | 23D |
| 7 | Instrument cluster message, request | 29H |
| 7 | Instrument cluster message, request | 23H |
| 8 | Image data, signal | 34H |
| A40/16 | Head unit/instrument cluster display cluster | 37J |
| B95 | Battery sensor | 2G |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 10D |
| CAN C1 | Drivetrain CAN | 22D |
| CAN C1 | Drivetrain CAN | 15H |
| CAN HMI2 | User interface CAN 2 | 28H |
| Flex E | Chassis FlexRay | 15D |
| Flex E | Chassis FlexRay | 22H |
| G1/3 | 48 V battery | 2D |
| HSVL | High-speed video Link | 33H |
| LIN | Local Interconnect Network | 4F |
| LIN | Local Interconnect Network | 4C |
| N10/6 | Front SAM control unit | 7G |
| N127 | Drivetrain control unit | 18F |
| N133/1 | Instrument cluster control unit | 30H |
| N3/10 | ME-SFI [ME] control unit | 24E |
| N3/10 | ME-SFI [ME] control unit | 13J |
| N3/9 | CDI control unit | 24E |
| N3/9 | CDI control unit | 13H |
| N73 | Electronic ignition switch control unit | 12E |
| N73 | Electronic ignition switch control unit | 25H |
| N83/1 | DC/DC converter control unit | 7D |
