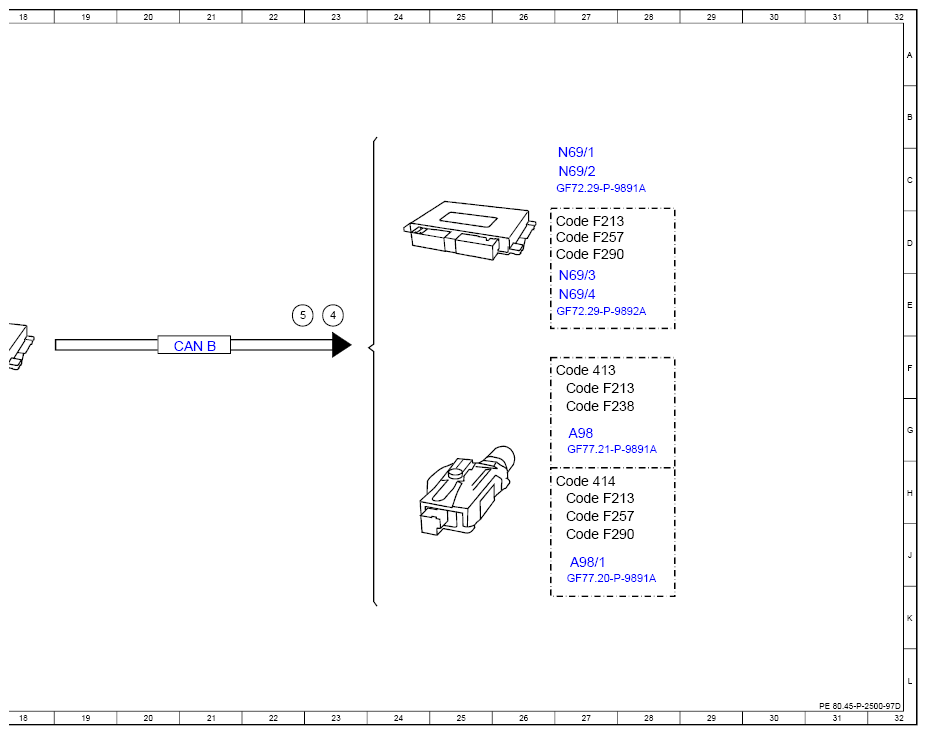

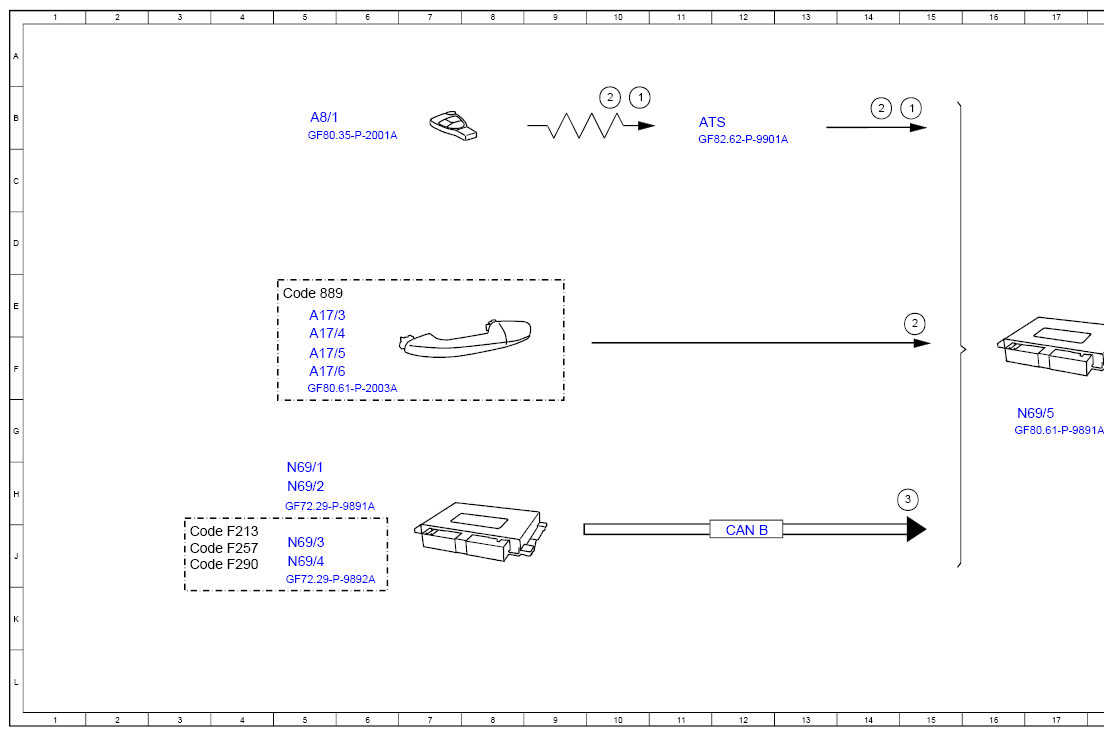

Trigger Convenience Feature Via Central Locking System, Function Schematic - PE80.45-P-2500-97D
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Access authorization code, signal | 15B |
| 1 | Access authorization code, signal | 10B |
| 2 | Convenient closing / opening, requirement | 14B |
| 2 | Convenient closing / opening, requirement | 15F |
| 2 | Convenient closing / opening, requirement | 10B |
| 3 | Switch rotary latch door, status | 15J |
| 4 | Comfort activation, status | 23F |
| 5 | Comfort actuation direction, signal | 22F |
| A17/3 | Door handle KEYLESS-GO at the rear left | 5E |
| A17/4 | Door handle KEYLESS-GO at the rear right | 5F |
| A17/5 | Door handle KEYLESS-GO driver's door | 5F |
| A17/6 | Door handle KEYLESS-GO passenger door | 5F |
| A8/1 | Transmitter key | 5B |
| A98 | Panoramic sunroof control module | 27G |
| A98/1 | Sunroof control module | 27J |
| ATS | Antenna system | 11B |
| CAN B | Interior CAN | 12J |
| CAN B | Interior CAN | 21F |
| Code 413 | Panoramic sunroof | 27F |
| Code 414 | sunroof | 27H |
| Code 889 | KEYLESS-GO | 5E |
| Code F213 | Series 213 | 3J |
| Code F213 | Series 213 | 27D |
| Code F213 | Series 213 | 27F |
| Code F213 | Series 213 | 27H |
| Code F238 | Series 238 | 27G |
| Code F257 | Series 257 | 3J |
| Code F257 | Series 257 | 27D |
| Code F257 | Series 257 | 27H |
| Code F290 | Series 290 | 3J |
| Code F290 | Series 290 | 27D |
| Code F290 | Series 290 | 27J |
| N69/1 | Left front door control unit | 5H |
| N69/1 | Left front door control unit | 27C |
| N69/2 | Right front door control unit | 5H |
| N69/2 | Right front door control unit | 27C |
| N69/3 | Left rear door control unit | 5J |
| N69/3 | Left rear door control unit | 27E |
| N69/4 | Right rear door control unit | 5J |
| N69/4 | Right rear door control unit | 27E |
| N69/5 | KEYLESS-GO control unit | 17G |
