Remove/Install Front LED Matrix Lamp Unit Control Unit - AR82.10-P-2025LWE

Model 213, 238

with code P35 (Light Package)

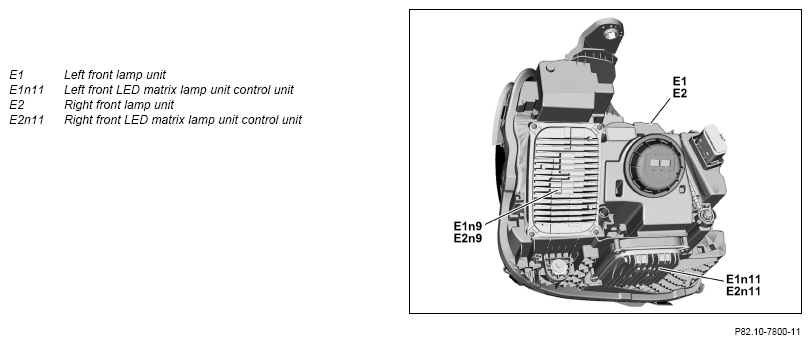

Fig 1: Front LED Matrix Lamp Unit Control Unit Components Location - Model 213 With Code P35

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Perform initial startup of left front LED matrix lamp unit control unit (E1n11) or right front LED matrix lamp unit control unit (E2n11)	When replacing left front LED matrix lamp unit control unit (E1n11) or right front LED matrix lamp unit control unit (E2n11).
		Model 213 with code P35 (Light Package)	AD00.00-P-2000-04B
		Model 238 with code P35 (Light Package) : Note matrix code on the left front lamp unit (E1) or right front lamp unit (E2).	AD00.00-P-2000-06LWO
2	Remove left front lamp unit (E1) or right front lamp unit (E2)	Model 213 with code P35 (Light Package)	AR82.10-P-4730LW
		Model 238 with code P35 (Light Package)	AR82.10-P-4733LWO
3	Unscrew screws/bolts from left front LED matrix lamp unit control unit (E1n11) or right front LED matrix lamp unit control unit (E2n11)
4	Remove left front LED matrix lamp unit control unit (E1n11) or right front LED matrix lamp unit control unit (E2n11) until electrical connector is accessible	: Ensure gasket is correctly installed.
5	Disconnect electrical connector and remove left front LED matrix lamp unit control unit (E1n11) or right front LED matrix lamp unit control unit (E2n11)
6	Install in the reverse order
