Remove/Install Transfer Case Control Unit - AR28.19-P-1003MSA
Model 213.061/261, 238.361/461, 257.361 with engine 256.9 with transmission 725.0
Model 290 with engine 256.9 with transmission 725.04
with code M005 (Vehicles with 4MATIC/all-wheel drive)
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 |

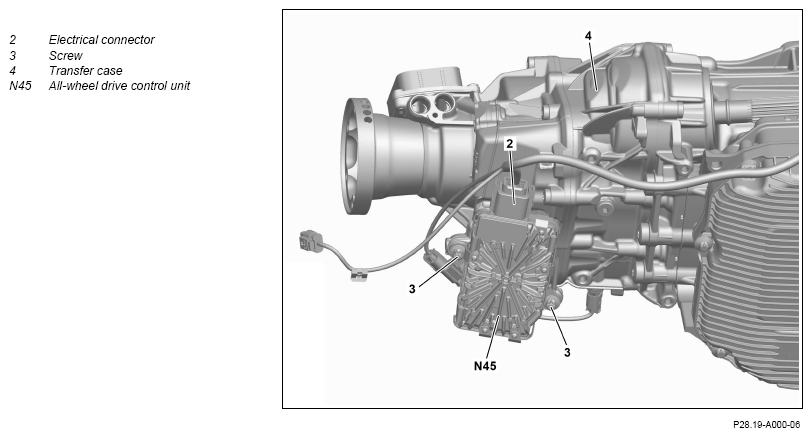

Drain transmission oil from transfer case (4). Transfer case - oil change | AP28.00-P-2801C | |
| 2 | Release and disconnect electrical connector (2). | ||
| 3 | Remove screw/bolts (3). | *BA28.10-P-1010-01G | |
| 4 | Remove all-wheel drive control unit (N45). | The lugs of the all-wheel drive control unit (N45) must engage in the grooves in the transfer case (4). Otherwise damage will occur. |
|
| 5 | Install in the reverse order. | ||
| 6 |
Commission all-wheel drive control unit (N45). | When replacing the all-wheel drive control unit (N45). | |
| Model 213.061/261 with engine 256.9 with transmission 725.0 | AD00.00-P-2000-04B | ||
| Model 238.361/461 with engine 256.9 with transmission 725.0 | AD00.00-P-2000-06LWO | ||
| Model 257.361 with engine 256.9 with transmission 725.0 Model 290 with engine 256.9 with transmission 725.04 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AD00.00-P-2000-06FR | ||
7 |
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform engine test run and check transfer case (4) for proper operation and leak tightness. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
COMPLETE TRANSFER CASE
| Number | Designation | Model 205, 213, 217, 218, 222, 223, 238, 253, 257, 290 with transmission 725.0/1 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
|
|---|---|---|---|
| BA28.10-P-1010-01G | Bolt, control unit to transfer case | Nm | 24 |
