Upper Control Panel Control Unit, Basic Function - GF54.21-P-9898A
Model all (CAR)
Overview
This document contains information on:
- General
- Location
- Structure
General
Various functions can be selected using the control elements on the upper control panel, e.g. the stationary heater, volume adjustment or head unit ON/OFF. Indicators can also be located in the upper control panel, e.g. for switching off the front passenger airbag or the anti-theft alarm system (ATA).

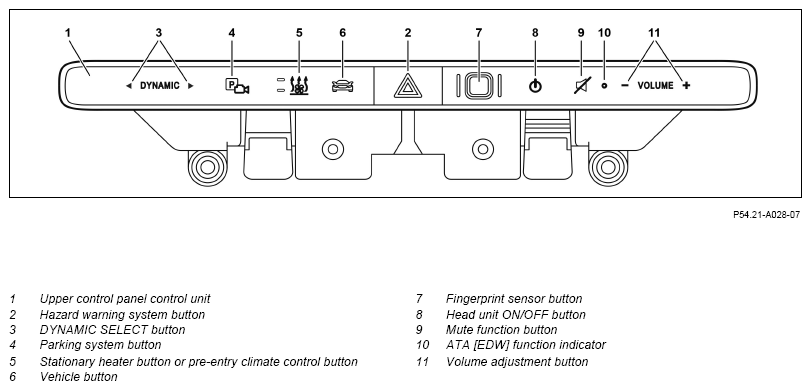

The presentation is just an example
Shown here as an example (telematics unit version NTG 7)

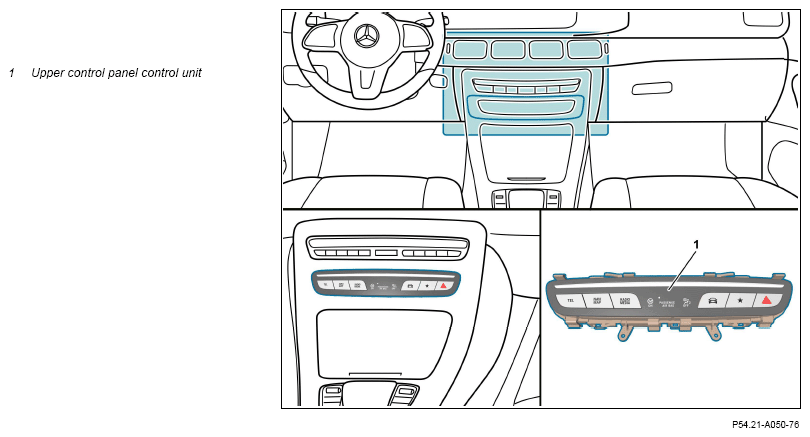

Location
Depending on the vehicle model, the upper control panel is located in the center of the instrument panel.
Structure
The type, location and number of operating elements and indicators in the upper control panel vary depending on the model and equipment. Unlike the pushbuttons used previously, the buttons on telematics unit version NTG 7 (with the exception of the hazard warning light system button) are touch-sensitive. The fingerprint sensor (model dependent) is located in the upper control panel.
