Upper Control Panel Control Unit, Component Description - GF54.21-P-6040FG
Model 213 up to model year 2021

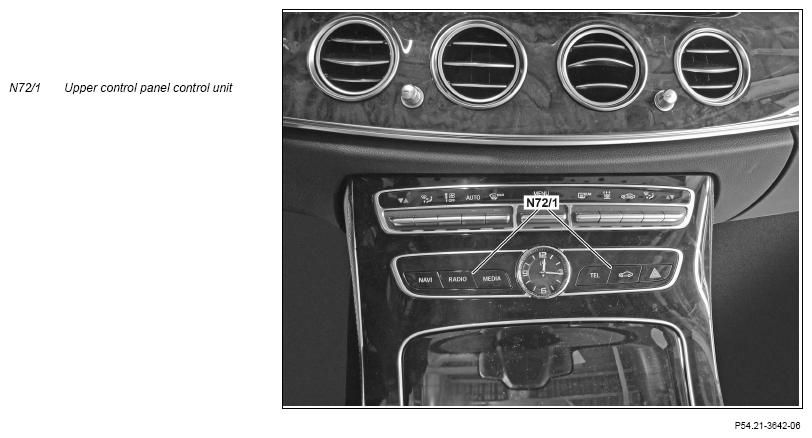

Shown on model 213 with code 246 (Analog clock)
Location
The upper control panel control unit is located on the center console.
Tasks
The upper control panel control unit forwards the signals of the integrated controls and receives the actuation for the integrated display elements.
The upper control panel control unit receives the following signals from the Audio/COMAND control panel (A40/9):
- Actuation of front passenger airbag OFF indicator lamp (N72/1e1) (with code U10 (Automatic front passenger airbag shutoff)) via LCP LIN (LIN A3)
- Actuation of front passenger airbag ON indicator lamp (N72/1 e2) (with code U10 (Automatic front passenger airbag shutoff)) via LCP LIN
- Actuation of ATA function indicator (N72/1e3) (with code 551 (Anti-theft alarm system (ATA))) via LCP LIN
- Actuation of flashing indicator in hazard warning system button (N72/1s57) via direct line by the front SAM control unit (N10/6)
The upper control panel control unit transmits the following signal:
- Actuation of integrated controls via the LCP LIN to the Audio/COMAND control panel (with code 246 (Analog clock))
- Actuation of hazard warning system button via direct line to the front SAM control unit

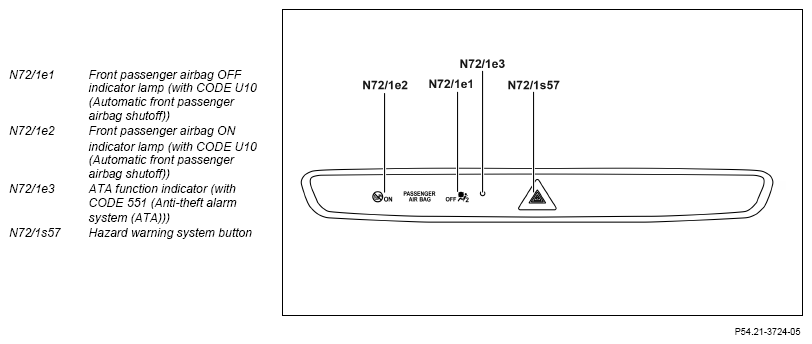

Shown except code 246 (Analog clock)

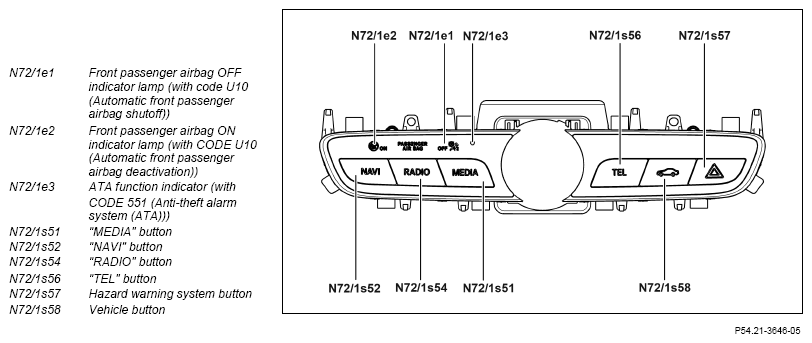

Shown with code 246 (Analog clock)
Body
The following controls are located in the upper control panel control unit:
- "MEDIA" button with code 246 (Analog clock)
- "NAVI" button with code 246 (Analog clock)
- "RADIO" button with code 246 (Analog clock)
- "TEL" button with code 246 (Analog clock)
- Vehicle button with code 246 (Analog clock)
- Hazard warning system button
The following display elements are located in the upper control panel control unit:
- Front passenger airbag OFF indicator lamp (with code U10 (Automatic front passenger airbag shutoff))
- Front passenger airbag ON indicator lamp (with CODE U10 (Automatic front passenger airbag deactivation))
- ATA function indicator (with CODE 551 (Anti-theft alarm system (ATA)))
Variants
The number of buttons and display elements in the upper control panel control unit is dependent on the code conditions listed in the "Design" chapter.
| Wiring diagram for upper control panel control unit | PE54.21-P-2119-97DBA |
