Remove/Install Fuel Pump Control Unit - AR47.20-P-5717MSA
Engine 256.9 in model 213, 238, 257, 290
Engine 264 in model 213, 238, 257
MODIFICATION NOTES
| 17.02.2020 | Document completely revised. |

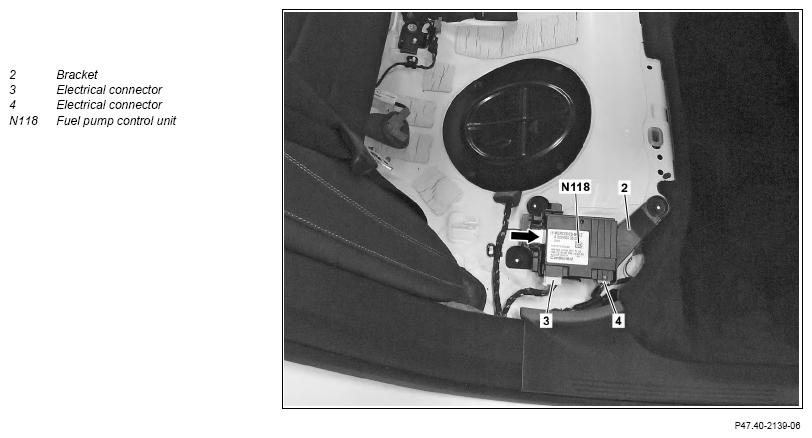

Shown on model 213

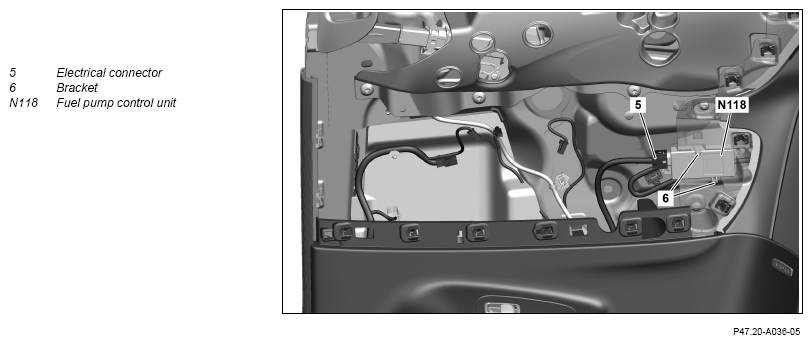

Shown on model 238
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove rear seat cushion. | Engine 256.9, 264 in model 213 with code 248 (Rear seat with integrated child seat) |
AR91.12-P-1020LWA |
| Engine 256.9, 264 in model 213 except code 248 (Rear seat with integrated child seat) Engine 256.9, 264 in model 238 |
AR91.12-P-1020LW | ||
| Engine 256.9 in model 290 except code 568 (3-seater rear bench seat) | AR91.12-P-1021FRX | ||
| Engine 256.9 in model 290 with code 568 (3-seater rear bench seat) Engine 256.9, 264 in model 257 |
AR91.12-P-1021FR | ||
| 2.1 | Fold insulation mat under rear seat cushion to the side. | Engine 256.9 in model 213, 257, 290 Engine 264 in model 213, 257 | |
| 2.2 | Remove top trim from the side in the right rear passenger compartment. | Engine 256.9, 264 in model 238 | AR68.30-P-4783LWO |
| 3.1 | Unclip fuel system control unit (N118) from bracket (2) (arrow). | Engine 256.9 in model 213, 257, 290 Engine 264 in model 213, 257 | |
| 3.2 | Carefully press bracket (6) apart and unclip fuel system control unit (N118) from bracket (2). | Engine 256.9, 264 in model 238 | |
| 4.1 | Release and disconnect electrical connectors (3, 4) on fuel system control unit (N118). | Engine 256.9 in model 213, 257, 290 Engine 264 in model 213, 257 | |
| 4.2 | Release and disconnect electrical connector (5) at fuel system control unit (N118). | Engine 256.9, 264 in model 238 | |
| 5 | Install in the reverse order. | ||
| 6 | Read out and delete fault memory. | ||
| Engine 256.9, 264 in model 213 | AD00.00-P-2000-04B | ||
| Engine 256.9, 264 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 256.9 in model 257, 290 Engine 264 in model 257 | AD00.00-P-2000-06FR | ||
| 7 | Connect vehicle diagnosis system and perform commissioning of fuel system control unit (N118). | When replacing the FSCU (N118). | |
| Engine 256.9, 264 in model 213 | AD00.00-P-2000-04B | ||
| Engine 256.9, 264 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 256.9 in model 257, 290 Engine 264 in model 257 |
AD00.00-P-2000-06FR | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check the engine for proper function. |
