Remove/Install Fuel Pump Control Unit - AR47.20-P-5717OLC
Model 213 with engine 177, 274, 276.8, 642, 654
Model 238 with engine 274, 276.8, 642, 654
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove seat cushion in rear passenger compartment. | Model 213 with engine 177, 274, 276.8, 642, 654 Model 213 with engine 177, 274, 276.8, 642, 654 with code 248 (Rear seat with integrated child seat) |
AR91.12-P-1020LWA |
| Model 213 with engine 177, 274, 276.8, 642, 654 except code 248 (Rear seat with integrated child seat) |
AR91.12-P-1020LW | ||
| 1.2 | Remove right bottom trim to the side in the rear passenger compartment. | Model 238 with engine 274, 276.8, 642, 654 | AR68.30-P-4784LWO |
| 2 | Fold insulation mat under the seat cushion to the side. | Model 213 with engine 177, 274, 276.8, 642, 654 | |

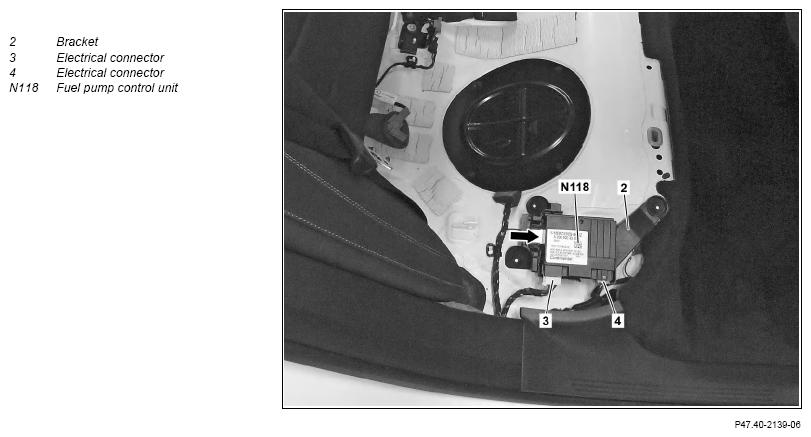

| 3 | Release and disconnect electrical connectors (3, 4) on fuel system control unit (N118). | ||
| 4 | Remove fuel system control unit (N118). | ||
| 5 | Install in the reverse order. | ||
| 6 | Read out and delete fault memory. | ||
| Model 213 with engine 177, 274, 276.8, 642, 654 | AD00.00-P-2000-04B | ||
| Model 238 with engine 274, 276.8, 642, 654 | AD00.00-P-2000-06LWO | ||
| 7 | Connect vehicle diagnosis system and perform commissioning of fuel system control unit (N118). | When replacing the FSCU (N118). | |
| Model 238 with engine 274, 276.8, 642, 654 | AD00.00-P-2000-06LWO | ||
| Model 213 with engine 177, 274, 276.8, 642, 654 | AD00.00-P-2000-04B | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check the engine for proper function. |
