Component Description For Massage Function Control Unit - GF91.25-P-5212FG
Model 213.1
up to model year 2021
with code 406 (Multicontour rear seat)
Model 213
up to model year 2021
With code 432 (Left and right dynamic multicontour seat)
Model 213.1 with code 406 (Rear multicontour seats) With Code 432
Location

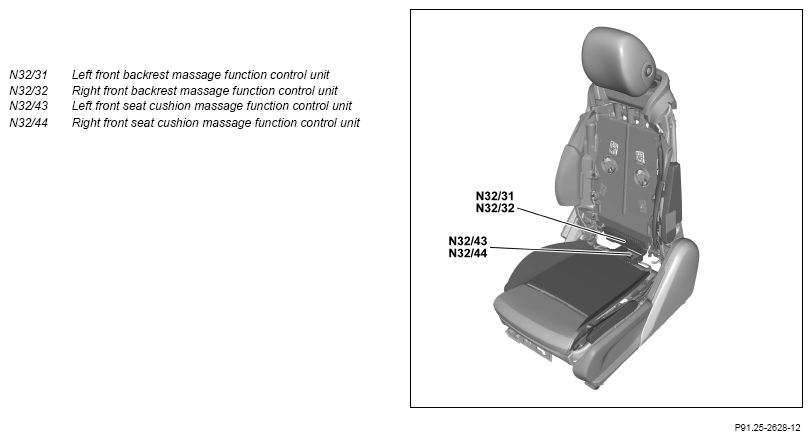

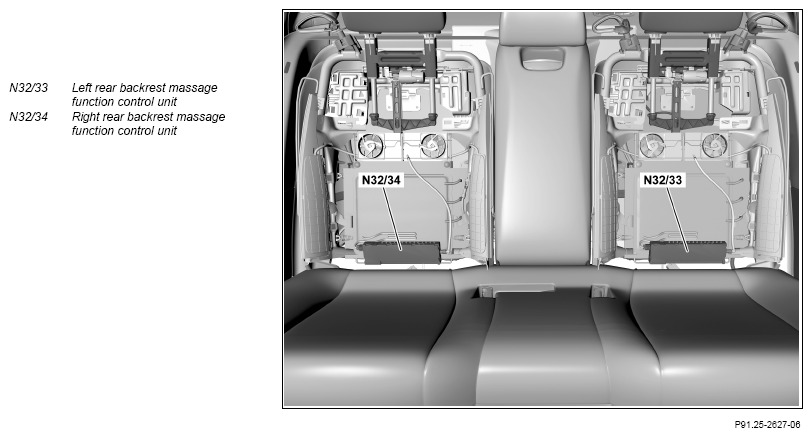

The backrest massage function control unit is located at the bottom in the backrest of the respective seat.
The seat cushion massage function control unit (with code 432 (Left and right dynamic multicontour seat)) is at the back of the seat cushion of the respective seat.
Tasks
The massage function control unit actuates the massage function for each seat according to the request from the following control units:
- Left front dynamic multicontour seat control unit (N32/15) (with CODE 432 (Left and right dynamic multicontour seat))
- Right front dynamic multicontour seat control unit (N32/16) (with CODE 432 (Left and right dynamic multicontour seat)) Left rear multicontour seat control unit (N32/20) (model 213.1 with code 406 (Rear multicontour seats))
- Right rear multicontour seat control unit (N32/21) (model 213.1 with code 406 (Rear multicontour seats))
Body
The massage function control unit includes the followings components
- LIN transceiver
- Control electronics
- Valves
| Left front multicontour seat control unit wiring diagram | Model 213 up to model year 2021 with code 432 (Dynamic seats left and right) | PE91.25-P-2103-97DBA | |
| Right front multicontour seat control unit wiring diagram | Model 213 up to model year 2021 with code 432 (Dynamic seats left and right) | PE91.25-P-2103-97DBB | |
| Wiring diagram for left multicontour seat control unit | Model 213.1 up to model year 2021 with code 406 (Multicontour rear seat) | PE91.25-P-2103-97DBC | |
| Wiring diagram for right multicontour seat control unit | Model 213.1 up to model year 2021 with code 406 (Multicontour rear seat) | PE91.25-P-2103-97DBD |
