Remove/Install Front Seat Backrest Padding - AR91.10-P-0003LWE
Model 205.0/1/2, 213, 253
except code 555 (AMG-Performance Seat)
Model 293
Shown on model 213 with code 866 (Preinstallation for Rear Seat Entertainment system)
Shown on model 213 except code 432 (Left and right dynamic multicontour seat)
Shown on model 213 with code 432 (Left and right dynamic multicontour seat) and with code 401 (Seat climate control for driver and front passenger)
Shown on model 213
| Remove | |||
| 1 | Remove seat backrest trim. | AR91.10-P-1912LW | |
| 2 | Remove head restraint guides. | AR91.16-P-0050LW | |

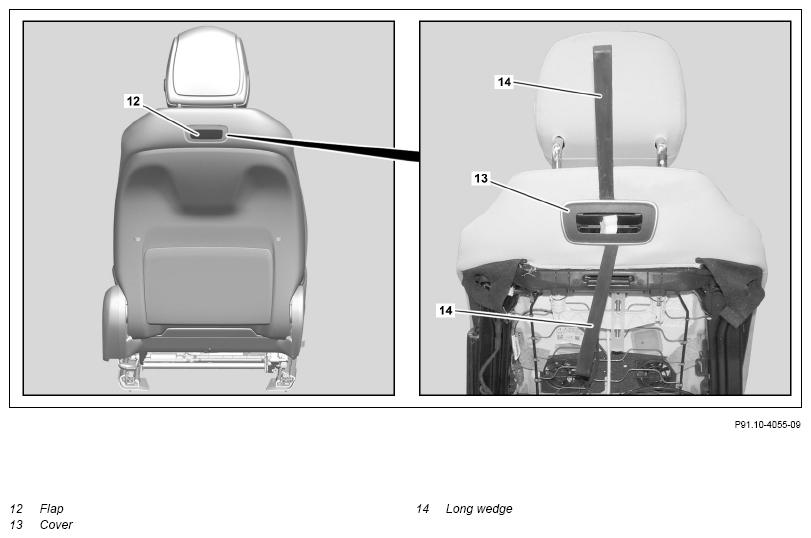

| 3 | Unlock flap (12) with a magnet, open and fix it in such a way that it remains open. | Model 205.0/1/2, 213, 253 with code 866 (Pre-installation for Rear Seat Entertainment System) except code 555 (AMG-Performance Seat) Model 293 with code 866 (Pre-installation for Rear Seat Entertainment System) |
|
| 4 | Position long wedges (14) as shown, release the latch at right and left by applying a suitable screwdriver to the opening and remove the cover (13). | Model 205.0/1/2, 213, 253 with code 866 (Pre-installation for Rear Seat Entertainment System) except code 555 (AMG-Performance Seat) Model 293 with code 866 (Pre-installation for Rear Seat Entertainment System) Position long wedges (14) carefully. Otherwise, the cover (1) may be damaged. |
Fig 2 |

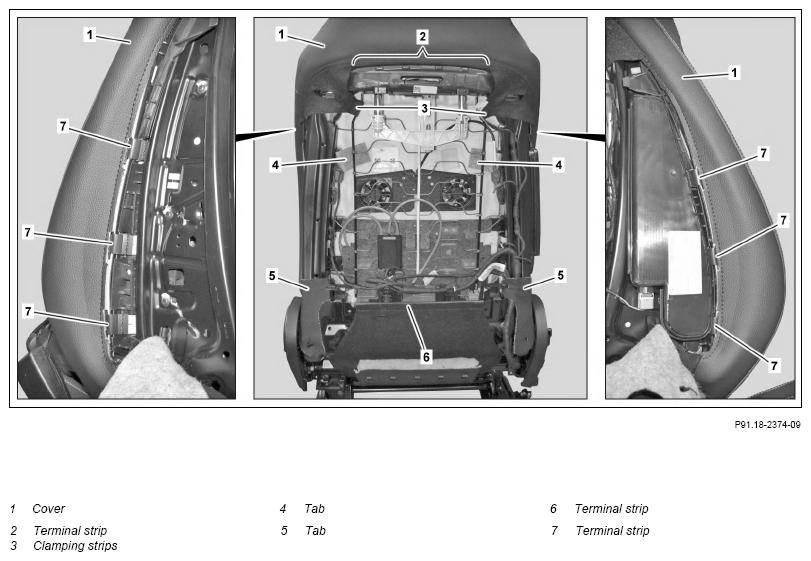

| 5 | Unhook terminal strips (3). | Fig 5 | |
| 6 | Unhook terminal strip (2). | Fig 3 | |
| 7 | Unhook terminal strip (6). | Fig 5 | |
| 8 | Unhook terminal strips (7). | Fig 5 | |
| 9 | Unhook shackles (4) of cover (1). | ||
| 10 | Unhook shackles (5) of cover (1). | ||
| 11 | Disconnect electrical connector of seat backrest seat ventilation motors and expose electric line. | Model 205.0/1/2, 213, 253 with code 401 (Climatised front seats) except code 555 (AMG-Performance Seat) Model 293 with code 401 (Climatised front seats) |
|

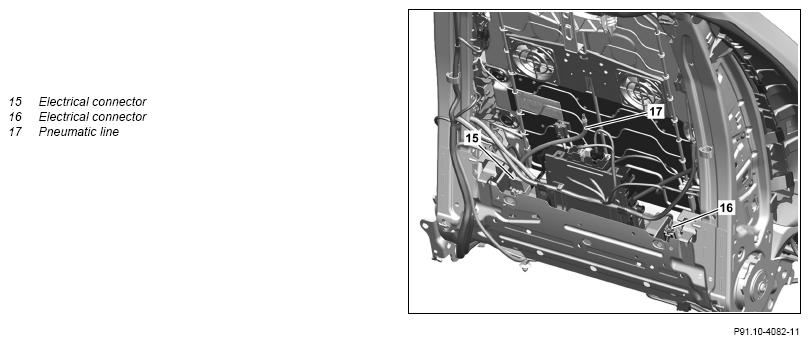

| 12 | Disconnect electrical connector (15), remove from seat backrest frame and expose respective electric line. | Model 205.0/1/2, 213, 253 with code 401 (Climatised front seats) except code 555 (AMG-Performance Seat) Model 205.0/1/2, 213, 253 with code 873 (Left and right driver's seat heating) except code 555 (AMG-Performance Seat) Model 213 with code 902 (Seat heater Plus for driver and front passenger) except code 555 (AMG-Performance Seat) Model 293 with code 401 (Climatised front seats) Model 293 with code 873 (Left and right driver's seat heating) |
|
| 13 | Disconnect electrical connector (16), remove from seat backrest frame and expose respective electric line. | Model 205.0/1/2, 253 with code 409 (Left and right front multicontour seat) except code 555 (AMG-Performance Seat) Model 213 with code 432 (Dynamic seats left and right) except code 555 (AMG-Performance Seat) Model 293 with code 409 (Left and right front multicontour seat) |
|
| 14 | Open and expose pneumatic line (17) at connecting point. | Model 205.0/1/2, 253 with code 409 (Left and right front multicontour seat) except code 555 (AMG-Performance Seat) Model 213 with code 432 (Dynamic seats left and right) except code 555 (AMG-Performance Seat) Model 293 with code 409 (Left and right front multicontour seat) |
|
| 15 | Slip cover (1) forwards in lower area, as shown. | ||

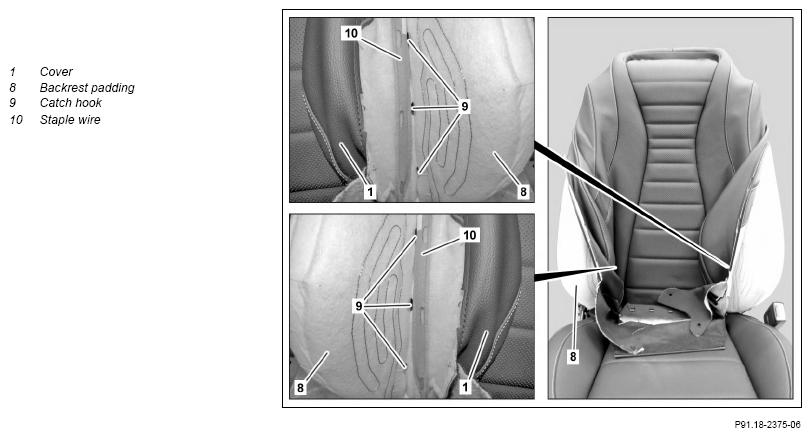

| 16 | Unclip staple wires (10) from catch hooks (9). | Fig 4 | |
| 17 | Remove seat backrest padding (8) with cover (1) from seat backrest frame. | ||
| 18 | Remove seat ventilation motors. | Model 205.0/1/2, 213, 253 with code 401 (Climatised front seats) except code 555 (AMG-Performance Seat) Model 293 with code 401 (Climatised front seats) When replacing seat backrest padding (8). |
AR91.30-P-1900LW |
| 19 | Remove cover (1). | When replacing seat backrest padding (8). Model 205.0/1/2 except code 555 (AMG-Performance Seat) Model 253 except code 555 (AMG-Performance Seat) Model 293 |
AR91.18-P-1820LW |
| Model 213 except code 555 (AMG-Performance Seat) |
AR91.18-P-1822LWE | ||
| Install | |||
| 20 | Attach cutout for universal holder to seat backrest padding (8). | Model 205.0/1/2, 213, 253 with code 866 (Pre-installation for Rear Seat Entertainment System) except code 555 (AMG-Performance Seat) Model 293 with code 866 (Pre-installation for Rear Seat Entertainment System) When replacing seat backrest padding (8). |
AR91.10-P-1120-01LWE |
| 21 | Install new heat mat. | Model 205.0/1/2, 213, 253 with code 401 (Climatised front seats) except code 555 (AMG-Performance Seat) Model 205.0/1/2, 213, 253 with code 873 (Left and right driver's seat heating) except code 555 (AMG-Performance Seat) Model 213 with code 902 (Seat heater Plus for driver and front passenger) except code 555 (AMG-Performance Seat) Model 293 with code 401 (Climatised front seats) Model 293 with code 873 (Left and right driver's seat heating) When replacing seat backrest padding (8). |
AR91.30-P-0014LW |
| 22 | Install cover (1). | When replacing seat backrest padding (8). Model 213 except code 555 (AMG-Performance Seat) |
AR91.18-P-1822LWE |
| Model 205.0/1/2 except code 555 (AMG-Performance Seat) Model 253 except code 555 (AMG-Performance Seat) Model 293 |
AR91.18-P-1820LW | ||
| 23 | Install seat ventilation motors. | Model 205.0/1/2, 213, 253 with code 401 (Climatised front seats) except code 555 (AMG-Performance Seat) Model 293 with code 401 (Climatised front seats) When replacing seat backrest padding (8). |
AR91.30-P-1900LW |
| 24 | Align seat backrest padding (8) with cover (1) on seat backrest frame. | ||
| 25 | Clip staple wires (10) into catch hooks (9). | Fig 4 | |
| 26 | Slip cover (1) rearwards in lower area. | ||
| 27 | Route pneumatic line (17) and connect to connecting point. | Model 205.0/1/2, 253 with code 409 (Left and right front multicontour seat) except code 555 (AMG-Performance Seat) Model 213 with code 432 (Dynamic seats left and right) except code 555 (AMG-Performance Seat) Model 293 with code 401 (Climatised front seats) |
|
| 28 | Route multicontour seat electric line, fix in place on seat backrest frame and connect electrical connector (16). | Model 205.0/1/2, 253 with code 409 (Left and right front multicontour seat) except code 555 (AMG-Performance Seat) Model 213 with code 432 (Dynamic seats left and right) except code 555 (AMG-Performance Seat) Model 293 with code 409 (Left and right front multicontour seat) |
|
| 29 | Route electric line of seat heating, fix in place on seat backrest frame and connect electrical connector (15). | Model 205.0/1/2, 213, 253 with code 401 (Climatised front seats) except code 555 (AMG-Performance Seat) Model 205.0/1/2, 213, 253 with code 873 (Left and right driver's seat heating) except code 555 (AMG-Performance Seat) Model 213 with code 902 (Seat heater Plus for driver and front passenger) except code 555 (AMG-Performance Seat) Model 293 with code 401 (Climatised front seats) Model 293 with code 873 (Left and right driver's seat heating) |
|
| 30 | Route electric line of seat ventilation motors for seat backrest, fix in place and connect its electrical connector. | Model 205.0/1/2, 213, 253 with code 401 (Climatised front seats) except code 555 (AMG-Performance Seat) Model 293 with code 401 (Climatised front seats) |
|
| 31 | Hook in shackles (5) of cover (1). | ||
| 32 | Hook in shackles (4) of cover (1). | ||
| 33 | Hook in terminal strips (7). | Fig 5 | |
| 34 | Hook in terminal strip (6). | Fig 5 | |
| 35 | Hook in terminal strip (2). | Fig 3 | |
| 36 | Hook in terminal strips (3). | Fig 5 | |
| 37 | Install cover (13). | Model 205.0/1/2, 213, 253 with code 866 (Pre-installation for Rear Seat Entertainment System) except code 555 (AMG-Performance Seat) Model 293 with code 866 (Pre-installation for Rear Seat Entertainment System) |
|
| 38 | Install head restraint guides. | AR91.16-P-0050LW | |
| 39 | Install seat backrest trim. | AR91.10-P-1912LW |
