Remove/Install Front Seat Sidebag Unit - AR91.60-P-0695LWX

Model 205, 213, 253, 290

with code 555 (AMG-Performance Seat)

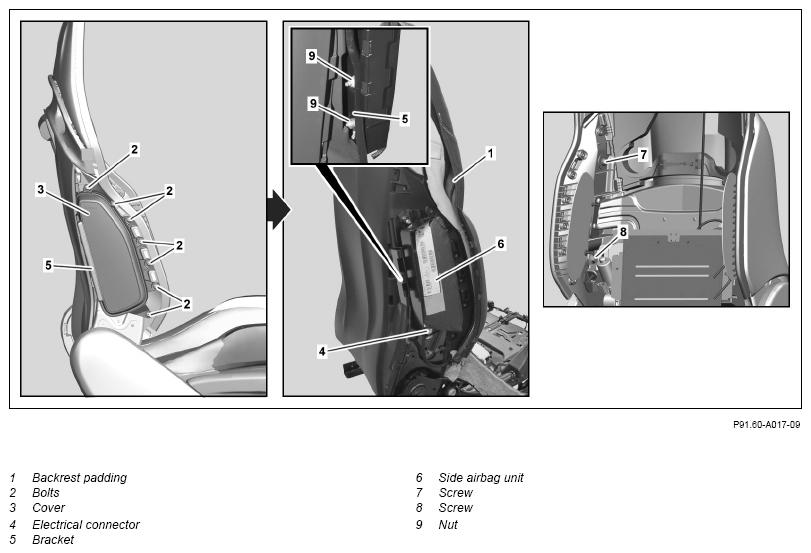

Fig 1: Front Seat Sidebag Unit Components Location - Model 213 With Code 555

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Detach seat backrest padding (1) until the screws (7, 8) are accessible.	Model 290 with code 555 (AMG-Performance Seat)	AR91.10-P-0003FRX
		Model 205, 213, 253 with code 555 (AMG-Performance Seat)	AR91.10-P-0003LWX
2	Unclip side seat cover.	Long wedge	Fig 2
3	Unscrew bolts (2).
4	Unclip cover (3) from holder (5) and remove.
5	Release and disconnect electrical connector (4).	WIS Service Media  multimedia:A supplement to the article is available. Operation steps 5 to 10 are shown here. Removal lever	Fig 3
6	Unscrew bolt (7).
7	Loosen the screw (8).
8	Push holder (5) to one side until the nuts (9) are accessible.
9	Unscrew nuts (9).	Nut, sidebag unit to backrest frame	*BA91.60-P-1006-01O
10	Carefully remove side airbag unit (6).
11	Install in the reverse order
	Check
12	Check Supplemental Restraint System (SRS) using vehicle diagnosis system.	When replacing the side airbag unit (6).
		Model 205, 213, 253 with code 555 (AMG-Performance Seat)	AD00.00-P-2000-04B
		Model 290 with code 555 (AMG-Performance Seat)	AD00.00-P-2000-06FR

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Removal Lever (203 589 04 33 00)

Courtesy of MERCEDES-BENZ USA
