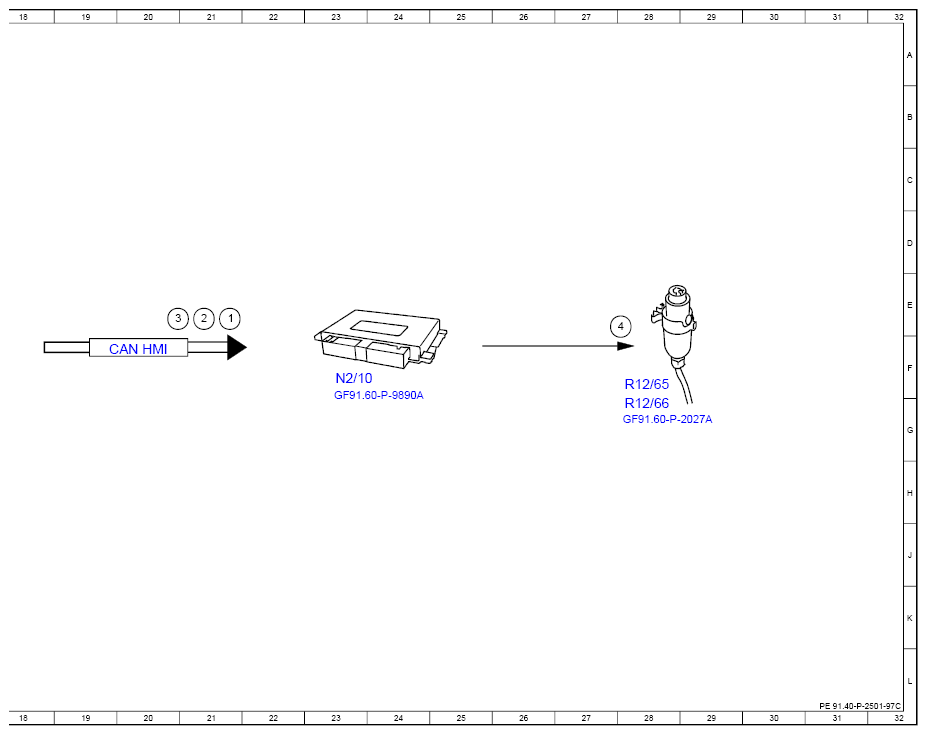

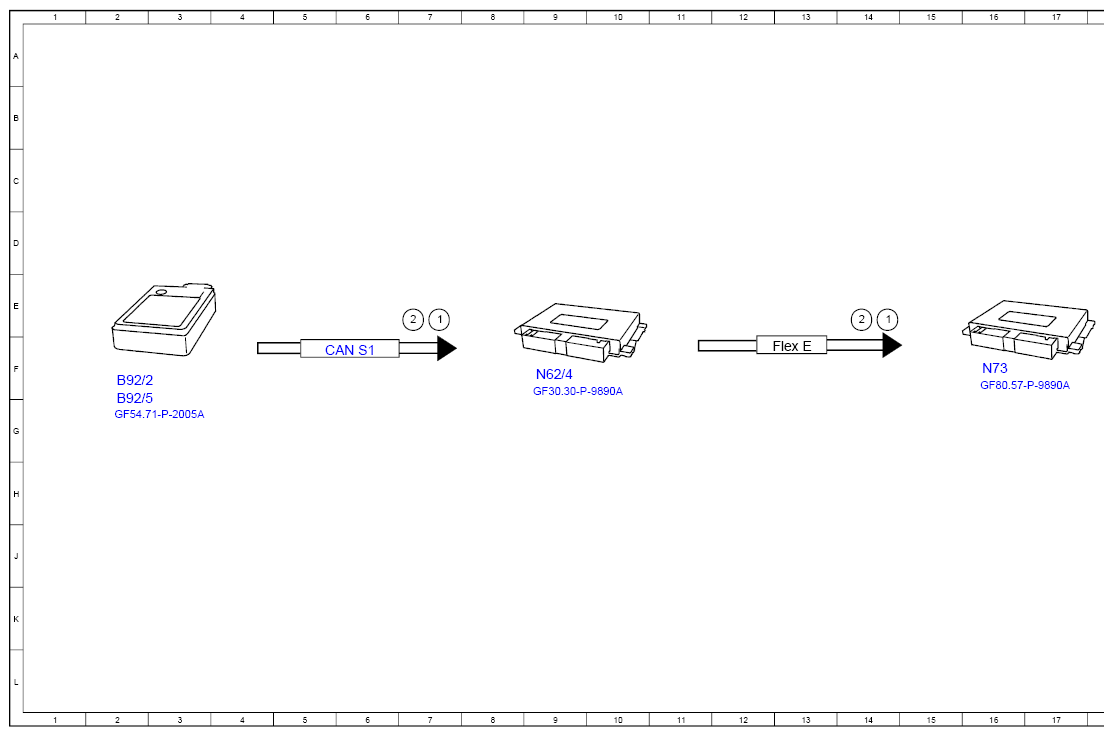

Trigger Preventive Occupant Protection System For Side Impact, Function Schematic - PE91.40-P-2501-97C
Model 213, 257, 290 as of model year 2021 with code 292 (PRE-SAFE® Impulse Side)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Signal, Relative speed to the opposing object. | 7E |
| 1 | Signal, Relative speed to the opposing object. | 14E |
| 1 | Signal, Relative speed to the opposing object. | 21E |
| 2 | Signal, Time to side colission. | 7E |
| 2 | Signal, Time to side colission. | 14E |
| 2 | Signal, Time to side colission. | 21E |
| 3 | Terminal 15, status | 20E |
| 4 | Primer, triggering | 27F |
| B92/2 | Radar sensor bumper, front outer left | 2F |
| B92/5 | Radar sensor bumper at the front right | 2G |
| CAN HMI | User interface-CAN | 20F |
| CAN S1 | Radar CAN in front | 6F |
| Flex E | Chassis FlexRay | 13F |
| N2/10 | Supplemental Restraint System control unit | 23F |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 9F |
| N73 | Electronic ignition lock control unit | 16F |
| R12/65 | PRE-SAFE® Impulse side driver's seat Squib | 28F |
| R12/66 | PRE-SAFE® Impulse side passenger seat Squib | 28G |
