Electric Power Steering Control Unit, Basic Function - GF46.35-P-9890A
Model all (CAR)

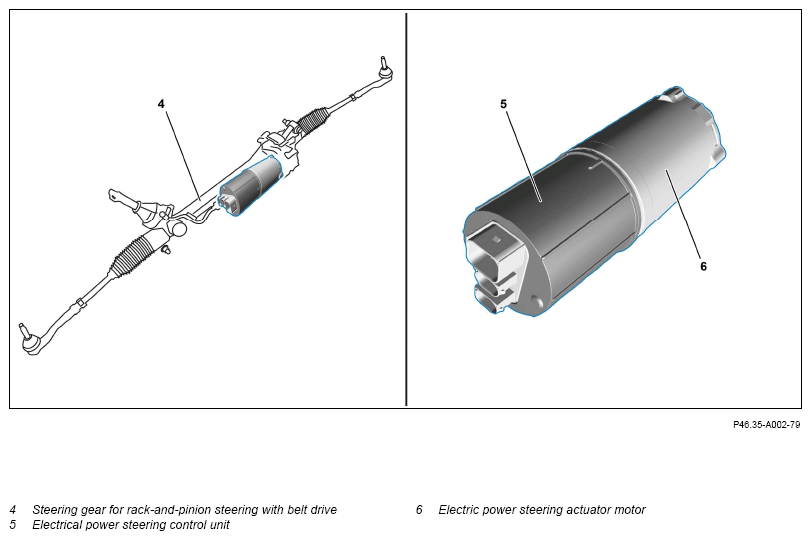

Example illustration

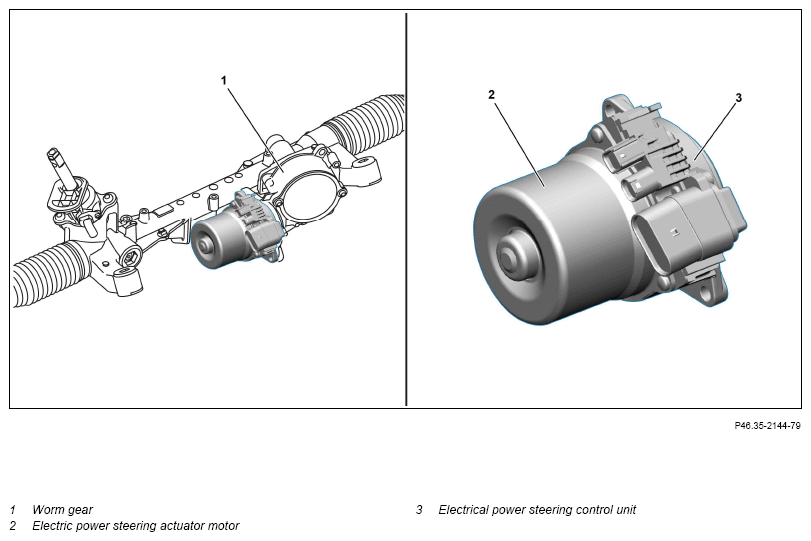

Example illustration
Overview
This document contains information on:
- General
- Function
General
The electric power steering control unit is the central control unit for the steering functions.
Function
The electric power steering control unit engages in the following functions:
- Electronic Stability Program (ESP?)
- Active Park Assist
In order to carry out these functions, the electrical power steering control unit primarily processes the following input factors:
- Steer Assist torque request and wheel speeds
- Engine status, drivetrain operational and engine speed
- Steering wheel angle and steering wheel velocity
- Current status and requested toothed rack position of parking system control unit
The electric power steering control unit processes these input factors and primarily transmits the following actuations:
- Warning message in multifunction display of instrument cluster
- Steering torque, steering wheel velocity and steer assist status to the ESP® control unit
- Electrical power steering control unit, status
- Toothed rack position
The electrical power steering control unit is attached to the rack-and-pinion steering together with the electric power steering actuator motor.
