4Matic Transfer Case, Function - GF28.10-P-1000AVL
Model 213 with transmission 725.096 up to model year 2021

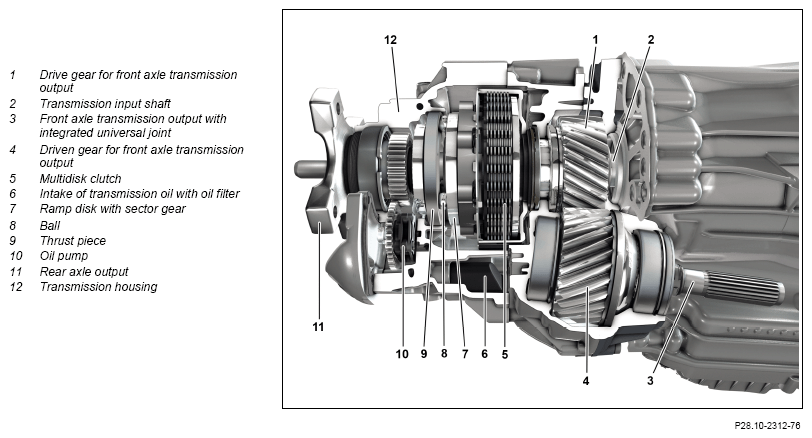

Sectional view of transfer case
4MATIC transfer case, general
The transfer case is mounted onto the transmission housing. What makes it so special is its single-speed front axle transmission output with integrated universal joint (3). Thanks to the single-speed design, a spur gear set with bearing mount is not required. This acts positively on efficiency, weight and the noise characteristics of the drive train.
| Overview of system components, automatically controlled all-wheel drive (4MATIC) | GF28.00-P-9998AVL |
