Overview Of System Components, Automatically Controlled All-Wheel Drive (4Matic) - GF28.00-P-9998AVK
Transmission 725 (except 725.096) in model 213
up to model year 2021
with code M005 (Vehicles with 4MATIC/all-wheel drive)

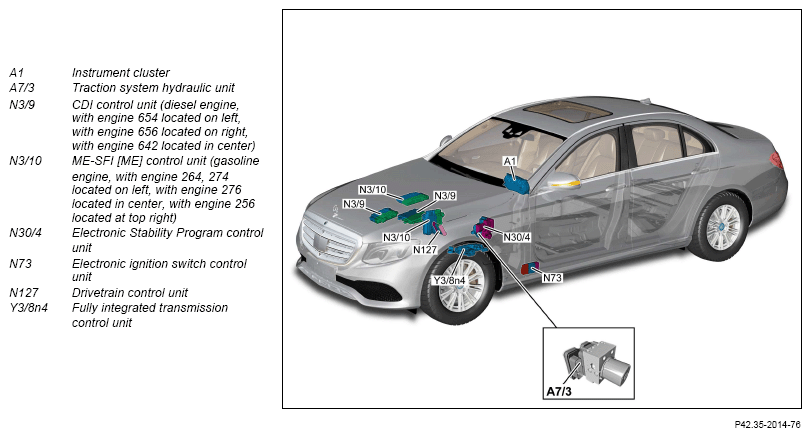

Shown on model 213.0
| Component description for instrument cluster | A1 | GF54.30-P-6000FG | |
| Component description for CDI control unit | Transmission 725 (except 725.096) in model 213 with engine 642.8 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N3/9 | GF07.16-P-6000OGW | |
| Transmission 725 (except 725.096) in model 213 (except 213.016/216) with engine 654.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N3/9 |
GF07.16-P-6000ORC | ||
| Transmission 725 (except 725.096) in model 213 with engine 656.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N3/9 | GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Transmission 725 (except 725.096) in model 213 with engine 256.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N3/10 |
GF07.61-P-6000MRT | |
| Transmission 725 (except 725.096) in model 213 with engine 264.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N3/10 |
GF07.61-P-6000MRG | ||
| Transmission 725 (except 725.096) in model 213 (except 213.050/053/153) with engine 274.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N3/10 |
GF07.61-P-6000MRD | ||
| Transmission 725 (except 725.096) in model 213 with engine 276.8 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N3/10 | GF07.61-P-6000MND | ||
| Component description for Electronic Stability Program control unit | Transmission 725 (except 725.096) in model 213 (except 213.016/050/053/153/216) up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N30/4 | GF42.45-P-5119FG | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FG | |
| Drivetrain control unit, component description | Transmission 725 (except 725.096) in model 213 (except 213.016/216) with engine 654.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725 (except 725.096) in model 213 with engine 642.8 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N127 |
GF54.21-P-2141ORC | |
| Transmission 725 (except 725.096) in model 213 with engine 656.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N127 | GF54.21-P-2141OGS | ||
| Transmission 725 (except 725.096) in model 213 with engine 256.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N127 | GF54.21-P-2141LF | ||
| Transmission 725 (except 725.096) in model 213 with engine 264.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) | GF54.21-P-2141MRP | ||
| Transmission 725 (except 725.096) in model 213 with engine 274.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) | |||
| Transmission 725 (except 725.096) in model 213 with engine 276.8 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N127 | |||
| Component description for fully integrated transmission control unit | Transmission 725.0 (except 725.007/017/096) in model 213 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) Y38n4 | GF27.60-P-5165ANL | |
| Table of contents for function description, automatically controlled all-wheel drive (4MATIC) | GF28.00-P-0999AVK |
