(Remove/Install Transfer Case - AR28.10-P-0100OIH)

Model 213, 238, 257 with engine 654.8 with transmission 725.1 with code M005 (Vehicles with 4MATIC/all-wheel drive)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of accident caused by vehicle starting off on its own when jacked up. Risk of injury caused by rotating parts when working on running engine or drive train.	Ensure that jack stands are standing firmly. An authorized person must occupy the driver's seat. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0008-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on threaded connections with aluminum screws/bolts		AH00.00-P-0006-01RM
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Shift automatic transmission (2) to neutral position.
2	Release parking brake.
3	Secure vehicle on vehicle lift.		AR00.60-P-1006A
4	Remove center and rear lower engine compartment lining.	Model 257 with engine 654.8 with transmission 725.1 with code M005 (Vehicles with 4MATIC/allwheel drive)	AR61.20-P-1105FR
		Model 213, 238 with engine 654.8 with transmission 725.1 with code M005 (Vehicles with 4MATIC/allwheel drive)	AR61.20-P-1105LWE
		Only install center and rear lower rear engine compartment paneling again after leak test.
5	Remove rear propeller shaft.	Model 257 with engine 654.8 with transmission 725.1 with code M005 (Vehicles with 4MATIC/allwheel drive)	AR41.10-P-0050OIB
		Model 213, 238 with engine 654.8 with transmission 725.1 with code M005 (Vehicles with 4MATIC/allwheel drive)	AR41.10-P-0050LW
6	Remove rear engine mounts.	Model 257 with engine 654.8 with transmission 725.1 with code M005 (Vehicles with 4MATIC/allwheel drive)	AR22.10-P-1160OIB
		Model 213, 238 with engine 654.8 with transmission 725.1 with code M005 (Vehicles with 4MATIC/allwheel drive)	AR22.10-P-1160OLC
7	Remove vibration damper (3).	Bolt, vibration damper to transfer case	*BA28.10-P-1008-01G

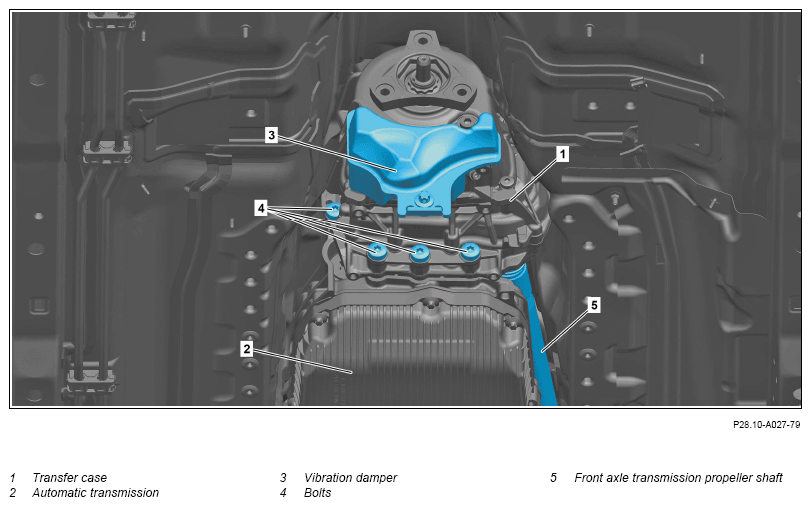

8	Lower automatic transmission (1) until all screws (4) around circumference of transfer case (1) are accessible.
9	Support transfer case (1).
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B

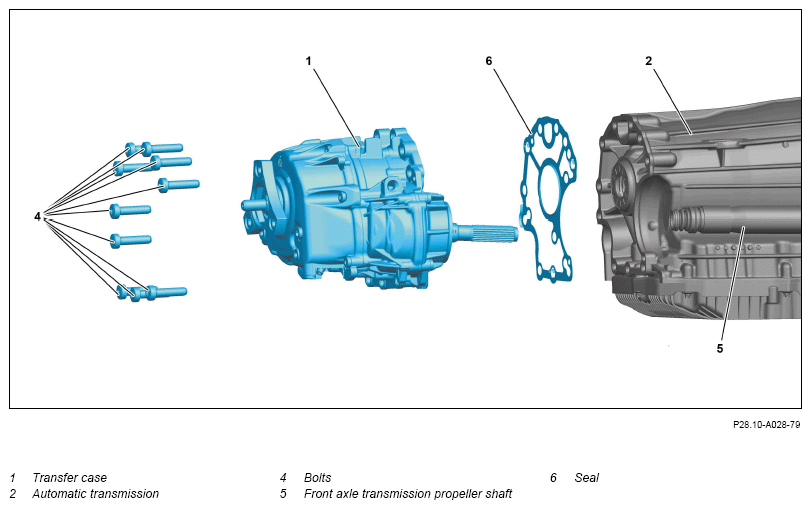

10	Remove screws (4).	Replace screws (4).
		Bolt, transfer case to automatic transmission	*BA28.10-P-1001-01G
11	Remove transfer case (1).	The marking on the power output flange gearing must line up exactly with the marking on the front axle differential propeller shaft (5). Before mounting the transfer case (1), grease the gearing of the automatic transmission's output shaft (2) and the gearing of the power output flange. A second person is required to help with disconnection and connection at the flange of the front axle differential propeller shaft (5).
		Klueber Microlube GNY 202	*BR00.45-Z-1071-06A
12	Check seal (6) for damage.	If damage is found, ↓ Replace seal (6).
13	Install in the reverse order.
	Check
14	Check and correct oil level of transfer case (1).		AR28.10-P-0100-06A
		Oil level sight glass to transfer case	*BA28.10-P-1007-01G
		Drain screw to transfer case	*BA28.10-P-1003-01G
		Transfer case oil	*BF28.10-P-1001-01F
		Assembly cleaner	*BR00.45-Z-1028-04A
		Hand pump	Fig 1
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
15	Perform engine test run and check transfercase (1) for proper operation and leak tightness.
16	Install center and rear lower engine compartment lining.	Model 257 with engine 654.8 with transmission 725.1 with code M005 (Vehicles with 4MATIC/allwheel drive)	AR61.20-P-1105FR
		Model 213, 238 with engine 654.8 with transmission 725.1 with code M005 (Vehicles with 4MATIC/allwheel drive)	AR61.20-P-1105LWE
17	Release vehicle.		AR00.60-P-1006A

Fig 1: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA
