(Remove/Install Transfer Case - AR28.10-P-0100AVG)

Transmission 725.0 (except 725.09) in model 217, 222 with code M005 (Vehicles with 4MATIC/all-wheel drive)

Transmission 725.0 in model 218 with code M005 (Vehicles with 4MATIC/all-wheel drive)

MODIFICATION NOTES

  27.10.2017 Drain screw to transfer case   BA28.10-P-1003-01G
  27.10.2017 Oil-level screw to transfer case   BA28.10-P-1007-01G

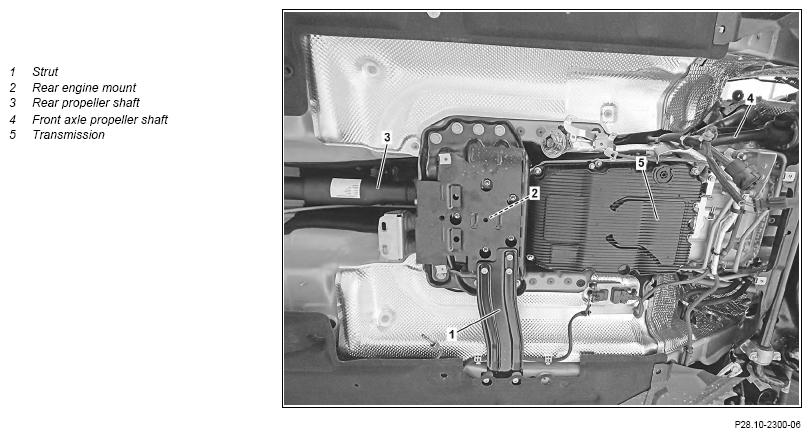

Shown on model 218

G13771502Courtesy of MERCEDES-BENZ USA

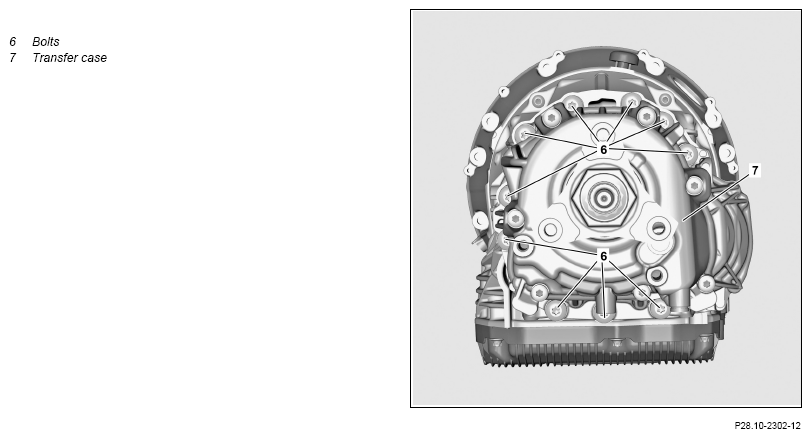

G13771503Courtesy of MERCEDES-BENZ USA

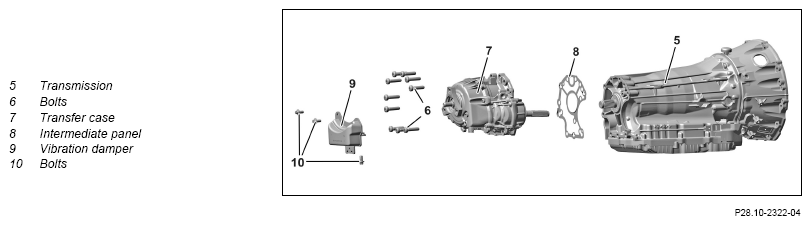

Shown on transmission 725.0 with engine 176

G13771504Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on threaded connections with aluminum screws/bolts   AH00.00-P-0006-01RM
  Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVINGINSTALLING Remove/install
1 Shift transmission (5) to neutral position
2 Release parking brake
3 Secure vehicle on vehicle lift Transmission 725.0 (except 725.09) in model 217, 222 with code M005 (Vehicles with 4MATIC/allwheel drive) AR00.60-P-0100CW
    Transmission 725.0 in model 218 with code M005 (Vehicles with 4MATIC/allwheel drive)
INSTALLATION IMPORTANT Only release vehicle after leak test from vehicle lift.		 AR00.60-P-0100EWS
4.1 Remove center and rear bottom section of soundproofing Transmission 725.0 in model 218 with engine 642 with code M005 (Vehicles with 4MATIC/allwheel drive)
      AR94.30-P-5300EW
    INSTALLATION IMPORTANT Install center and rear bottom section of soundproofing only after leak test.
4.2 Remove center and rear sections of lower engine compartment lining Transmission 725.0 (except 725.09) in model 217, 222
with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 218 with engine 278 with code M005 (Vehicles with 4MATIC/allwheel drive)
    Transmission 725.0 (except 725.09) in model 217, 222 with code M005 (Vehicles with 4MATIC/allwheel drive) AR61.20-P-1105LF
    Transmission 725.0 in model 218 with engine 278 with code M005 (Vehicles with 4MATIC/allwheel drive)
INSTALLATION IMPORTANT Only install center and rear lower rear engine compartment paneling again after leak test.		 AR61.20-P-1105EW
5 Remove holder of rear lower section of soundproofing or rear lower engine compartment lining
6.1 Remove catalytic converters Transmission 725.0 in model 218 with engine 278 with code M005 (Vehicles with 4MATIC/allwheel drive)
      AR49.10-P-7100EL
6.2 Remove center exhaust system Transmission 725.0 in model 218 with engine 642 with code M005 (Vehicles with 4MATIC/allwheel drive)
      AR49.10-P-7100EWI
6.3 Remove the exhaust system Transmission 725.0 in model 217, 222 with engine 176 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 222 with engine 256 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 222 with engine 656 with code M005 (Vehicles with 4MATIC/allwheel drive)
    Transmission 725.0 in model 222 with engine 256 with code M005 (Vehicles with 4MATIC/allwheel drive) AR49.10-P-7142MRT
    Transmission 725.0 in model 217, 222 with engine 176 with code M005 (Vehicles with 4MATIC/allwheel drive) AR49.10-P-7142MNL
    Transmission 725.0 in model 222 with engine 656 with code M005 (Vehicles with 4MATIC/allwheel drive) AR49.10-P-7142OIA
6.4 Remove SCR catalytic converter Transmission 725.0 in model 222 with engine 642 with code M005 (Vehicles with 4MATIC/allwheel drive) with code U77 (Diesel Emission control BLUETEC (SCR))
      AR14.40-P-2006LFD
6.5 Remove right catalytic converter Transmission 725.0 in model 217, 222 with engine 278 with code M005 (Vehicles with 4MATIC/allwheel drive) Transmission 725.0 in model 222 with engine 276.8 with code M005 (Vehicles with 4MATIC/allwheel drive)
      AR49.10-P-5503LF
7 Remove strut (1) Transmission 725.0 in model 218 with engine 642 with code M005 (Vehicles with 4MATIC/allwheel drive)
    TORQUE SPECIFICATION Screw/bolt, strut to rear engine support/longitudinal member *BA22.10-P-1007-03E
8 Remove heat shield behind transmission (5)
9.1 Remove rear propeller shaft (3) from output flange of transfer case (7), slide to rear and shim Transmission 725.0 in model 217, 222 with engine 278 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 218 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 222 with engine 276.8 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 222 with engine 642 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 217, 222 with engine 278 with code M005 (Vehicles with 4MATIC/allwheel drive)		 AR41.10-P-0040-01LF
    Transmission 725.0 in model 222 with engine 276.8 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 222 with engine 642 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 218 with code M005 (Vehicles with 4MATIC/allwheel drive)		 AR41.10-P-0040-01LW
    Transmission 725.0 in model 218 with code M005 (Vehicles with 4MATIC/allwheel drive) WF58.50-P-4110-01A
REFER TO SHOP-MADE TOOLS Drift for releasing the fitting sleeves in the flexible couplings   WF58.50-P-4110-01A
    TORQUE SPECIFICATION Model 222Flexible coupling to transmission or front propeller shaft *BA41.10-P-1001-01J
    TORQUE SPECIFICATION Model 218Propeller shaft at flexible coupling or flexible coupling to transmission *BA41.10-P-1001-01I
    TORQUE SPECIFICATION Model 217Flex disk or joint flange at transmission/rear axle differential or propeller shaft *BA41.10-P-1001-01L
    SPECIAL TOOL Counterholder Fig 2
9.2 Remove rear propeller shaft (3) Transmission 725.0 in model 217, 222 with engine 176 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 222 with engine 256 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 222 with engine 656 with code M005 (Vehicles with 4MATIC/allwheel drive)
      AR41.10-P-0050LF
10 Remove rear engine mount (2) Transmission 725.0 in model 222 with engine 256 with code M005 (Vehicles with 4MATIC/allwheel drive) AR22.10-P-1160MRT
    Transmission 725.0 in model 217 with engine 278 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 222 with engine 276.8 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 222 with engine 278 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 222 with engine 642 with code M005 (Vehicles with 4MATIC/allwheel drive)		 AR22.10-P-1180LF
    Transmission 725.0 in model 218 with engine 278 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 218 with engine 642 with code M005 (Vehicles with 4MATIC/allwheel drive)		 AR22.10-P-1180LF
    Transmission 725.0 in model 217, 222 with engine 176 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 222 with engine 656 with code M005 (Vehicles with 4MATIC/allwheel drive)		 AR22.10-P-1160OIA
11 Remove bolts (10) and remove vibration damper (9) Transmission 725.0 in model 217, 222 with engine 176 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 222 with engine 656 with code M005 (Vehicles with 4MATIC/allwheel drive)

    TORQUE SPECIFICATION Bolt, vibration damper to transfer case *BA28.10-P-1008-01G
12 Lower the transmission (5) until all bolts (6) around the circumference of the transfer case (7) are accessible
13 Support transfer case (7)
REFER TO SPECIAL TOOLS 000 588 10 62 00 Support plate   WS26.00-P-3309B
REFER TO SPECIAL TOOLS 000 588 11 62 00 Major assembly mount   WS01.00-P-0092B
14 Unscrew screws/bolts (6) and remove transfer case (7) INSTALLATION IMPORTANT The marking on the output flange gearing must line up exactly with the marking on the propeller shaft on the front axle (4).
IMPORTANT A second person is required for disconnection and connection at the flange of the propeller shaft on the front axle (4).

    TORQUE SPECIFICATION Bolt, transfer case to automatic transmission *BA28.10-P-1001-01G
15 Check intermediate panel (8) for damage If damage is present
↓
Replace intermediate panel (8).
16 Install in the reverse order
17 Check transmission oil level and correct if necessary Transmission 725.0 (except 725.06/09) in model 217, 218, 222
with code M005 (Vehicles with 4MATIC/allwheel drive)		 AR28.10-P-0100-06A
    FLUID SPECIFICATION Transfer case oil *BF28.10-P-1001-01F
    TORQUE SPECIFICATION Oil level sight glass to transfer case *BA28.10-P-1007-01G
    TORQUE SPECIFICATION Drain screw to transfer case *BA28.10-P-1003-01G
    Assembly cleaner *BR00.45-Z-1028-04A
    SPECIAL TOOL Hand pump Fig 1
WARNING Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
18 Conduct engine test run and check transfer case (7) for proper operation and leak tightness
19.1 Install center and rear bottom section of soundproofing Transmission 725.0 in model 218 with engine 642 with code M005 (Vehicles with 4MATIC/allwheel drive)
      AR94.30-P-5300EW
19.2 Install center and rear sections of lower engine compartment lining Transmission 725.0 (except 725.09) in model 217, 222 with code M005 (Vehicles with 4MATIC/allwheel drive)
Transmission 725.0 in model 218 with engine 278 with code M005 (Vehicles with 4MATIC/allwheel drive)
    Transmission 725.0 (except 725.09) in model 217, 222 with code M005 (Vehicles with 4MATIC/allwheel drive) AR61.20-P-1105LF
    Transmission 725.0 in model 218 with engine 278 with code M005 (Vehicles with 4MATIC/allwheel drive) AR61.20-P-1105EW
20 Disconnect vehicle from vehicle lift Transmission 725.0 (except 725.09) in model 217, 222 with code M005 (Vehicles with 4MATIC/allwheel drive) AR00.60-P-0100CW
    Transmission 725.0 in model 218 with code M005 (Vehicles with 4MATIC/allwheel drive) AR00.60-P-0100EWS
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 218
BA22.10-P-1007-03E Screw/bolt, strut to rear engine support/longitudinal member Nm 25
COMPLETE TRANSFER CASE

Number Designation Model 205, 213, 217, 218, 222, 223, 238, 253, 257, 290 with transmission 725.0/1 with code M005 (Vehicles with 4MATIC/all-wheel drive)
BA28.10-P-1001-01G Bolt, transfer case to automatic transmission Stage 1 Nm 30
Stage 2 ∠° 90
COMPLETE TRANSFER CASE

Number Designation   Model 205, 213, 217, 218, 222, 223, 238, 253, 257, 290 with transmission 725.0/1 with code M005 (Vehicles with 4MATIC/all-wheel drive)
BA28.10-P-1003-01G Drain screw to transfer case Nm 25
COMPLETE TRANSFER CASE

Number Designation   Model 205, 213, 217, 218, 222, 223, 238, 253, 257, 290 with transmission 725.0/1 with code M005 (Vehicles with 4MATIC/all-wheel drive)
BA28.10-P-1007-01G Oil level sight glass to transfer case Nm 11
COMPLETE TRANSFER CASE

Number Designation   Model 205, 213, 217, 218, 222, 223, 238, 253, 257, 290 with transmission 725.0/1 with code M005 (Vehicles with 4MATIC/all-wheel drive)
BA28.10-P-1008-01G Bolt, vibration damper to transfer case Nm 39
PROPELLER SHAFT

Number Designation Model 218
BA41.10-P-1001-01I Propeller shaft at flexible coupling or flexible coupling to transmission Self-locking nut   Nm 68
Direct threaded connection Stage 1 Nm 60
Stage 2 ∠° 90
PROPELLER SHAFT

Number Designation Model 222
BA41.10-P-1001-01J Flexible coupling to transmission or front propeller shaft Self-locking nut   Nm 68
Direct threaded connection Stage 1 Nm 60
Stage 2 ∠° 90
PROPELLER SHAFT

Number Designation Model 217
BA41.10-P-1001-01L Flex disk or joint flange at transmission/rear axle differential or propeller shaft Self-locking nut   Nm 68
Direct threaded connection Stage 1 Nm 60
Stage 2 ∠° 90
COMPLETE TRANSFER CASE

Number Designation Models 205, 213, 217, 218, 222, 238, 253, 257, 290 with transmission 725.0
BF28.10-P-1001-01F Transfer case oil Filling capacity Liter 0, 65
Specification Sheet BB00.40-P-0236-15A
Fig 1: Identifying Hand Pump (210 589 00 71 00)
G13771505Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Counterholder (176 589 00 40 00)
G13771506Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
