(Remove/Install Transfer Case - AR28.10-P-0100OIB)

Transmission 725.0 in model 257 with engine 656 with code M005 (Vehicles with 4MATIC/all-wheel drive)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on threaded connections with aluminum screws/bolts		AH00.00-P-0006-01RM
		Notes on automatic transmission	AH27.19-P-0001-01NKB
	Remove/install
1	Secure vehicle on vehicle lift.		AR00.60-P-0100-01A
		Vehicle hoist securing tool	Fig 3
2	Shift the transmission (5) into neutral position.
3	Release parking brake.
4	Remove exhaust system.		AR49.10-P-7142OIB
5	Remove heat shield behind the transmission (5).

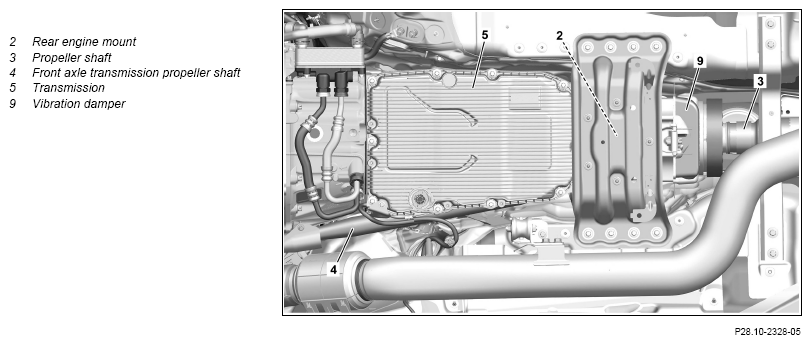

6	Remove propeller shaft (3) from output flange of transfer case (7), slide backward and secure against falling down.		AR41.10-P-0040-01MSA
	Drift for releasing the fitting sleeves in the flexible couplings		WF58.50-P-4110-01A
		Flexible coupling to transmission/rear axle differential or propeller shaft	*BA41.10-P-1001-01M
		Counterholder	Fig 2
7	Remove rear engine mount (2).		AR22.10-P-1160OIB

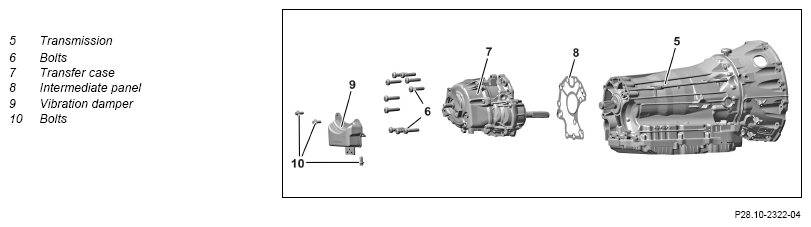

8	Remove screws (10) and remove vibration damper (9).	Bolt, vibration damper to transfer case	*BA28.10-P-1008-01G
9	Support transfer case (7).
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
10	Lower transmission (5) until all screws (6) on the circumference of the transfer case (7) are accessible.

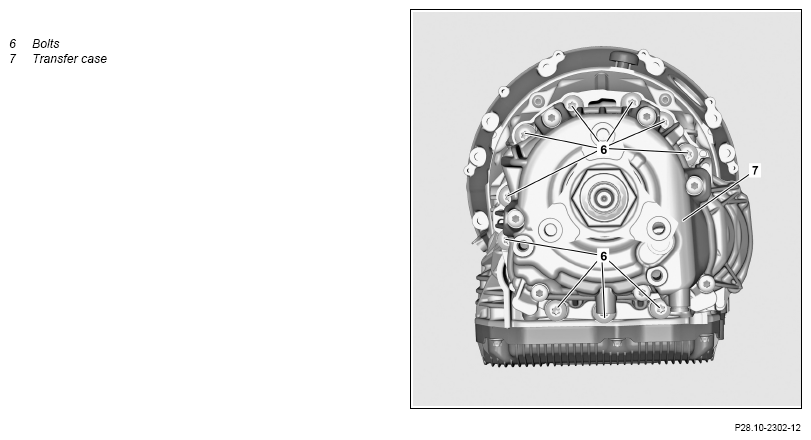

11	Remove screws (6) and remove transfer case (7).	Before mounting the transfer case (7) coat the gearing of the transmission's output shaft (5) with grease. Replace screw/bolts (6). The aid of a second person is required for disconnection and connection at the flange of the front axle propeller shaft (4).
		Klueber Microlube GNY 202	*BR00.45-Z-1071-06A
		Bolt, transfer case to automatic transmission	*BA28.10-P-1001-01G
12	Check intermediate panel (8) for damage.	If damage is found, ↓ Replace intermediate panel (8).
13	Install in the reverse order.
14	Check and correct oil level of transfer case (7).		AR28.10-P-0100-06A
		Transfer case oil	*BF28.10-P-1001-01F
		Oil level sight glass to transfer case	*BA28.10-P-1007-01G
		Drain screw to transfer case	*BA28.10-P-1003-01G
		Assembly cleaner	*BR00.45-Z-1028-04A
		Hand pump	Fig 1
15	Check transfer case (7) for proper operation and leak tightness.
