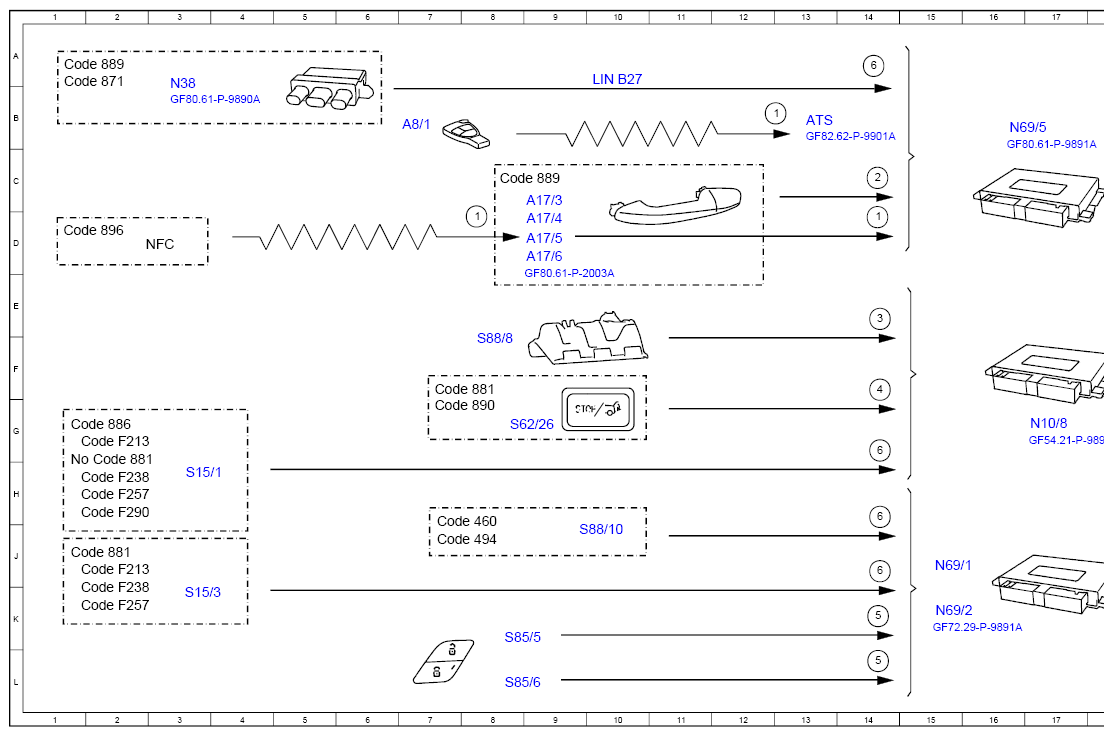

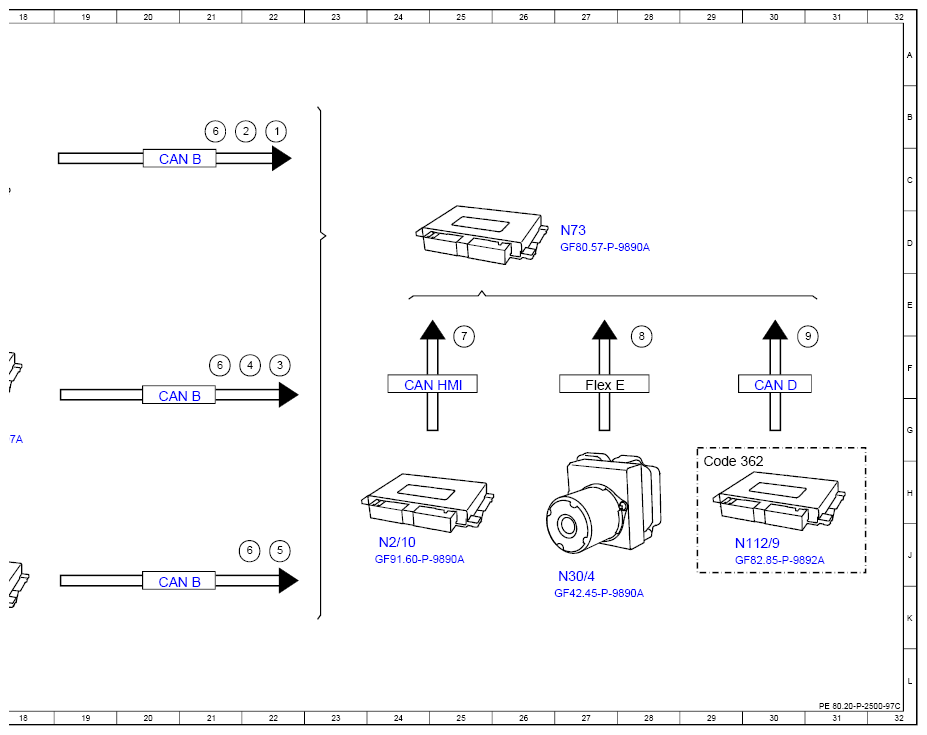

Function Schematic For Central Locking System Activation - PE80.20-P-2500-97C
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Access authorization code, signal | 13B |
| 1 | Access authorization code, signal | 8D |
| 1 | Access authorization code, signal | 14C |
| 1 | Access authorization code, signal | 12B |
| 2 | Door handle KEYLESS-GO, Status | 14C |
| 2 | Door handle KEYLESS-GO, Status | 22B |
| 3 | External actuation switch, trunk lid / tailgate, status | 14E |
| 3 | External actuation switch, trunk lid / tailgate, status | 22F |
| 4 | Trunk lid / tailgate control button, status | 14G |
| 4 | Trunk lid / tailgate control button, status | 22F |
| 5 | Inside switch central | Front door lock, status | 14L |
| 5 | Inside switch central | Front door lock, status | 14L |
| 5 | Inside switch central | Front door lock, status | 22J |
| 6 | Open trunk lid / tailgate, request | 14A |
| 6 | Open trunk lid / tailgate, request | 14K |
| 6 | Open trunk lid / tailgate, request | 14J |
| 6 | Open trunk lid / tailgate, request | 14J |
| 6 | Open trunk lid / tailgate, request | 21F |
| 6 | Open trunk lid / tailgate, request | 22L |
| 6 | Open trunk lid / tailgate, request | 21C |
| 7 | Crash, Signal | 25E |
| 8 | Vehicle speed, signal | 27E |
| 9 | Unlock / lock central locking, request | 30E |
| A17/3 | Door handle KEYLESS-GO at the rear left | 9C |
| A17/4 | KEYLESS-GO door handle, rear right | 9D |
| A17/5 | Door handle KEYLESS-GO driver's door | 9D |
| A17/6 | Door handle KEYLESS-GO driver's door | 9D |
| A8/1 | Transmitter key | 7B |
| ATS | Antenna system | 13B |
| CAN B | Interior CAN | 20G |
| CAN B | Interior CAN | 20K |
| CAN B | Interior CAN | 20C |
| CAN D | Diagnose-CAN | 30F |
| CAN MM] | User interface-CAN | 24F |
| Code 362 | HERMES LTE | 29H |
| Code 460 | Canada version | 7J |
| Code 494 | USA- version | 7J |
| Code 871 | Sensors for trunk lid opening / closing | 1A |
| Code 881 | Trunk lid / tailgate control | 7F |
| Code 881 | Trunk lid / tailgate control | 1J |
| Code 881 | Trunk lid / tailgate control | 2H |
| Code 886 | Rear lid remote opening (HDF) | 1G |
| Code 889 | KEYLESS-GO | 8C |
| Code 889 | KEYLESS-GO | 1A |
| Code 890 | Automatic rear wall door | 7G |
| Code 896 | Vehicle access and driving authorization via mobile phone | 1D |
| Code F213 | Series 213 | 1J |
| Code F213 | Series 213 | 1G |
| Code F238 | Series 238 | 1K |
| Code F238 | Series 238 | 1H |
| Code F257 | Series 257 | 1K |
| Code F257 | Series 257 | 1H |
| Code F290 | Series 290 | 1H |
| Flex E | Chassis FlexRay | 27F |
| LIN B27 | KEYLESS-GO LIN | 10A |
| N10/8 | Rear SAM control unit | 17G |
| N112/9 | HERMES control unit | 30J |
| N2/10 | Supplemental Restraint System control unit | 24J |
| N30/4 | Electronic stability program control unit | 27J |
| N38 | Rear switch module | 3B |
| N69/1 | Left front door control unit | 15J |
| N69/2 | Right front door control unit | 15K |
| N69/5 | KEYLESS-GO control unit | 16B |
| N73 | Electronic ignition lock control unit | 27D |
| S15/1 | Trunk lid release button | 3H |
| S15/3 | Driver trunk lid / tailgate control button | 3K |
| S62/26 | Trunk lid / tailgate control button | 8G |
| S85/5 | Inside switch central | Front door lock on the left | 8K |
| S85/6 | Inside switch central | Locking front door on the right | 8L |
| S88/10 | Trunk lid emergency opening switch | 10J |
| S88/8 | External actuation switch for trunk lid / tailgate | 8F |
