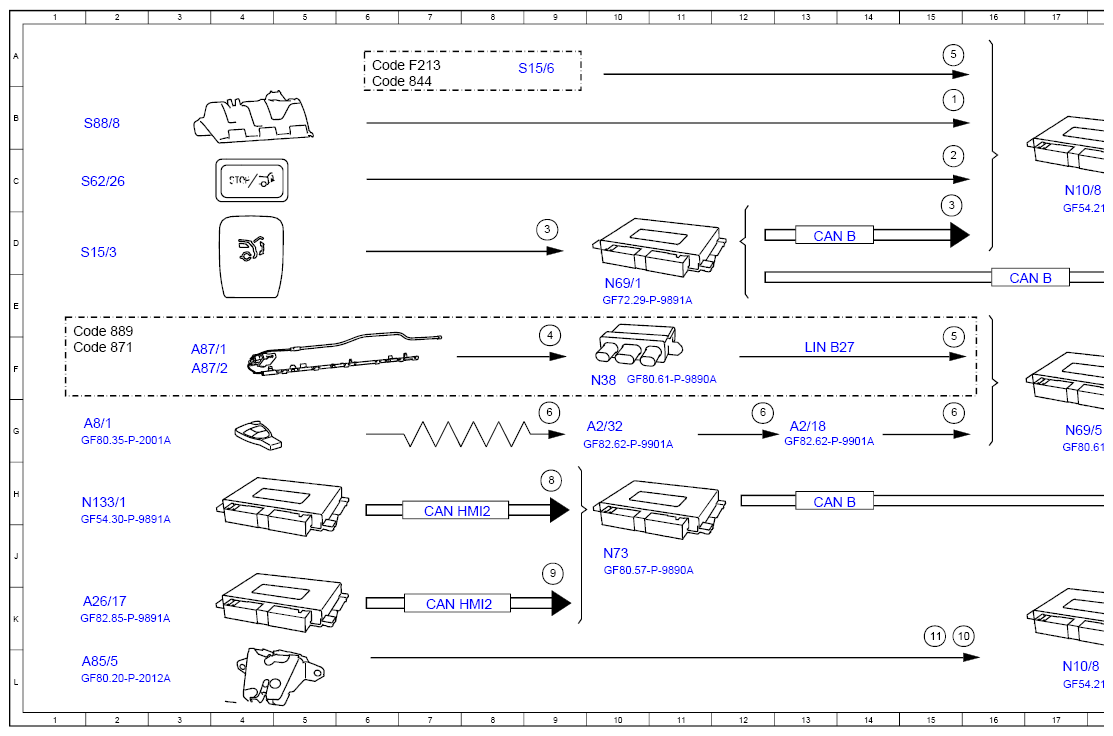

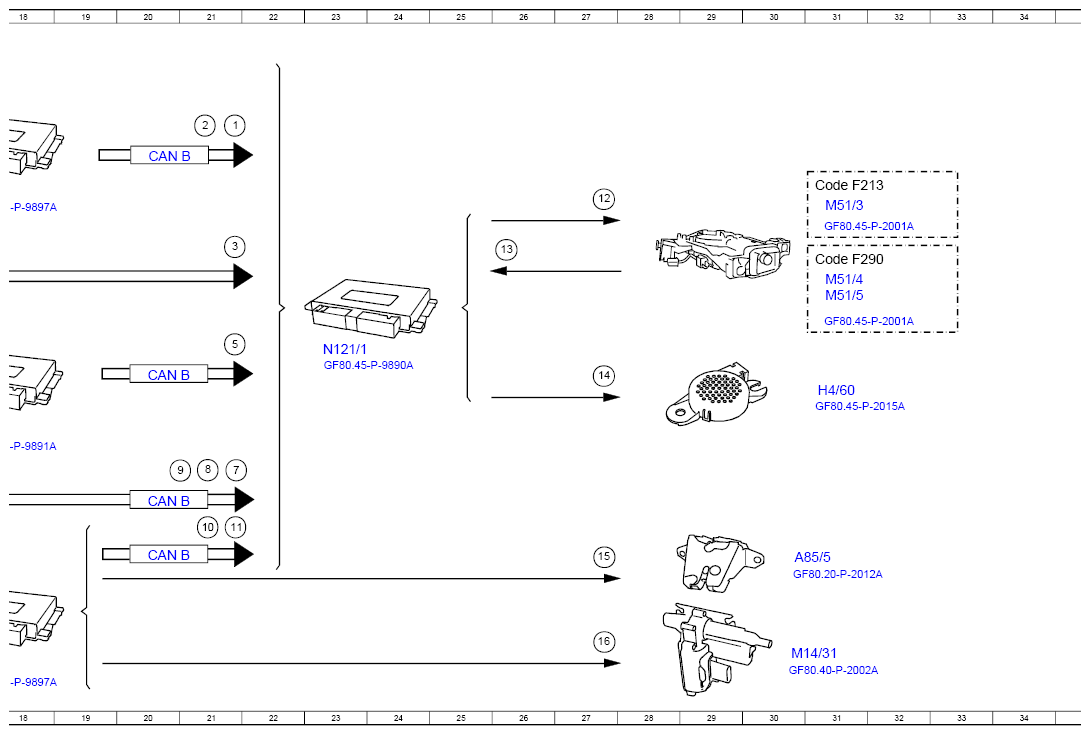

Function Schematic For Liftgate Control - PE80.45-P-2502-97C
Model 213.2, 290 as of model year 2021 with code 890 (Automatic rear-end door)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Microswitch external operation, status | 15B |
| 1 | Microswitch external operation, status | 21B |
| 10 | Switch for latching trunk lid / trunk lid lock, status | 16L |
| 10 | Switch for latching trunk lid / trunk lid lock, status | 21J |
| 11 | Switch main detent trunk lid / trunk lid lock, status | 22J |
| 11 | Switch main detent trunk lid / trunk lid lock, status | 15L |
| 12 | Drive unit tailgate control, activation | 27C |
| 13 | Hall effect sensor, Signal | 26D |
| 14 | Warning buzzer, activation | 27F |
| 15 | Engine trunk lid / tailgate lock, control | 27J |
| 16 | Tailgate closing element, activation | 27L |
| 2 | Trunk lid / tailgate control button, status | 15C |
| 2 | Trunk lid / tailgate control button, status | 21B |
| 3 | Driver trunk lid / tailgate control button, status | 9D |
| 3 | Driver trunk lid / tailgate control button, Status | 15D |
| 3 | Driver trunk lid / tailgate control button, Status | 21E |
| 4 | Rear sensor switch module, signal | 9F |
| 5 | Open trunk lid / tailgate, request | 21F |
| 5 | Open trunk lid / tailgate, request | 15A |
| 5 | Open trunk lid / tailgate, request | 15E |
| 6 | Access authorization code, signal | 9G |
| 6 | Access authorization code, signal | 15G |
| 6 | Access authorization code, signal | 12G |
| 7 | Terminal 15, status | 21G |
| 8 | Displayed vehicle speed, signal | 9H |
| 8 | Displayed vehicle speed, signal | 21H |
| 9 | Opening angle limitation, request | 9K |
| 9 | Opening angle limitation, request | 21H |
| A2/18 | Antenna amplifiers FM, AM, ZV, DAB and KEYLESS-GO | 13G |
| A2/32 | Rear window antenna | 10G |
| A26/17 | Headunit | 2K |
| A8/1 | Transmitter key | 2G |
| A85/5 | Trunk lid / tailgate lock | 1L |
| A85/5 | Trunk lid / tailgate lock | 30J |
| A87/1 | Upper sensor, rear switch module | 3F |
| A87/2 | Sensor lower rear switch module | 3F |
| CAN B | Interior CAN | 13D |
| CAN B | Interior CAN | 16E |
| CAN B | Interior CAN | 20C |
| CAN B | Interior CAN | 20F |
| CAN B | Interior CAN | 20J |
| CAN B | Interior CAN | 13H |
| CAN B | Interior CAN | 20H |
| CAN HM12 | User interface-CAN 2 | 7H |
| CAN HM12 | User interface-CAN 2 | 7K |
| Code 844 | Folding bench in the cargo area | 6A |
| Code 871 | Sensors for trunk lid opening / closing | 1F |
| Code 889 | KEYLESS-GO | 1E |
| Code F213 | Series 213 | 6A |
| Code F213 | Series 213 | 31C |
| Code F290 | Series 290 | 31D |
| H4/60 | Warning buzzer trunk lid / tailgate control | 31F |
| LIN B27 | KEYLESS-GO LIN | 13F |
| M14/31 | Visual element, trunk lid / tailgate | 30L |
| M51/3 | Drive unit trunk lid / tailgate control | 31C |
| M51/4 | Right tailgate control drive unit | 31E |
| M51/5 | Left Drive unit tailgate control | 31E |
| N10/8 | Rear SAM control unit | 17C |
| N10/8 | Rear SAM control unit | 17L |
| N121/1 | Trunk lid / tailgate control unit | 23F |
| N133/1 | Control unit instrument cluster | 2H |
| N38 | Rear switch module | 10F |
| N69/1 | Left front door control unit | 10E |
| N69/5 | KEYLESS-GO control unit | 17G |
| N73 | Electronic ignition lock control unit | 10J |
| S15/3 | Driver trunk lid / tailgate control button | 1D |
| S15/6 | Tailgate release switch, 3rd row of seats | 9A |
| S62/26 | Trunk lid / tailgate control button | 1C |
| S88/8 | External actuation switch for trunk lid / tailgate | 2B |
