(Component Description For ME-SFI (ME) Control Unit) - GF07.61-P-6000MRP)
Engine 274.9 in model 213.050/053/153 up to model year 2021

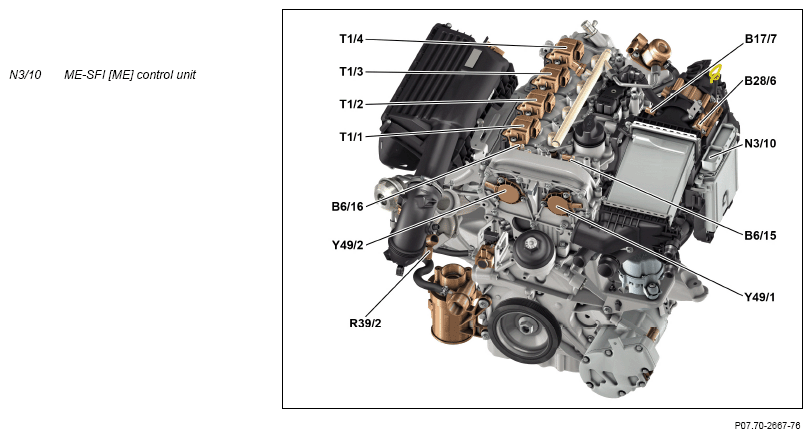

Engine top front view
Location
The ME-SFI [ME] control unit is located on the side left on engine below the charge air cooler.
Task
The ME-SFI [ME] control unit fulfills the following tasks:
- Controlling the engine basic functions
- Reading in of signals
- Evaluation of input factors
- Output of signals and actuation of components
The ME-SFI [ME] control unit also acts as an interface (Gateway) between the attached CAN bus systems.
Controlling the engine basic functions
- Ignition ON
- Start
- Ignition OFF
- Fuel supply
- Injection control
- Ignition system
- Synchronization of injection and firing order
- Start, post-start phase and warm-up enrichment
- Engine speed control
- Alternator interface
- Lambda control
- Smooth running control
- Heat management
- Torque coordination
- Inertia fuel shutoff
- Knock sensor system
- Camshaft adjustment
- Engine limp-home mode
- European On-Board Diagnosis
- Automatic engine start/engine stop
- Charging
- Exhaust treatment
- Electronic accelerator
- Refueling intention detection (with code 494 (USA version))
- Capturing fueling gases (with code 494 (USA version))
- Purge control
- Purge system with leak test (with code 494 (USA version))
Reading in of signals
The input factors are read in via the following connections:
- Direct line
- Drive-LIN (LIN C1)
- Engine CAN (CAN C)
- Drive train CAN (CAN C1)
Evaluation of input factors
The input factors that have been read in are evaluated by the integral microprocessor, and the relevant assembly parts are actuated.
Output of signals and actuation of components
The initial parameters are output via the following connections:
- Direct line
- Drive train LIN
- Engine CAN
- Drive train CAN
The electronic ignition lock control unit (N73) is the central interface (gateway) for exchanging the function-relevant data of the control units that are connected to the various CAN bus systems. The input factors and initial parameters for the following component parts are read in or output via direct lines by the ME-SFI [ME] control unit and are needed by the engine management system:
| Input factors over a direct line from | Output factors over a direct line to | Supplemental information |
|---|---|---|
| Terminal 15 | - | - |
| Circuit 30 (fused) | - | - |
| Circuit 31 | - | - |
| Circuit 87M4 | - | - |
| Knock sensor 1 (A16/1) | - | - |
| Knock sensor 2 (A16/2) | - | - |
| - | Fuel tank diagnostic module pump (A101m1) | With CODE 494 (USA version) |
| - | Fuel tank diagnostic module heating element (A101r1) | With CODE 494 (USA version) |
| - | Fuel tank diagnostic module solenoid valve (A101y1) | With CODE 494 (USA version) |
| Purging pressure sensor (B4/4) | - | With CODE 494 (USA version) |
| Fuel pressure and temperature sensor (B4/25) | - | - |
| Fuel tank pressure sensor 1 (B4/48) | - | With CODE 494 (USA version) |
| Fuel tank pressure sensor 2 (B4/49) | - | With CODE 494 (USA version) |
| Intake camshaft Hall sensor (B6/15) | - | - |
| Exhaust camshaft Hall sensor (B6/16) | - | - |
| Coolant temperature sensor (B11/4) | - | - |
| Charge air temperature sensor upstream of throttle valve (B17/7) | - | - |
| Charge air temperature sensor downstream of throttle valve (B17/9) | - | - |
| Pressure sensor upstream of throttle valve (B28/6) | - | - |
| Pressure sensor downstream of throttle valve (B28/7) | - | - |
| Pressure sensor downstream of air filter (B28/11) | - | - |
| Crankshaft Hall sensor (B70) | - | - |
| Gasoline particulate filter differential pressure sensor (B163/3) | - | With code 598 (Gasoline particulate filter (OPF) with sensor system) |
| Temperature sensor upstream of gasoline particulate filter (B163/4) | - | With code 598 (Gasoline particulate filter (OPF) with sensor system) |
| Oxygen sensor downstream of catalytic converter (G3/1) | - | - |
| Oxygen sensor, sensor element downstream of catalytic converter (G3/1b1) | - | - |
| - | Oxygen sensor heater downstream of catalytic converter (G3/1r1) | - |
| Oxygen sensor upstream of catalytic converter (G3/2) | - | - |
| Oxygen sensor, sensor element upstream of catalytic converter (G3/2b1) | - | - |
| - | Oxygen sensor heater upstream of catalytic converter (G3/2r1) | - |
| Throttle valve actuator (M16/6) | - | - |
| - | Throttle valve actuator motor (M16/6m1) | - |
| Actual value potentiometer 1 (M16/6r1), throttle valve | - | - |
| Actual value potentiometer 2 (M16/6r2), throttle valve | - | - |
| - | Electric coolant pump (M75/11) | - |
| Supplemental Restraint System control unit (N2/10) | - | - |
| Engine compartment circuit 15 relay (K40/8kG) | - | - |
| - | Starter circuit 50 relay (K40/8kH) | - |
| - | Circuit 87M relay (K40/8kN) | - |
| - | Fuel system control unit (N118) | - |
| - | Wide open throttle operation vent line heater element (R39/2) | - |
| - | Coolant thermostat heating element (R48) | - |
| Oil level check switch (S43) | - | - |
| Vent line contact switch (S88/5) | - | - |
| - | Cylinder 1 ignition coil (T1/1) | - |
| - | Cylinder 2 ignition coil (T1/2) | - |
| - | Cylinder 3 ignition coil (T1/3) | - |
| - | Cylinder 4 ignition coil (T1/4) | - |
| - | Intake camshaft solenoid (Y49/1) | - |
| - | Exhaust camshaft solenoid (Y49/2) | - |
| - | Purging switchover valve (Y58/1) | - |
| - | Partial load operation crankcase ventilation system valve (Y58/2) | - |
| - | Fuel tank shutoff valve (Y58/5) | With CODE 494 (USA version) |
| - | Fuel vapor shutoff valve (Y75/1) | With CODE 494 (USA version) |
| - | Cylinder 1 fuel injector (Y76/1) | - |
| - | Cylinder 2 fuel injector (Y76/2) | - |
| - | Cylinder 3 fuel injector (Y76/3) | - |
| - | Cylinder 4 fuel injector (Y76/4) | - |
| - | Boost pressure control pressure transducer (Y77/1) | - |
| - | Quantity control valve (Y94) | - |
| - | Deceleration air switchover valve (Y101) | - |
| - | Engine oil pump valve (Y130) | - |
Input factors and initial parameters for the following component parts and control units are transmitted or received by the ME-SFI [ME] or CDI control unit via the LIN or CAN and are needed by the engine management system:
| Input factors over engine CAN (CAN C) from | Initial parameters over engine CAN (CAN C) to | Supplemental information |
|---|---|---|
| Instrument cluster (A1) | Instrument cluster (A1) | Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Supplemental Restraint System control unit (N2/10) | - | Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Front SAM control unit (N10/6) | - | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Left front door control unit (N69/1) | - | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Electronic ignition lock control unit (N73) | Electronic ignition lock control unit (N73) | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Battery management system control unit (N82/2) | - | Via the HYBRID-CAN (CAN L) and over the powertrain control unit (N127) |
| Powertrain control unit (N127) | Powertrain control unit (N127) | - |
| Power electronics control unit (N129/1) | Power electronics control unit (N129/1) | Via the HYBRID-CAN (CAN L) and over the powertrain control unit (N127) |
| Diagnostics connection (X11/4) | Diagnostics connection (X11/4) | Via diagnostic CAN (CAN D), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Input factors over drive CAN (CAN C1) from | Initial parameters over drive CAN (CAN C1) to | Supplemental information |
|---|---|---|
| Instrument cluster (A1) | Instrument cluster (A1) | Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Climate control, control unit (N22/1) | - | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Electronic Stability Program control unit (N30/4) | - | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| AIR BODY CONTROL, control unit (N51/3) (with code 489 (AIR BODY CONTROL)) | - | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| DISTRONIC Distance Pilot controller unit (A108/1) (with code 239 (DISTRONIC PLUS)) | - | Via suspension FlexRay (Flex E), Electronic Stability Program control unit (N30/4) and powertrain control unit (N127) |
| Mercedes-Benz Intelligent Drive control unit (N62/4) (with code 23P (Driving assistance package plus)) | - | Via suspension FlexRay (Flex E), Electronic Stability Program control unit (N30/4) and powertrain control unit (N127) |
| Steering column tube module control unit (N80) | - | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Fuel system control unit (N118) | Fuel system control unit (N118) | - |
| Powertrain control unit (N127) | Powertrain control unit (N127) | - |
| Fully integrated transmission control unit (Y3/8n4) | Fully integrated transmission control unit (Y3/8n4) | - |
Structure
The ME-SFI [ME] control unit housing is made out of diecast aluminum and the cover is made out corrosion-protected sheet steel. The ME-SFI [ME] control unit is water and dust protected.
The inside contains the 32-bit measuring and control electronics for the engine management.
Voltage supply
The ME-SFI [ME] control unit is supplied with voltage from "circuit 30 secured" and also with ignition ON from "circuit 87 M4".
In the control voltage range, it has both short-circuit protection and reversed polarity protection.
Power is supplied through several engaged parallel pins connected in parallel to relieve the electrical connections.
Ground connection
The "circuit 31" ground connection is made via several ground lines to the left major assembly compartment electronics ground point (W16/5).
Variants
The engine management variants, such as country and exhaust variants, are activated via variant coding.
Exchange of the ME-SFI [ME] control unit is not necessary.
| Wiring diagram for gasoline-DI control unit | Engine 274.9 in model 213.050/053/153 up to model year 2021 Engine side | PE07.08-P-2101-97DBA | |
| Engine 274.9 in model 213.050/053/153 up to model year 2021 Vehicle side | PE07.08-P-2101-97DBB |
