Component Description For ME-SFI (ME) Control Unit - GF07.61-P-6000MND
Engine 276.8 in model 213, 238 up to model year 2021

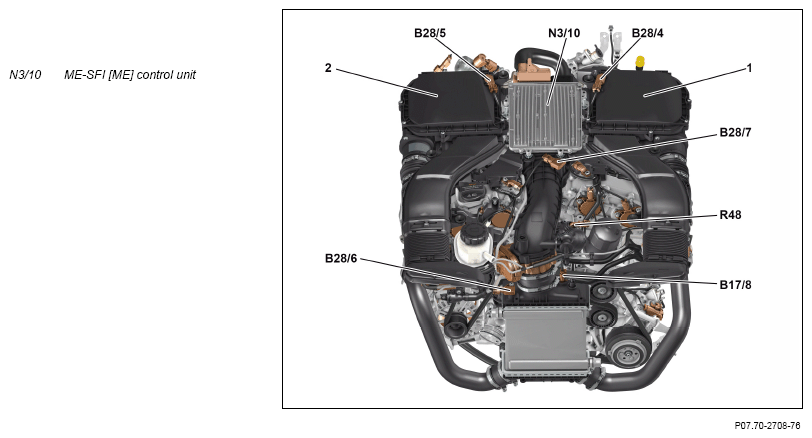

Engine top front view
Location
The ME-SFI [ME] control unit is located in the upper middle on the engine.
Tasks
The ME-SFI [ME] control unit fulfills the following tasks:
- Controlling the engine basic functions
- Reading in of signals
- Evaluation of input factors
- Output of signals and actuation of components
Controlling the engine basic functions
- Start
- Fuel supply
- Injection control
- Ignition system
- Synchronization of injection and firing order
- Start, post-start phase and warm-up enrichment
- Engine speed control
- Alternator interface
- Lambda control
- Smooth running control
- Heat management
- Torque coordination
- Inertia fuel shutoff
- Knock sensor system
- Camshaft adjustment
- Engine limp-home mode
- European On-Board Diagnosis (EOBD)
- ECO start/stop function
- Charging
- Exhaust treatment
- Exhaust gas recirculation (with code 920 (Gasoline direct injection with stratified charge))
- Electronic accelerator
- Capturing fueling gases (with code 494 (USA version))
- Purge control
- Purge system with leak test (with code 494 (USA version))
Reading in of signals
Input factors are read in over the following connections:
- Direct line
- Drive-LIN (LIN C1)
- Engine CAN (CAN C)
- Drive train CAN (CAN C1)
- Drive train sensor CAN (CAN I) (with code 920 (Gasoline direct injection with stratified charge))
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the affected components are then actuated.
Output of signals and actuation of components
Initial parameter are output over the following connections:
- Direct line
- Drive train LIN
- Engine CAN
- Drive train CAN
- Drive train sensor CAN (with code 920 (Gasoline direct injection with stratified charge))
The input and output factors for the following component parts are read in or output via direct lines by the ME-SFI [ME] control unit and processed by the engine management:
| Input factors over a direct line from | Output factors over a direct line to | Supplemental information |
|---|---|---|
| Knock sensor 1 (A16/1) | - | - |
| Knock sensor 2 (A16/2) | - | - |
| - | Fuel tank diagnostic module pump (A101m1) | With CODE 494 (USA version) |
| - | Fuel tank diagnostic module heating element (A101r1) | With CODE 494 (USA version) |
| - | Fuel tank diagnostic module solenoid valve (A101y1) | With CODE 494 (USA version) |
| Purging pressure sensor (B4/4) | - | With CODE 494 (USA version) |
| Fuel pressure and temperature sensor (B4/25) | - | - |
| Exhaust gas recirculation pressure sensor 1 (B5/5) | - | With code 920 (Gasoline direct injection with stratified charge) |
| Exhaust gas recirculation pressure sensor 2 (B5/6) | - | With code 920 (Gasoline direct injection with stratified charge) |
| Left intake camshaft Hall sensor (B6/4) | - | - |
| Right intake camshaft Hall sensor (B6/5) | - | - |
| Left exhaust camshaft Hall sensor (B6/6) | - | - |
| Right exhaust camshaft Hall sensor (B6/7) | - | - |
| Coolant temperature sensor (B11/4) | - | - |
| Temperature sensor upstream of left NOx storage catalytic converter (B16/1) | - | With code 920 (Gasoline direct injection with stratified charge) |
| Right temperature sensor upstream of NOx storage catalytic converter (B16/2) | - | With code 920 (Gasoline direct injection with stratified charge) |
| Charge air temperature sensor (B17/8) | - | - |
| Charge air temperature sensor downstream of throttle valve (B17/9) | - | With code 920 (Gasoline direct injection with stratified charge) |
| Pressure sensor downstream of air filter, left cylinder bank (B28/4) | - | - |
| Pressure sensor downstream of air filter, right cylinder bank (B28/5) | - | - |
| Pressure sensor upstream of throttle valve (B28/6) | - | - |
| Pressure sensor downstream of throttle valve (B28/7) | - | - |
| Crankshaft Hall sensor (B70) | - | - |
| Temperature sensor upstream of left gasoline particulate filter (B163/1) | - | With code 598 (Gasoline particulate filter (OPF) with sensor system) |
| Temperature sensor upstream of right gasoline particulate filter (B163/2) | - | With code 598 (Gasoline particulate filter (OPF) with sensor system) |
| Left gasoline particulate filter differential pressure sensor (B163/5) | - | With code 598 (Gasoline particulate filter (OPF) with sensor system) |
| Right gasoline particulate filter differential pressure sensor (B163/6) | - | With code 598 (Gasoline particulate filter (OPF) with sensor system) |
| Engine compartment circuit 15 relay (K40/8kG) | - | - |
| - | Starter circuit 50 relay (K40/8kH) | - |
| Circuit 87M relay (K40/8kN) | Circuit 87M relay (K40/8kN) | - |
| Left oxygen sensor element upstream of CAT (G3/3b1) | - | - |
| - | Left oxygen sensor heater upstream of CAT (G3/3r1) | - |
| Right oxygen sensor element upstream of CAT (G3/4b1) | - | - |
| - | Right oxygen sensor heater upstream of CAT (G3/4r1) | - |
| Left oxygen sensor element downstream of CAT (G3/5b1) | - | - |
| - | Left oxygen sensor heater downstream of CAT (G3/5r1) | - |
| Right oxygen sensor element downstream of CAT (G3/6b1) | - | - |
| - | Right oxygen sensor heater downstream of CAT (G3/6r1) | - |
| - | Throttle valve actuator motor (M16/6m1) | - |
| Actual value potentiometer 1 (M16/6r1), throttle valve | - | - |
| Actual value potentiometer 2 (M16/6r2), throttle valve | - | - |
| Supplemental Restraint System control unit (N2/10) | - | - |
| - | Coolant thermostat heating element (R48) | - |
| Oil level check switch (S43) | - | - |
| - | Cylinder 1 ignition coil (T1/1) | - |
| - | Cylinder 2 ignition coil (T1/2) | - |
| - | Cylinder 3 ignition coil (T1/3) | - |
| - | Cylinder 4 ignition coil (T1/4) | - |
| - | Cylinder 5 ignition coil (T1/5) | - |
| - | Cylinder 6 ignition coil (T1/6) | - |
| Left exhaust gas recirculation valve Hall sensor (Y27/11b1) | - | With code 920 (Gasoline direct injection with stratified charge) |
| - | Left exhaust gas recirculation valve rotating solenoid (Y27/11y1) | With code 920 (Gasoline direct injection with stratified charge) |
| Right exhaust gas recirculation valve Hall sensor (Y27/12b1) | - | With code 920 (Gasoline direct injection with stratified charge) |
| - | Right exhaust gas recirculation valve rotating solenoid (Y27/12y1) | With code 920 (Gasoline direct injection with stratified charge) |
| - | Left intake camshaft solenoid (Y49/4) | - |
| - | Right intake camshaft solenoid (Y49/5) | - |
| - | Left exhaust camshaft solenoid (Y49/6) | - |
| - | Right exhaust camshaft solenoid (Y49/7) | - |
| - | Purging switchover valve (Y58/1) | - |
| - | Cylinder 1 fuel injector (Y76/1) | - |
| - | Cylinder 2 fuel injector (Y76/2) | - |
| - | Cylinder 3 fuel injector (Y76/3) | - |
| - | Cylinder 4 fuel injector (Y76/4) | - |
| - | Cylinder 5 fuel injector (Y76/5) | - |
| - | Cylinder 6 fuel injector (Y76/6) | - |
| - | Boost pressure control pressure transducer (Y77/1) | - |
| - | Quantity control valve (Y94) | |
| - | Left thrust circulating air switchover valve (Y101/1) | - |
| - | Right thrust circulating air switchover valve (Y101/2) | - |
| - | Engine oil pump valve (Y130) | - |
The input and output factors for the following component parts and control units are transmitted or received by the ME-SFI [ME] control unit via the LIN or CAN and processed by the engine management system:
| Input factors via the drive LIN (LIN C1) from | Output factors via the drive LIN (LIN C1) to | Supplemental information |
|---|---|---|
| Alternator (G2) | Alternator (G2) | - |
| Input factors over engine CAN (CAN C) from | Initial parameters over engine CAN (CAN C) to | Supplemental information |
|---|---|---|
| Instrument cluster (A1) | Instrument cluster (A1) | Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Supplemental Restraint System control unit (N2/10) | - | Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Front SAM control unit (N10/6) | - | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Left front door control unit (N69/1) | - | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Electronic ignition lock control unit (N73) | Electronic ignition lock control unit (N73) | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Powertrain control unit (N127) | Powertrain control unit (N127) | - |
| Input factors over drive CAN (CAN C1) from | Initial parameters over drive CAN (CAN C1) to | Supplemental information |
|---|---|---|
| Instrument cluster (A1) | Instrument cluster (A1) | Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Climate control, control unit (N22/1) | - | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Electronic Stability Program control unit (N30/4) | - | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| AIR BODY CONTROL, control unit (N51/3) (with code 489 (AIR BODY CONTROL)) | - | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Mercedes-Benz Intelligent Drive control unit (N62/4) (with code 23P (Driving Assistance Package), with code P20 (Driving Assistance Plus Package)) | - | Via suspension FlexRay (Flex E), Electronic Stability Program control unit (N30/4) and powertrain control unit (N127) |
| Steering column tube module control unit (N80) | - | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Fuel system control unit (N118) | Fuel system control unit (N118) | - |
| Powertrain control unit (N127) | Powertrain control unit (N127) | - |
| Fully integrated transmission control unit (Y3/8n4) | Fully integrated transmission control unit (Y3/8n4) | - |
| Input factors via drive train sensor CAN (CAN I) from | Output factors via drive train sensor CAN (CAN I) to | Supplemental information |
|---|---|---|
| Control unit for left NOx sensor upstream of NOx storage catalytic converter (N37/9) | Control unit for left NOx sensor upstream of NOx storage catalytic converter (N37/9) | With code 920 (Gasoline direct injection with stratified charge) |
| Control unit for right NOx sensor upstream of NOx storage catalytic converter (N37/10) | Control unit for right NOx sensor upstream of NOx storage catalytic converter (N37/10) | With code 920 (Gasoline direct injection with stratified charge) |
| NOx sensor control unit downstream of NOx storage catalytic converter (N37/11) | NOx sensor control unit downstream of NOx storage catalytic converter (N37/11) | With code 920 (Gasoline direct injection with stratified charge) |
Structure
The ME-SFI [ME] control unit housing is made out of diecast aluminum and the cover is made out corrosion-protected sheet steel. The ME-SFI [ME] control unit is water and dust protected. The inside contains the 32-bit measuring and control electronics for the engine management.
Voltage supply
The ME-SFI [ME] control unit is supplied with voltage via "circuit 30 secured" and also for ignition ON via "circuit 87 M4". In the control voltage range, it has both short-circuit protection and reversed polarity protection. Power is supplied through several engaged parallel pins connected in parallel to relieve the electrical connections.
Variants
The engine management variants, such as country and exhaust variants, are activated via variant coding. Exchange of the ME-SFI [ME] control unit is not necessary.
| Wiring diagram for gasoline-DI control unit | Engine 276.8 in model 213 up to model year 2021 Engine side | PE07.08-P-2101-97DBC | |
| Engine 276.8 in model 213 up to model year 2021 Vehicle side | PE07.08-P-2101-97DBD | ||
| Engine 276.8 in model 238 up to model year 2021 Engine side | PE07.08-P-2101-97DCC | ||
| Engine 276.8 in model 238 up to model year 2021 Vehicle side | PE07.08-P-2101-97DCD |
