Component Description For ME-SFI (ME) Control Unit - GF07.61-P-6000MRT

Engine 256.9 in model 213, 238, 257, 290

up to model year 2021

Engine 256.9 in model 222

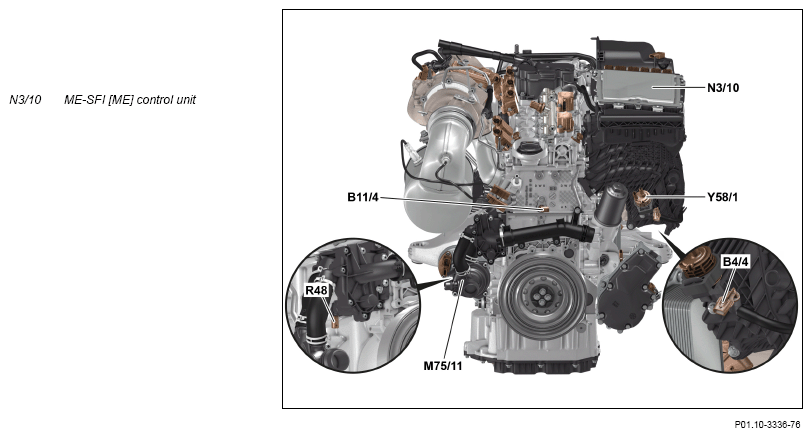

View of engine from front top, shown on engine 256.9 in model 222 except code M005 (4MATIC)

G13770230Courtesy of MERCEDES-BENZ USA

Location

The ME-SFI [ME] control unit is located at the top left on the engine above the air filter.

Tasks

The ME-SFI [ME] control unit fulfills the following tasks:

Controlling the engine basic functions

Reading in of signals

Input factors are read in over the following connections:

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the affected component parts are then actuated.

Output of signals and actuation of component parts

Initial parameter are output over the following connections:

IMPORTANT The electronic ignition lock control unit (N73) is the central interface (Gateway) for exchanging the function-relevant data of the control units that are connected to the various CAN bus systems.

Input factors over a direct line from Output factors over a direct line to Supplemental information
Terminal 15 - -
Circuit 30 (fused) - -
Circuit 31 - -
Circuit 87 M1, M4 - -
Knock sensor 1 (A16/1) - -
Knock sensor 2 (A16/2) - -
- Fuel tank diagnostic module pump (A101m1) With CODE 494 (USA version)
- Fuel tank diagnostic module heating element (A101r1) With CODE 494 (USA version)
- Fuel tank diagnostic module solenoid valve (A101y1) With CODE 494 (USA version)
Purging pressure sensor (B4/4) - With CODE 494 (USA version)
Fuel pressure and temperature sensor (B4/25) - -
Charge air pressure and temperature sensor (B4/32) - -
Intake camshaft Hall sensor (B6/15) - -
Exhaust camshaft Hall sensor (B6/16) - -
Coolant temperature sensor (B11/4) - -
Pressure sensor downstream of air filter (B28/11) - -
Pressure and temperature sensor downstream of exhaust gas turbocharger (B28/17) - -
Pressure and temperature sensor upstream of throttle valve (B28/26) - -
Engine oil fill level sensor (B40/6) - -
Crankshaft Hall sensor (B70) - -
Engine oil pressure and temperature sensor (B149/1) - -
Gasoline particulate filter differential pressure sensor (B163/3) - With code 598 (Gasoline particulate filter (OPF) with sensor system)
Temperature sensor upstream of gasoline particulate filter (B163/4) - With code 598 (Gasoline particulate filter (OPF) with sensor system)
Lambda sensor, sensor element downstream of catalytic converter (G3/1b1) - -
- Lambda sensor heater downstream of catalytic converter (G3/1r1) -
Lambda sensor, sensor element upstream of catalytic converter (G3/2b1) - -
- Oxygen sensor heater upstream of catalytic converter (G3/2r1) -
Engine compartment circuit 15 relay (K40/8kG) - -
Circuit 87M relay (K40/8kN) Circuit 87M relay (K40/8kN) -
- Throttle valve actuator motor (M16/6m1) -
Actual value potentiometer 1 (M16/6r1), throttle valve - -
Actual value potentiometer 2 (M16/6r2), throttle valve - -
Boost pressure control flap actuator (M16/7) Boost pressure control flap actuator (M16/7) -
Supplemental Restraint System control unit (N2/10) - -
- Fuel pump control unit (N118) -
- Coolant thermostat heating element (R48) -
- Cylinder 1 ignition coil (T1/1) -
- Cylinder 2 ignition coil (T1/2) -
- Cylinder 3 ignition coil (T1/3) -
- Cylinder 4 ignition coil (T1/4) -
- Cylinder 5 ignition coil (T1/5) -
- Cylinder 6 ignition coil (T1/6) -
- Intake camshaft adjustment solenoid (Y49/1) -
- Exhaust camshaft adjustment solenoid (Y49/2) -
- Cylinder 1 and 2 intake CAMTRONIC actuator (Y49/19) -
- Cylinder 3 and 4 intake CAMTRONIC actuator (Y49/20) -
- Cylinder 5 and 6 intake CAMTRONIC actuator (Y49/21) -
- Purging switchover valve (Y58/1) -
- Cylinder 1 fuel injector (Y76/1) -
- Cylinder 2 fuel injector (Y76/2) -
- Cylinder 3 fuel injector (Y76/3) -
- Cylinder 4 fuel injector (Y76/4) -
- Cylinder 5 fuel injector (Y76/5) -
- Cylinder 6 fuel injector (Y76/6) -
- Quantity control valve (Y94)
- Overrun mode bypass air switchover valve (Y101) -
- Engine oil pump valve (Y130) -

Input parameters and initial parameters for the following assembly parts and control units are transmitted or received by the ME-SFI [ME] or CDI control unit via the LIN or CAN and are needed by the engine management system:

Input factors over engine CAN (CAN C) from Initial parameters over engine CAN (CAN C) Supplemental information to
Instrument cluster (A1) Instrument cluster (A1) Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127)
Supplemental Restraint System control unit (N2/10) - Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127)
Front SAM control unit (N10/6) - Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127)
Left front door control unit (N69/1) - Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127)
Electronic ignition lock control unit (N73) Electronic ignition lock control unit (N73) Via suspension FlexRay (Flex E) and powertrain control unit (N127)
Powertrain control unit (N127) Powertrain control unit (N127) -
Diagnostics connection (X11/4) Diagnostics connection (X11/4) Via diagnostic CAN (CAN D), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127)
Input factors over drive CAN (CAN C1) from Initial parameters over drive CAN (CAN C1) to Supplemental information
Instrument cluster (A1) Instrument cluster (A1) Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127)
Climate control, control unit (N22/1) - Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127)
Electronic Stability Program control unit (N30/4) - Via suspension FlexRay (Flex E) and powertrain control unit (N127)
AIRmatic control unit (N51/3) (model 222) AIR BODY CONTROL, control unit (models 213, 238, 257 with code 489 (AIR BODY CONTROL)) - Via suspension FlexRay (Flex E) and powertrain control unit (N127)
Mercedes-Benz Intelligent Drive control unit (N62/4) (with code 23P (Driving assistance package)) - Via suspension FlexRay (Flex E), Electronic Stability Program control unit (N30/4) and powertrain control unit (N127)
Steering column tube module control unit (N80) - Via suspension FlexRay (Flex E) and powertrain control unit (N127)
Fuel pump control unit (N118) Fuel pump control unit (N118) -
Powertrain control unit (N127) Powertrain control unit (N127) -
Fully integrated transmission control (Y3/8n4) electric controller unit control unit Fully integrated transmission control (Y3/8n4) electric controller unit control unit -
Input factors via drive train sensor CAN (CAN I) from Initial parameters via drive train sensor CAN (CAN I) to Supplemental information
Electric additional compressor (M60/1) Electric additional compressor (M60/1) -
Input factors via engine LIN (LIN C2) from Initial parameters via engine LIN (LIN C2) to Supplemental information
Electric coolant pump (M75/11) Electric coolant pump (M75/11) -

Structure

The ME-SFI [ME] control unit housing is made out of diecast aluminum and the cover is made out corrosion-protected sheet steel. The ME-SFI [ME] control unit is water and dust protected. The inside contains the 32-bit measuring and control electronics for the engine management.

Voltage supply

The ME-SFI [ME] control unit is supplied with a power from "circuit 30 secured" and also for ignition ON from "circuit 87 M4". In the control voltage range, it has both short-circuit protection and reversed polarity protection. Power is supplied through several engaged parallel pins connected in parallel to relieve the electrical connectors.

Variants

The engine management variants, e.g. country and exhaust variants, are activated with the diagnostic tester via variant coding. Exchange of the ME-SFI [ME] control unit is not necessary.
