Remove/Install Fuel Differential Pressure Sensor - AR07.04-P-0025MRH

Engine 264 in model 213, 238, 257

with code 598 (Gasoline particulate filter (OPF) with sensor system)

Engine 274 in model 213

with code 598 (Gasoline particulate filter (OPF) with sensor system)

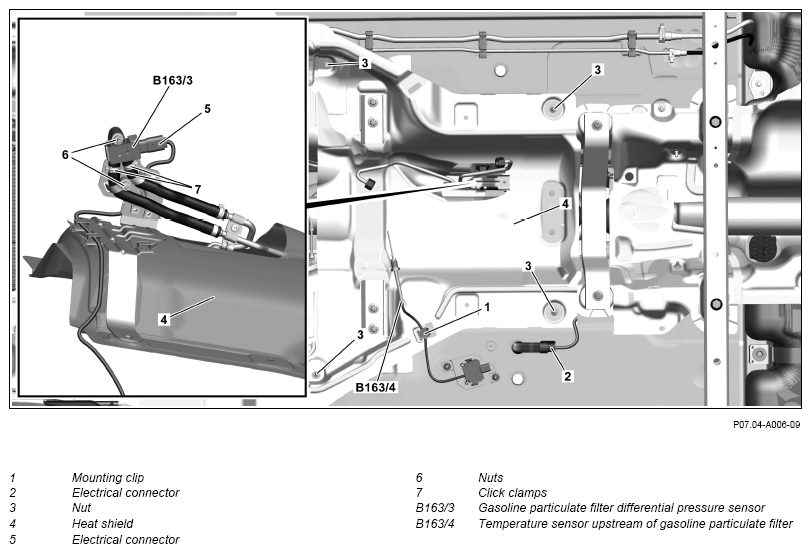

Fig 1: Fuel Differential Pressure Sensor Components Location - Engines 264;274 In Model 213 With Code 598

Courtesy of MERCEDES-BENZ USA

	Risk of burn injuries,  suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2	Remove center exhaust system.	Engine 264 in model 257 with code 598 (Gasoline particulate filter (OPF) with sensor system) Engine 264, 274 in model 213 with code 598 (Gasoline particulate filter (OPF) with sensor system)	AR49.10-P-7283MRD
		Engine 264 in model 238 with code 598 (Gasoline particulate filter (OPF) with sensor system)	AR49.10-P-7283MRH
3	Unclip temperature sensor upstream of the gasoline particulate filter (B163/4) from the retaining clip (1).
4	Disconnect electrical connection (2).
5	Unscrew nuts (3) from the heat shield (4).
6	Remove heat shield (4) with gasoline particulate filter differential pressure sensor (B163/3) downward.
7	Disconnect electrical connector (5).	When installing new gasoline particulate filter differential pressure sensor (B163/3).
8	Unscrew nuts (6).	When installing new gasoline particulate filter differential pressure sensor (B163/3).
		Engine 274 in model 213Nut, differential pressure sensor to bracket	*BA49.10-P-1013-02G
		Engine 264 in model 213, 257Nut, differential pressure sensor to bracket	*BA49.10-P-1014-02P
		Engine 264 in Model 238Nut, differential pressure sensor to bracket	*BA49.10-P-1011-02M
9	Remove click clamps (7) at pressure hoses.	When installing new gasoline particulate filter differential pressure sensor (B163/3). : Install new click clamps (7). Position click clamps (7) in original installation position.
		Pliers for click clamps	Fig 2
10	Install in the reverse order.
11	Read out and delete fault memory.
		Engine 264, 274 in model 213 with code 598 (Gasoline particulate filter (OPF) with sensor system)	AD00.00-P-2000-04B
		Engine 264 in model 238 with code 598 (Gasoline particulate filter (OPF) with sensor system)	AD00.00-P-2000-06LWO
		Engine 264 in model 257 with code 598 (Gasoline particulate filter (OPF) with sensor system)	AD00.00-P-2000-06FR
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Perform engine test run and check exhaust system in terms of leak tightness.

Fig 2: Identifying Pliers For Click Clamps (171 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
