Remove/Install Fuel Pressure And Temperature Sensor - AR07.04-P-0093MRH
Engine 264 in model 213. 238. 257
| Risk of explosion caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure | Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. |
AS07.16-Z-0001-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| General information on work on gasoline direct injection system | AH07.00-P-2000-01A | ||
| Remove/install | |||
| 1 | Disconnect ground line from battery. | Engine 264 in model 238 | AR54.10-P-0003LWO |
| Engine 264 in model 213 | AR54.10-P-0003LW | ||
| Engine 264 in model 257 | AR54.10-P-0003FR | ||
| 2 | Remove upper engine cover. | AR01.10-P-2405MRH | |

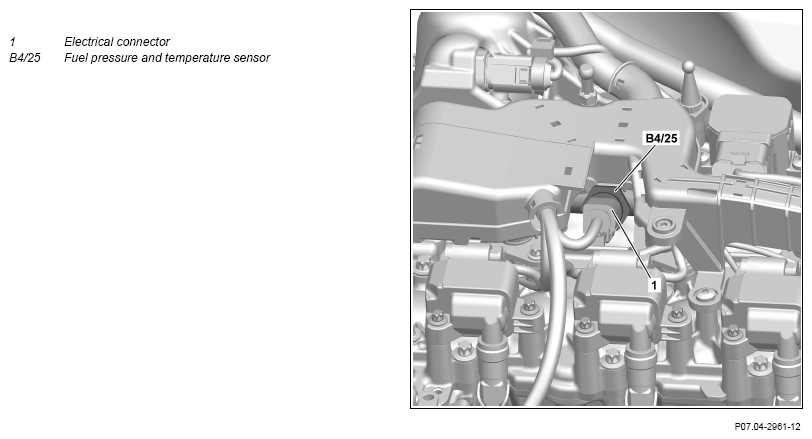

| 3 | Release electrical connector (1) and disconnect. | ||
| 4 | Clean the rail in the area of the fuel pressure and temperature sensor (B4/25). | Assembly cleaner | *BR00.45-Z-1028-04A |
| 5 | Relieve fuel pressure in fuel system high-pressure circuit. | AR07.03-P-1460-02MM | |
| 6 | Remove fuel pressure and temperature sensor (B4/25). | Replace fuel pressure and temperature sensor (B4/25) after every disassembly. Leaks can occur otherwise. |
|
| *BA07.04-P-1001-02B | |||
| 7 | Install in the reverse order. | ||
| 8 | Read out and delete fault memory. | ||
| Engine 264 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 264 in model 257 | AD00.00-P-2000-06FR | ||
| Engine 264 in model 213 | AD00.00-P-2000-04B | ||
| Check | |||
| 9 | Check fuel high pressure circuit for leaktightness. | AR07.03-P-1010-04MM | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Carry out engine test run and check engine for proper operation and leaktightness. | ||
| 11 | Install upper engine cover. | AR01.10-P-2405MRH |
SENSORS
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA07.04-P-1001-02B | Pressure and temperature sensor to fuel distributor | Nm | 38 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
