Remove/Install ME-SFI Control Unit - AR07.08-P-1000MSA
Engine 256.9 in model 213, 238, 257, 290
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on avoiding damage to ignition system | AH15.10-P-0002-01V | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Start control unit replacement with vehicle diagnosis system. | When replacing the ME-SFI [ME] control unit (N3/10). | |
| Engine 256.9 in model 213 | AD00.00-P-2000-04B | ||
| Engine 256.9 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 256.9 in model 257, 290 | AD00.00-P-2000-06FR | ||
| 2 | Switch off the ignition and keep the transmitter keys outside the transmitter range (at least 2 m). | ||
| 3 | Disconnect ground line from battery. | Engine 256.9 in model 213 | AR54.10-P-0003LW |
| Engine 256.9 in model 238 | AR54.10-P-0003LWO | ||
| Engine 256.9 in model 257, 290 | AR54.10-P-0003FR | ||

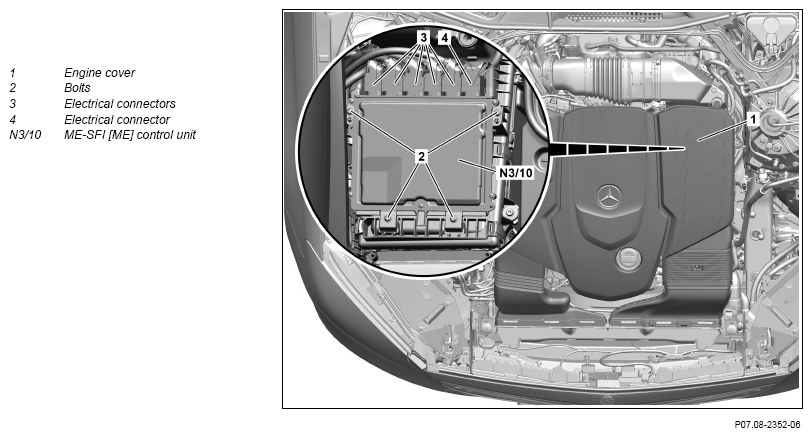

| 4 | Remove engine cover (1). | AR01.10-P-2405MSA | |
| 5 | Remove screw/bolts (2). | *BA09.10-P-1002-01MRT | |
| 6 | Release and disconnect electrical connectors (3, 4). | ||
| 7 | Remove ME-SFI [ME] control unit (N3/10). | ||
| Check | |||
| 8 | Check seal in air filter housing for correct seating and damage and replace if necessary. | ||
| 9 | Install in the reverse order. | ||
| Check | |||
| 10 | Read out and delete fault memory. | ||
| Engine 256.9 in model 213 | AD00.00-P-2000-04B | ||
| Engine 256.9 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 256.9 in model 257, 290 | AD00.00-P-2000-06FR | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Perform an engine test run and check the engine for proper function. |
AIR CLEANER HOUSING
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BA09.10-P-1002-01MRT | Bolt, ME-SFI control unit to air filter housing | Nm | 6 |
