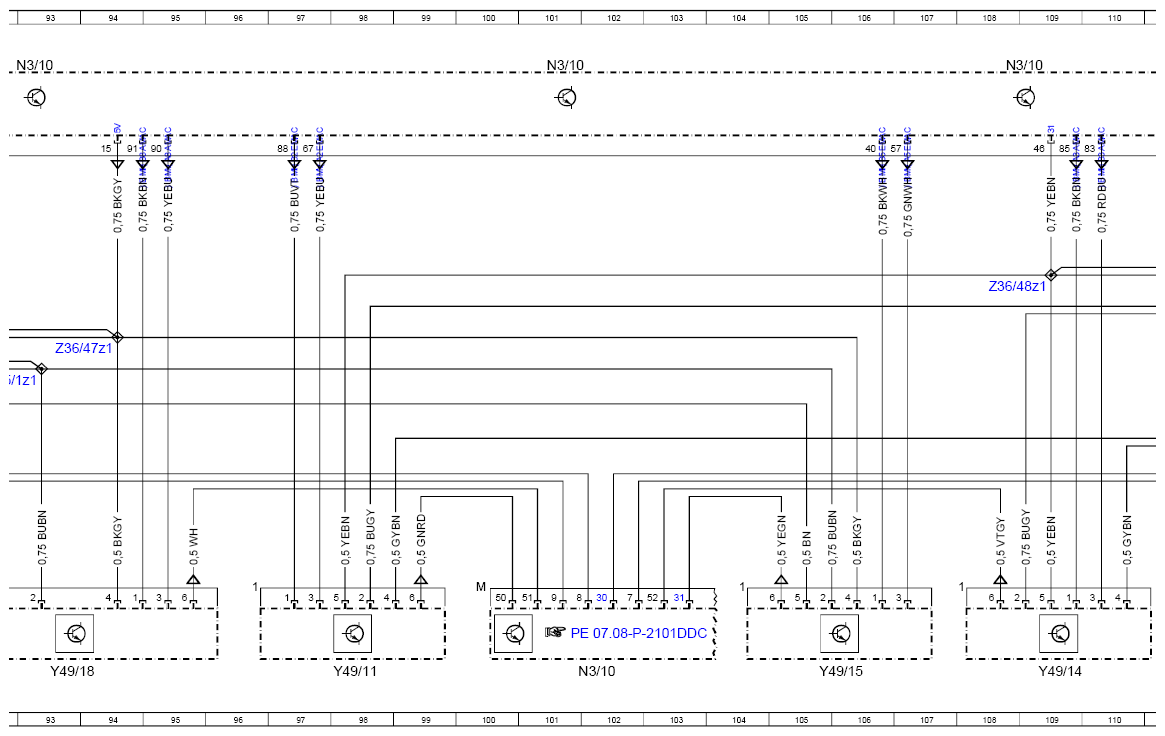

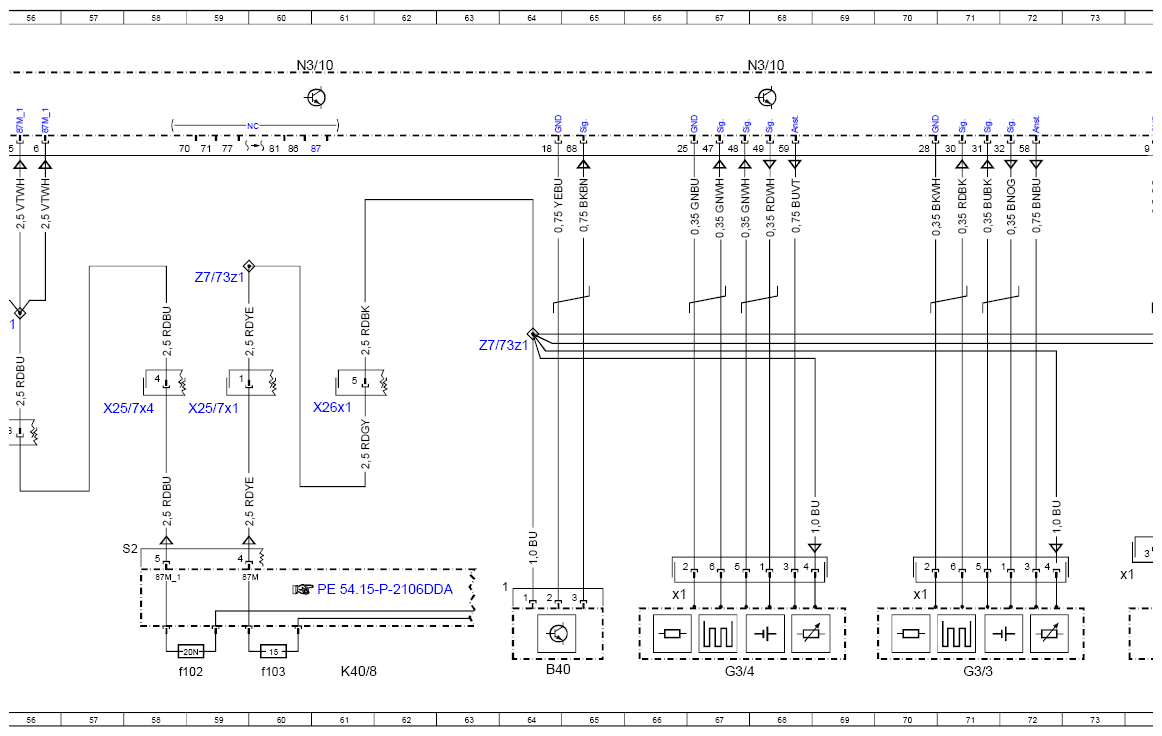

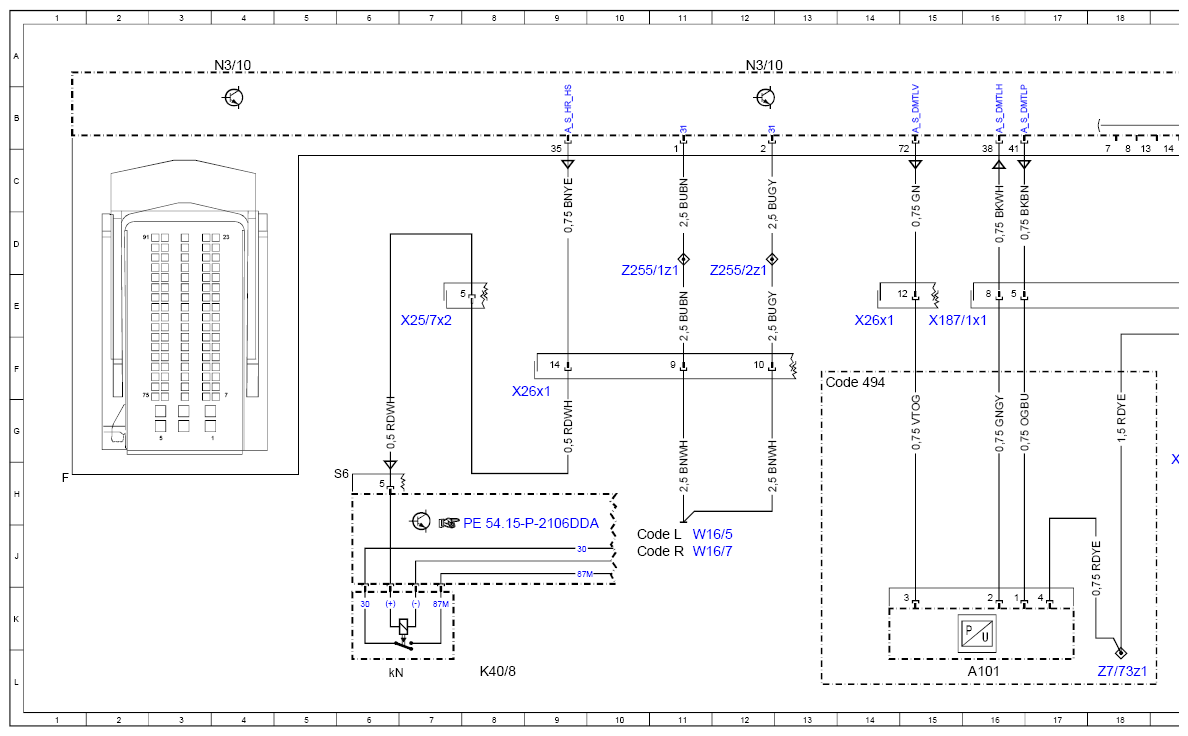

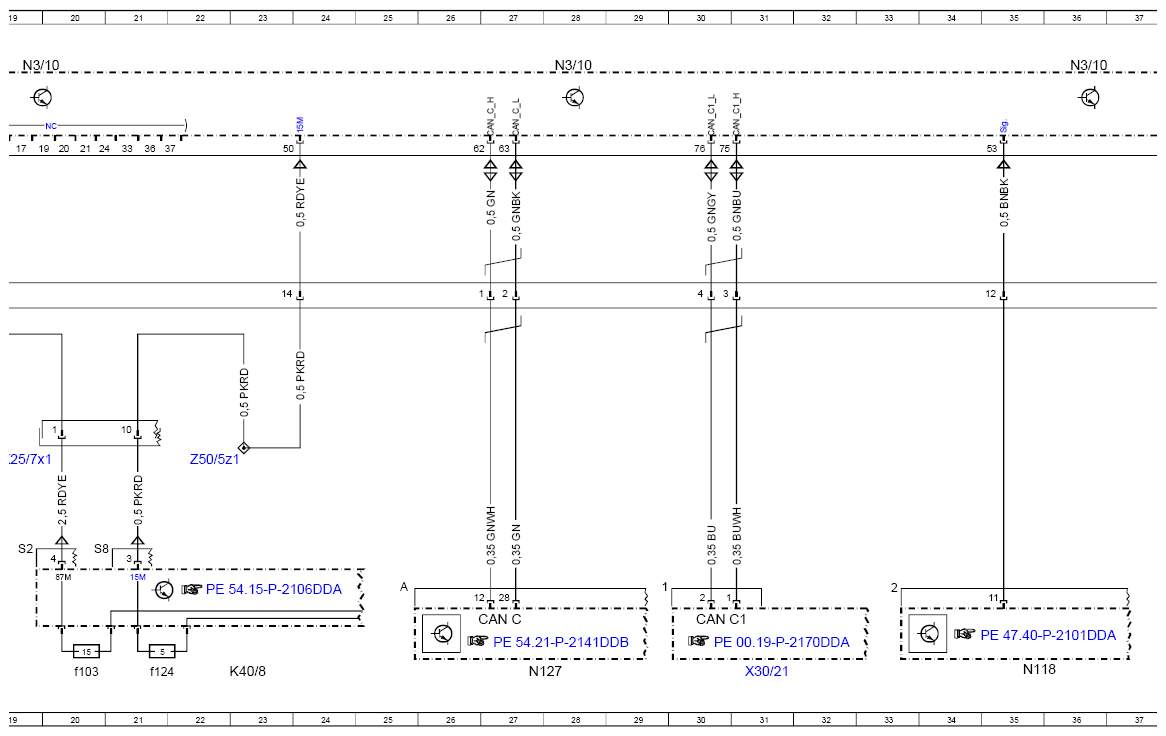

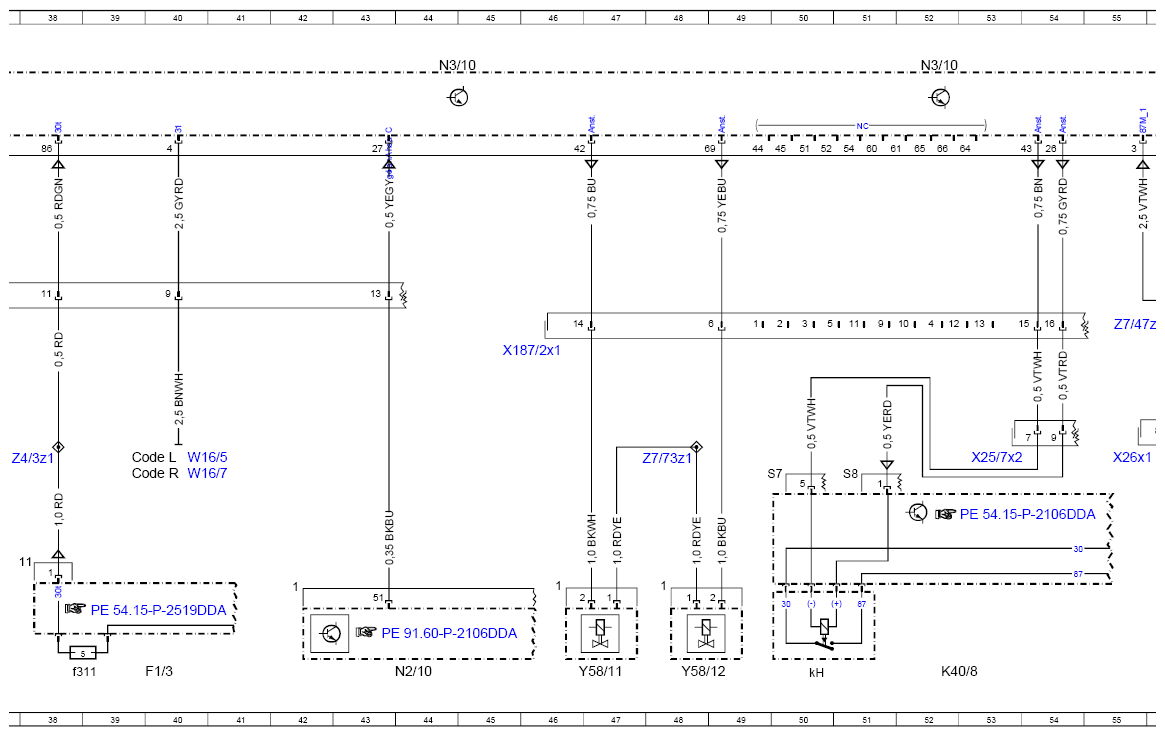

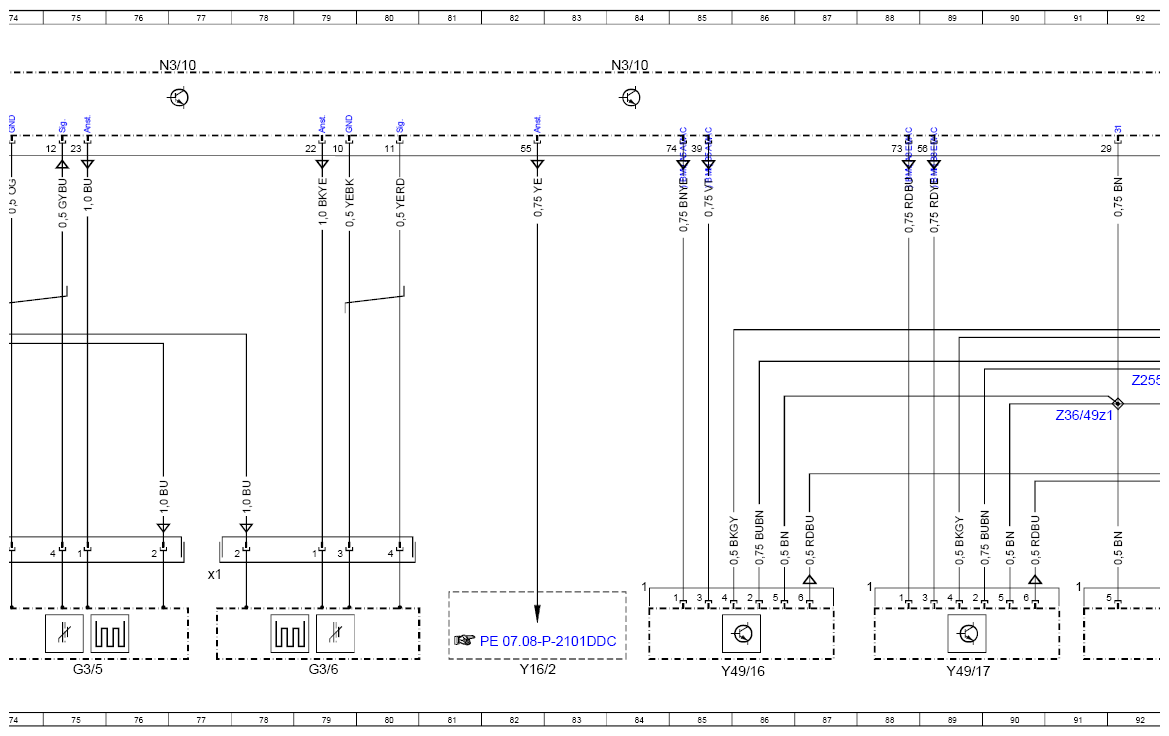

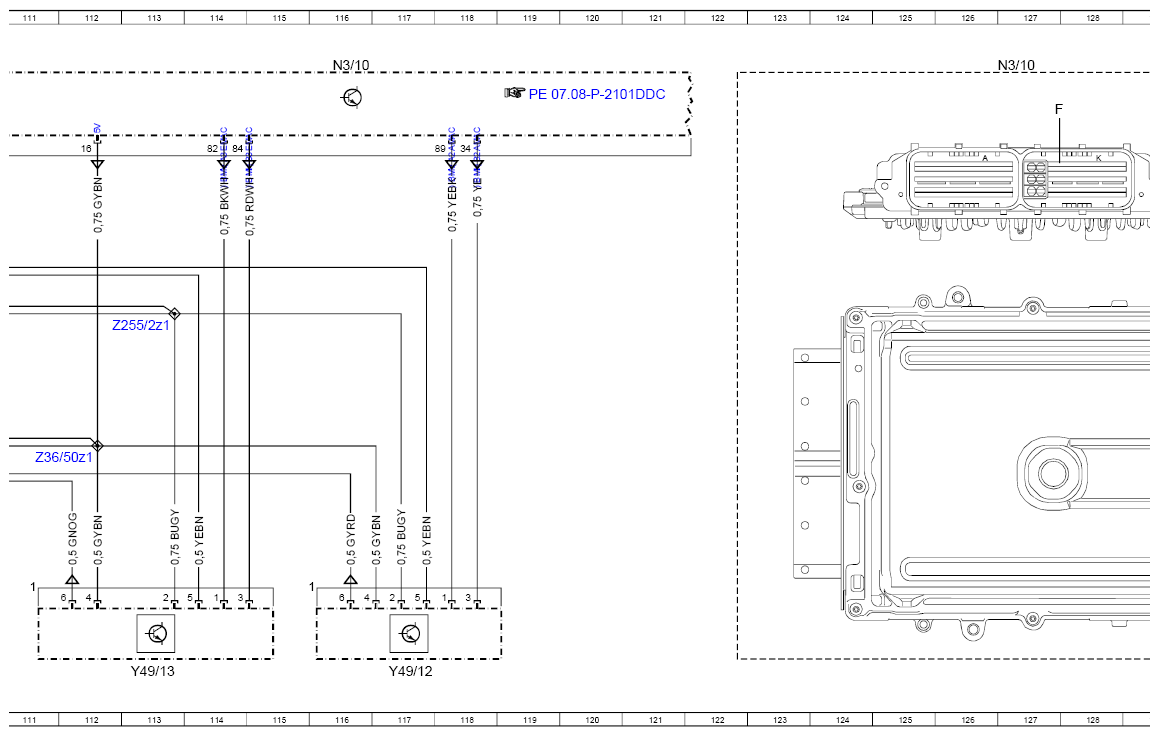

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97DDD
Engine 177.9 in model 213 as of model year 2021 Control unit N3/10, vehicle connector
| Code: | Designation: | Position: |
|---|---|---|

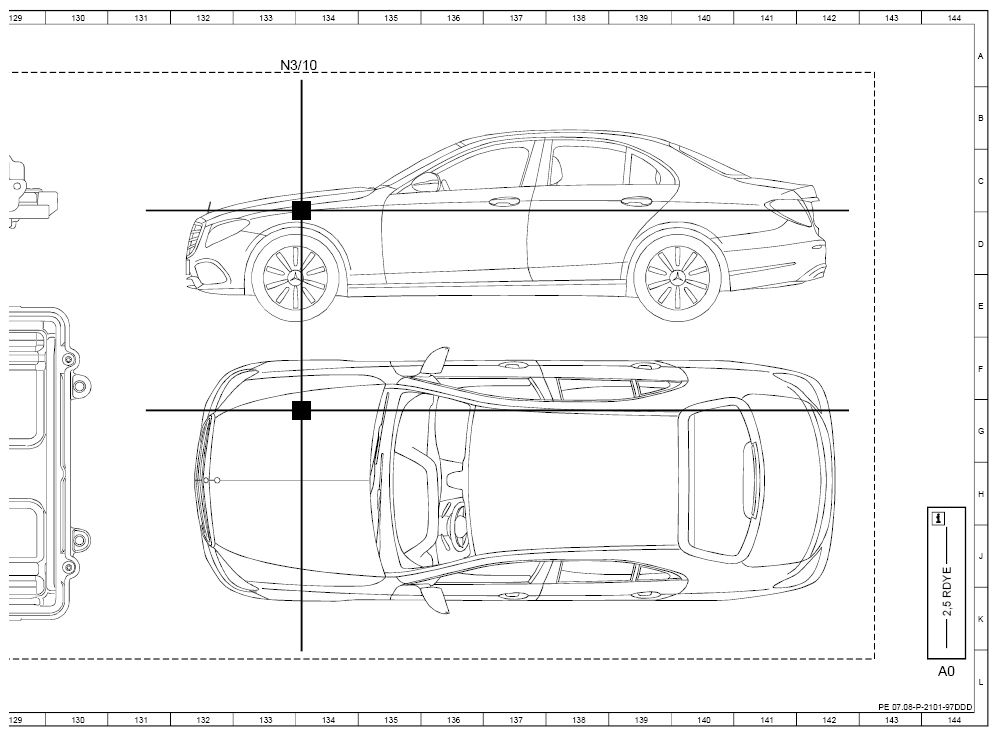

| A0 | Use of wiring diagrams | 144L |
| A101 | Fuel tank diagnostic module | 16L |
| B40 | Oil sensor (oil level, temperature and quality) | 64L |
| CAN C | Engine CAN | 27K |
| CAN C1 | Drive train CAN | 30K |
| Code 494 | USA version | 13F |
| Code L | LEFT-HAND DRIVE | 10J |
| Code L | LEFT-HAND DRIVE | 39G |
| Code R | RIGHT-HAND DRIVE | 10J |
| Code R | RIGHT-HAND DRIVE | 39H |
| F1/3 | Passenger-side A-pillar fuse box | 40L |
| F1/3f311 | Fuse 311 | 38L |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 71L |
| G3/3x1 | Electrical connector for left oxygen sensor upstream of catalytic converter | 70K |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 67L |
| G3/4x1 | Electrical connector for right oxygen sensor upstream of catalytic converter | 66K |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 75L |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 74J |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 79L |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 77J |
| K40/8 | Engine fuse and relay module | 8L |
| K40/8 | Engine fuse and relay module | 23L |
| K40/8 | Engine fuse and relay module | 61L |
| K40/8 | Engine fuse and relay module | 52L |
| K40/8f102 | Fuse 102 | 58L |
| K40/8f103 | Fuse 103 | 20L |
| K40/8f103 | Fuse 103 | 60L |
| K40/8f125 | Fuse 125 | 21L |
| K40/8kH | Starter circuit 50 relay | 50L |
| K40/8kN | Circuit 87M relay | 6L |
| N118 | Fuel pump control unit | 35L |
| N127 | Drivetrain control unit | 27L |
| N2/10 | Supplemental restraint system control unit | 44L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 19A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 68A |
| N3/10 | ME-SFI [ME] control unit | 77A |
| N3/10 | ME-SFI [ME] control unit | 84A |
| N3/10 | ME-SFI [ME] control unit | 102L |
| N3/10 | ME-SFI [ME] control unit | 93A |
| N3/10 | ME-SFI [ME] control unit | 101A |
| N3/10 | ME-SFI [ME] control unit | 108A |
| N3/10 | ME-SFI [ME] control unit | 116A |
| N3/10 | ME-SFI [ME] control unit | 127A |
| N3/10 | ME-SFI [ME] control unit | 133A |
| W16/5 | Left major assembly compartment electronics ground point | 11J |
| W16/5 | Left major assembly compartment electronics ground point | 40G |
| W16/7 | Right major assembly compartment electronics ground point | 11J |
| W16/7 | Right major assembly compartment electronics ground point | 40H |
| X187/1x1 | Engine electrical connector 1 | 15E |
| X187/2x1 | Engine electrical connector 2 | 46F |
| X25/7x1 | Engine compartment/interior wiring harness electrical connector | 19H |
| X25/7x1 | Engine compartment/interior wiring harness electrical connector | 59G |
| X25/7x2 | Engine compartment/interior wiring harness electrical connector | 53H |
| X25/7x2 | Engine compartment/interior wiring harness electrical connector | 7E |
| X25/7x4 | Engine compartment/interior wiring harness electrical connector 4 | 58G |
| X26x1 | Engine wiring harness/engine compartment electrical connector | 9F |
| X26x1 | Engine wiring harness/engine compartment electrical connector | 55G |
| X26x1 | Engine wiring harness/engine compartment electrical connector | 61G |
| X26x1 | Engine wiring harness/engine compartment electrical connector | 14E |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 31L |
| Y16/2 | Heating system shutoff valve | 82L |
| Y49/11 | Cylinder 2 intake CAMTRONIC actuator | 98L |
| Y49/12 | Cylinder 2 exhaust CAMTRONIC actuator | 117L |
| Y49/13 | Cylinder 3 intake CAMTRONIC actuator | 113L |
| Y49/14 | Cylinder 3 exhaust CAMTRONIC actuator | 109L |
| Y49/15 | Cylinder 5 intake CAMTRONIC actuator | 105L |
| Y49/16 | Cylinder 5 exhaust CAMTRONIC actuator | 86L |
| Y49/17 | Cylinder 8 intake CAMTRONIC actuator | 89L |
| Y49/18 | Cylinder 8 exhaust CAMTRONIC actuator | 93L |
| Y58/11 | Left purge control valve | 47L |
| Y58/12 | Right purge control valve | 48L |
| Z255/1z1 | Body ground connection connector sleeve | 11E |
| Z255/1z1 | Body ground connection connector sleeve | 92F |
| Z255/2z1 | Body ground connection connector sleeve | 12E |
| Z255/2z1 | Body ground connection connector sleeve | 113E |
| Z36/47z1 | Voltage supply connector sleeve | 94F |
| Z36/48z1 | Ground connection connector sleeve | 108E |
| Z36/49z1 | Ground connection connector sleeve | 91G |
| Z36/50z1 | Voltage supply connector sleeve | 112G |
| Z4/3z1 | Tml. 30 connector sleeve | 38H |
| Z50/5z1 | Tml. 15 connector sleeve | 22H |
| Z7/47z1 | Circuit 87/1 connector sleeve | 55E |
| Z7/73z1 | Circuit 87M4 connector sleeve | 18L |
| Z7/73z1 | Circuit 87M4 connector sleeve | 48H |
| Z7/73z1 | Circuit 87M4 connector sleeve | 59E |
| Z7/73z1 | Circuit 87M4 connector sleeve | 64F |
