Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97DDI
Engine 256 in model 213 as of model year 2021 Control unit N3/10, connectors 3, 4, 5
| Code: | Designation: | Position: |
|---|---|---|

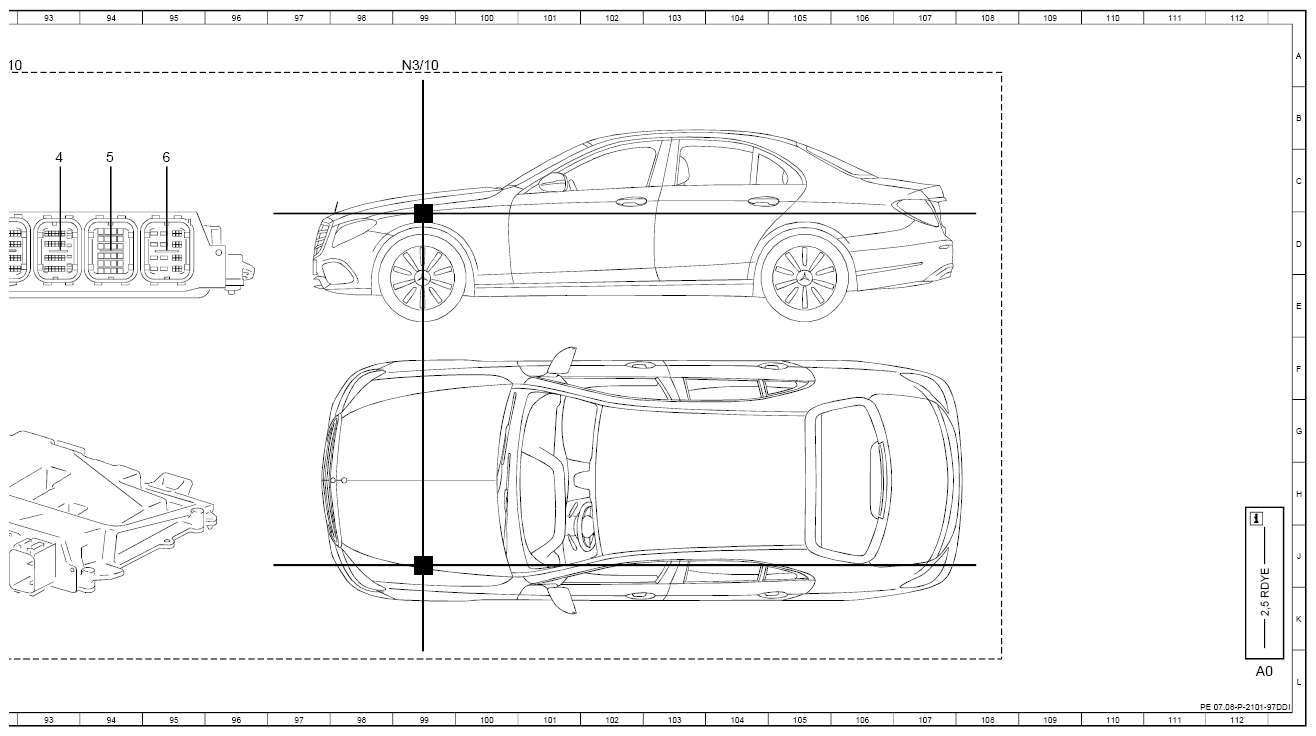

| A0 | Use of wiring diagrams | 112L |
| B28/11 | Pressure sensor downstream of air filter | 51L |

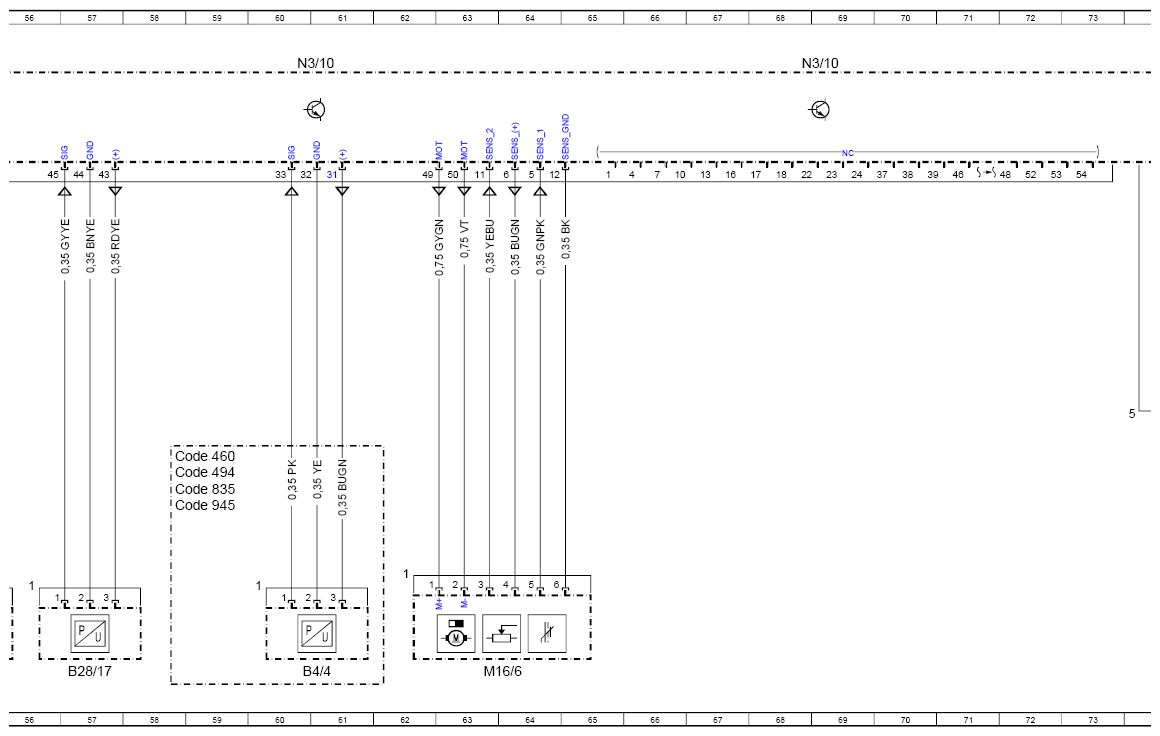

| B28/17 | Pressure and temperature sensor downstream of exhaust gas turbocharger | 57L |
| B28/26 | Pressure and temperature sensor upstream of throttle valve | 53L |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 55L |
| B4/25 | Fuel pressure and temperature sensor | 7L |
| B4/4 | Purging pressure sensor | 60L |

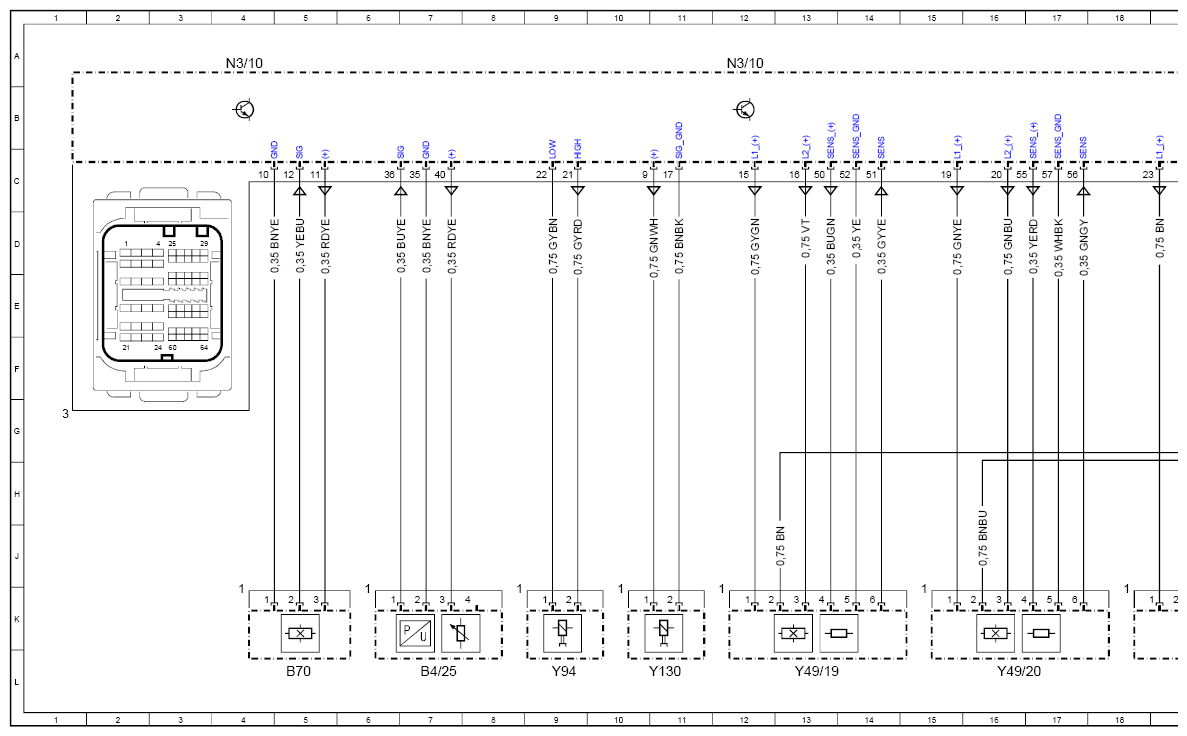

| B70 | Crankshaft Hall sensor | 5L |
| Code 460 | Canada version | 58G |
| Code 494 | USA version | 58H |
| Code 835 | Additional parts for South Korea vehicles | 58H |
| Code 945 | China Stage 6 exhaust treatment | 58H |
| M16/6 | Throttle valve actuator | 63L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 19A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 99A |
| N3/10 | ME-SFI [ME] control unit | 92A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 68A |
| N3/10 | ME-SFI [ME] control unit | 77A |
| N3/10 | ME-SFI [ME] control unit | 84A |
| T1/1 | Cylinder 1 ignition coil | 36L |

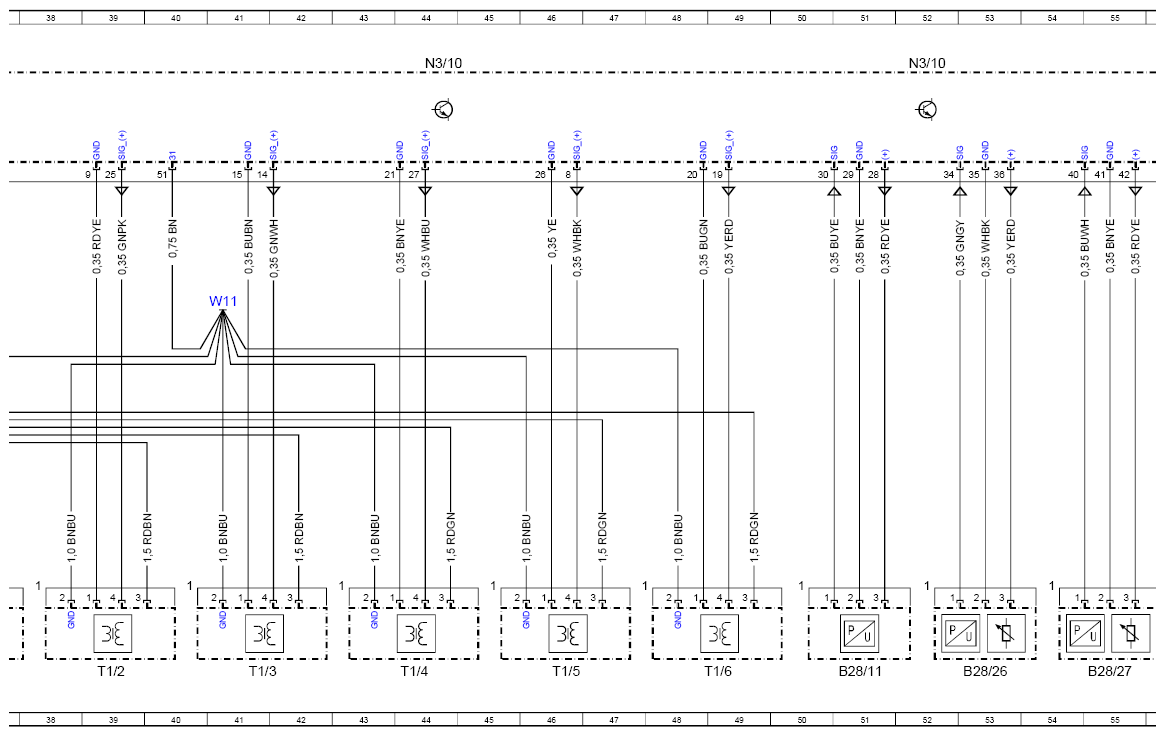

| T1/2 | Cylinder 2 ignition coil | 39L |
| T1/3 | Cylinder 3 ignition coil | 41L |
| T1/4 | Cylinder 4 ignition coil | 44L |
| T1/5 | Cylinder 5 ignition coil | 46L |
| T1/6 | Cylinder 6 ignition coil | 49L |
| W11 | Combustion engine ground point | 41E |

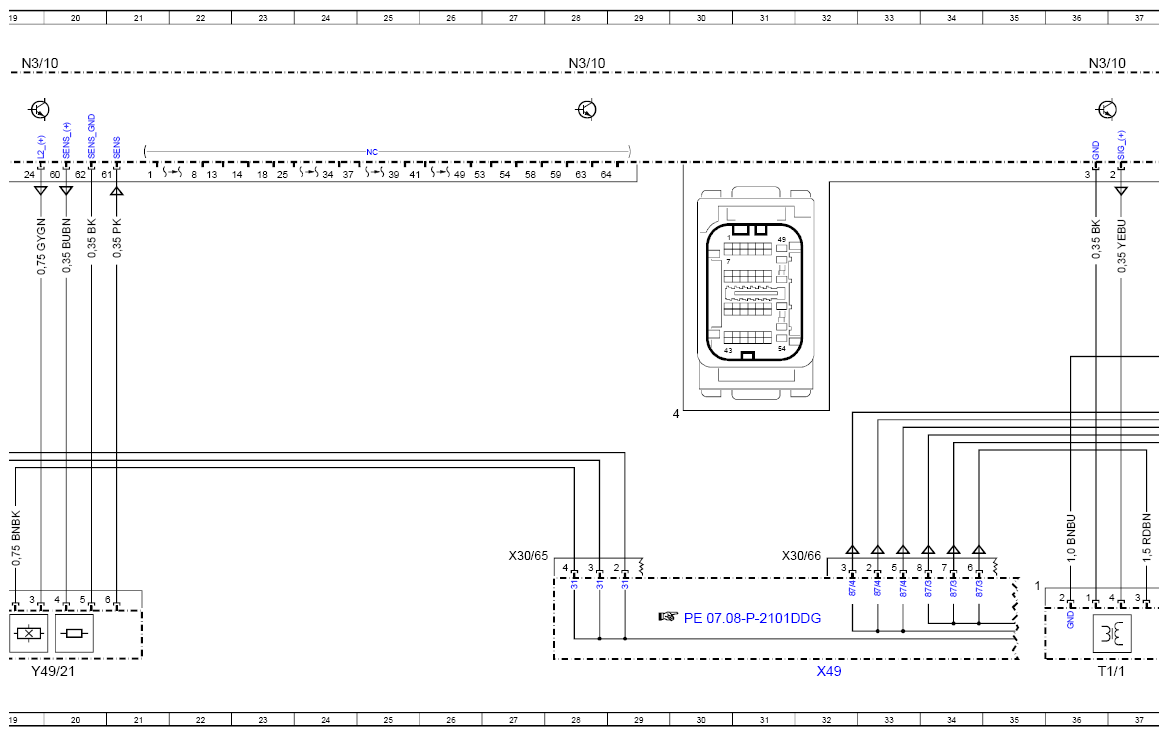

| X49 | Potential distributor | 32L |
| Y130 | Engine oil pump valve | 11L |
| Y49/19 | Cylinder 1 and 2 intake CAMTRONIC actuator | 13L |
| Y49/20 | Cylinder 3 and 4 intake CAMTRONIC actuator | 16L |
| Y49/21 | Cylinder 5 and 6 intake CAMTRONIC actuator | 19L |

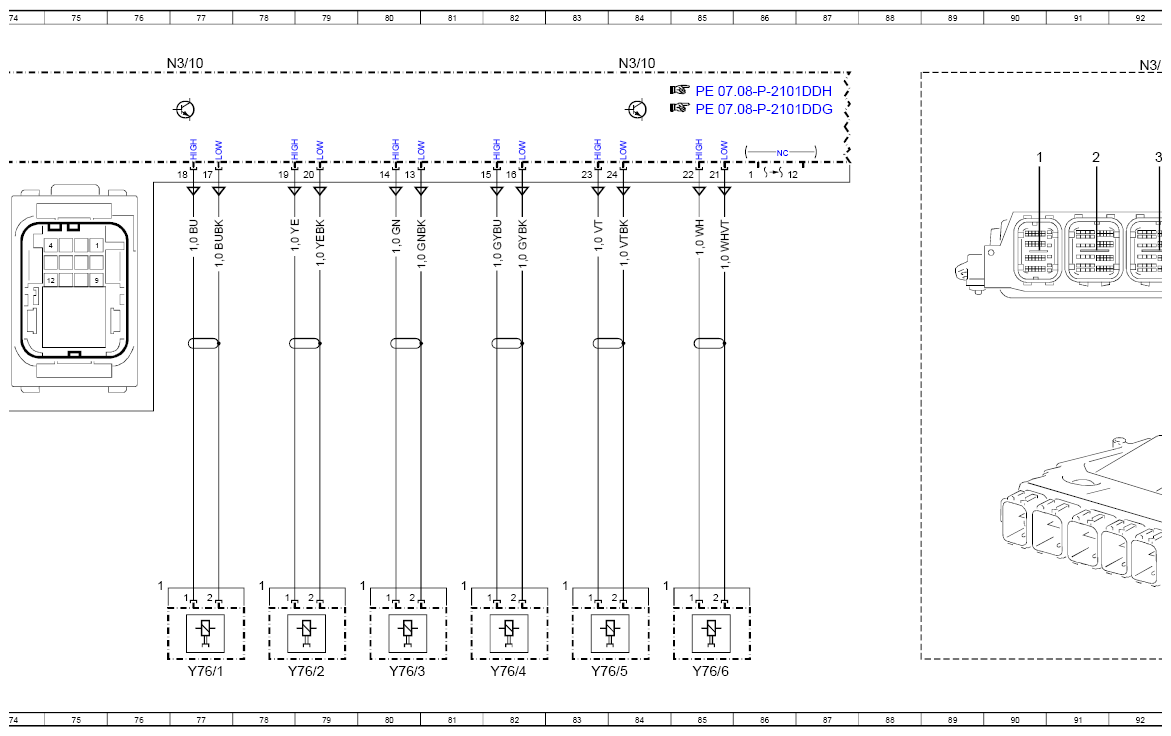

| Y76/1 | Cylinder 1 fuel injector | 77L |
| Y76/2 | Cylinder 2 fuel injector | 79L |
| Y76/3 | Cylinder 3 fuel injector | 80L |
| Y76/4 | Cylinder 4 fuel injector | 82L |
| Y76/5 | Cylinder 5 fuel injector | 83L |
| Y76/6 | Cylinder 6 fuel injector | 85L |
| Y94 | Quantity control valve | 9L |
