Multidisk Brake, Basic Function - GF27.51-P-2000A
Model all with transmission 725.0/1

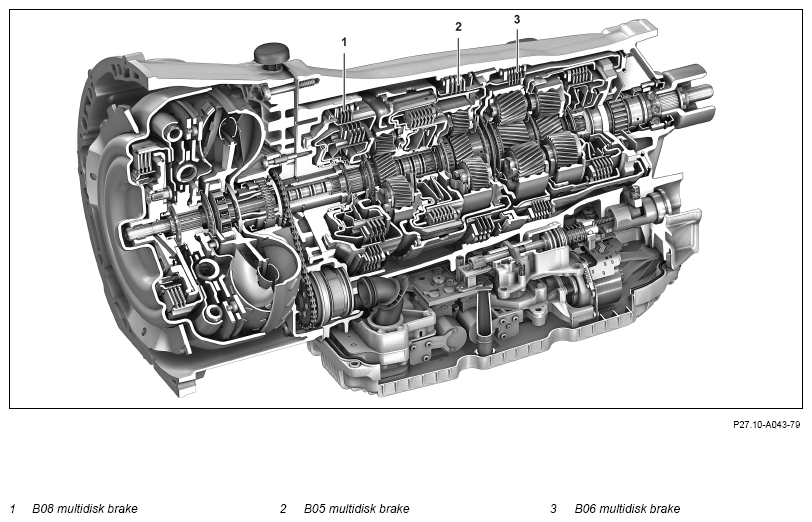

Example illustration of automatic transmission with multidisk brakes
Shown on automatic transmission with multidisk brakes
Overview
This document contains information on:
- General
- Function
General
The multidisk brakes are used for braking and hold the ring gear, sun gear or planetary gear of a planetary gear set. These are supported against the transmission housing (4) to transfer the torque.
Function

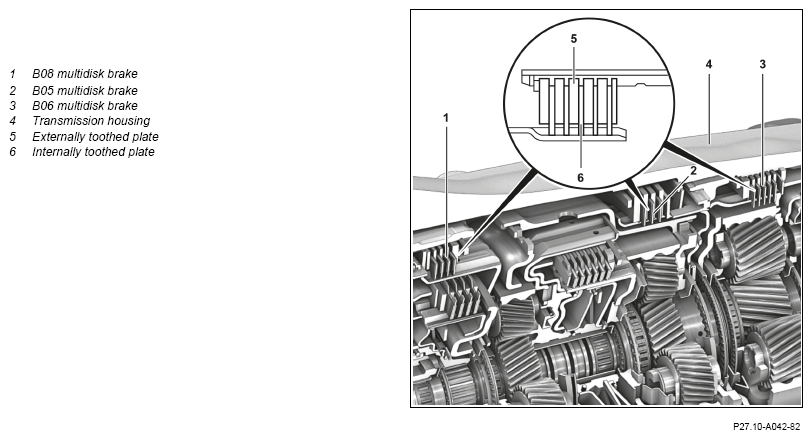

A multidisk brake consists of several inner plates (6) on an inner plate carrier and outer plates (5) on an outer plate carrier. The external plate carrier is permanently connected to the transmission housing (4). In the multidisk brakes, double-sided disks (disks coated on both sides) are used.
For shifting, the different parts of the planetary gear set are held by hydraulic pressure being exerted on the multidisk brakes.
