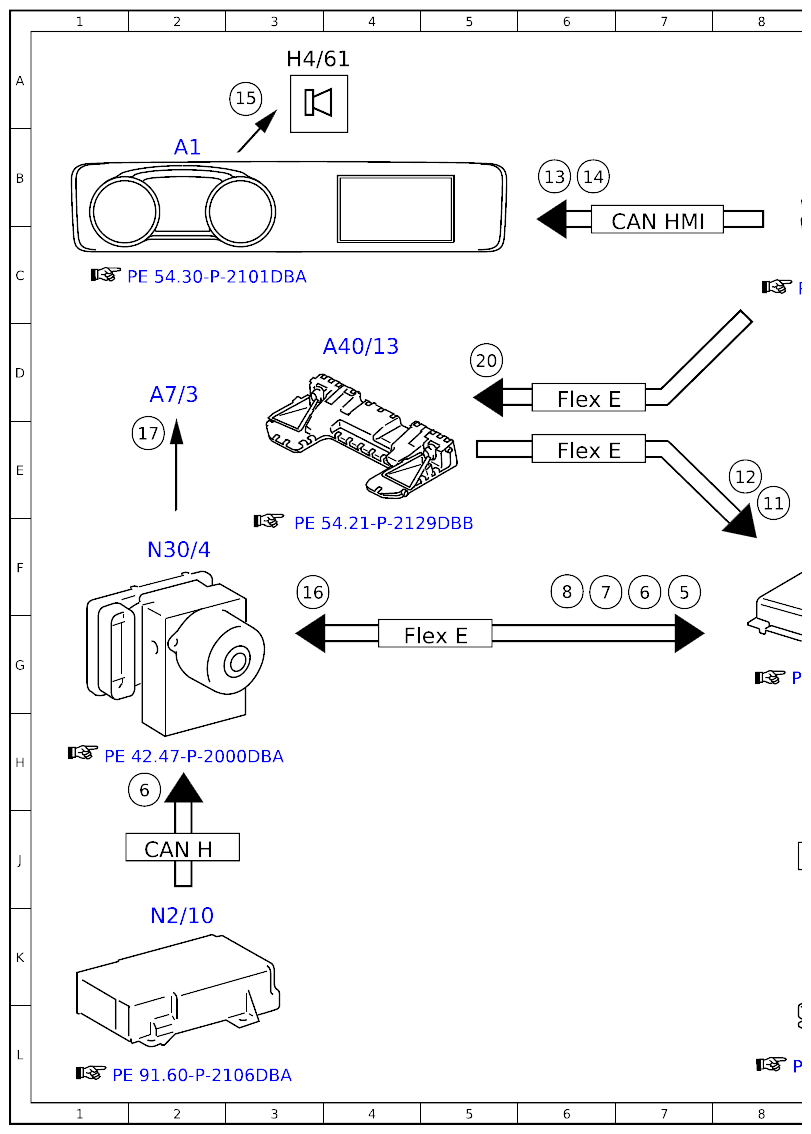

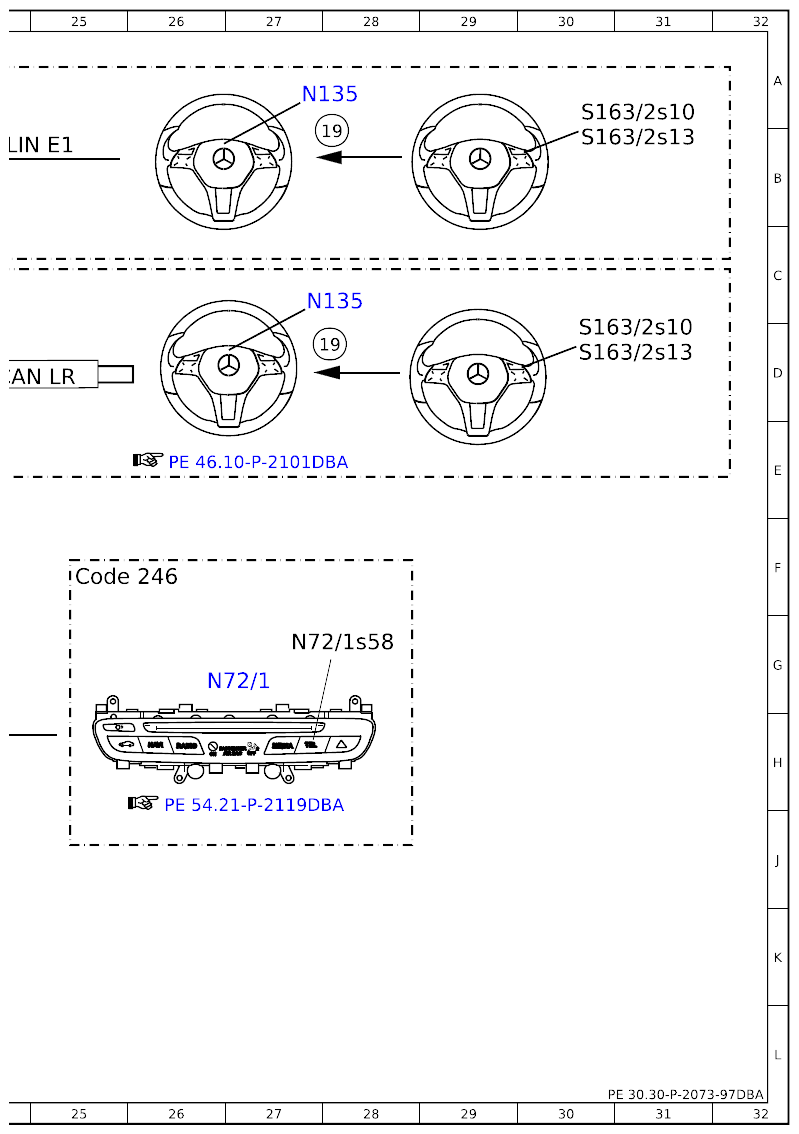

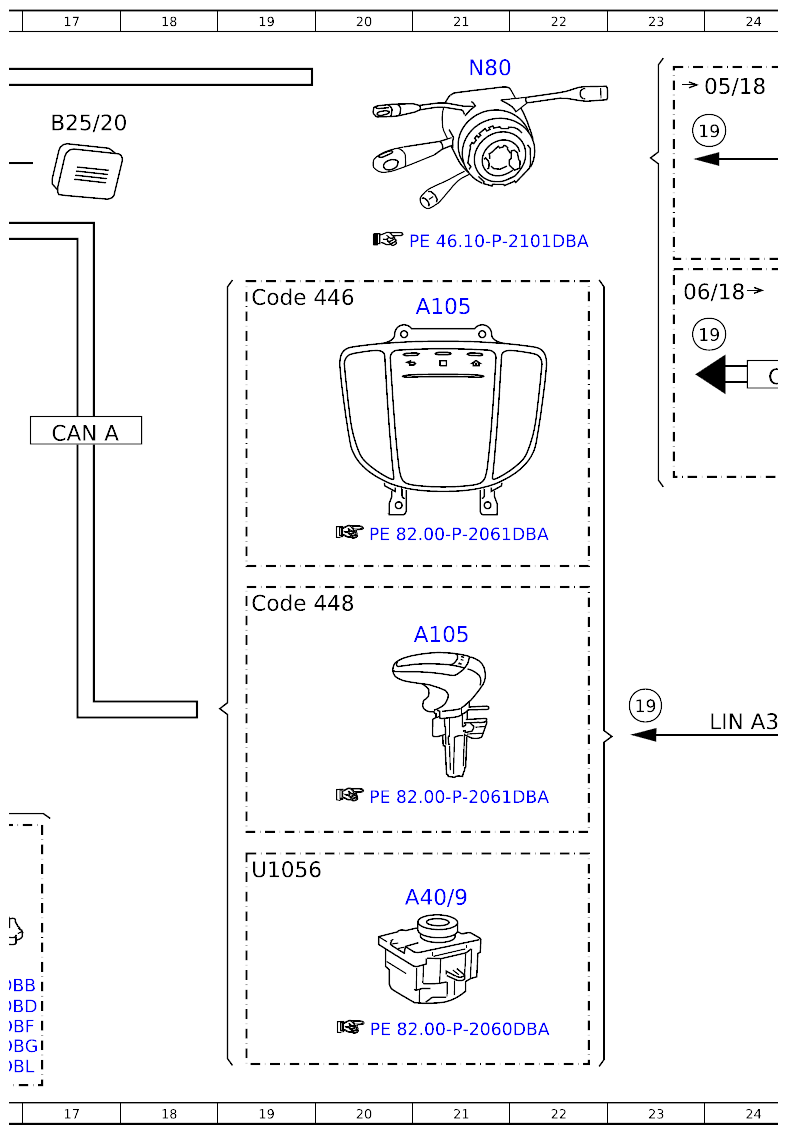

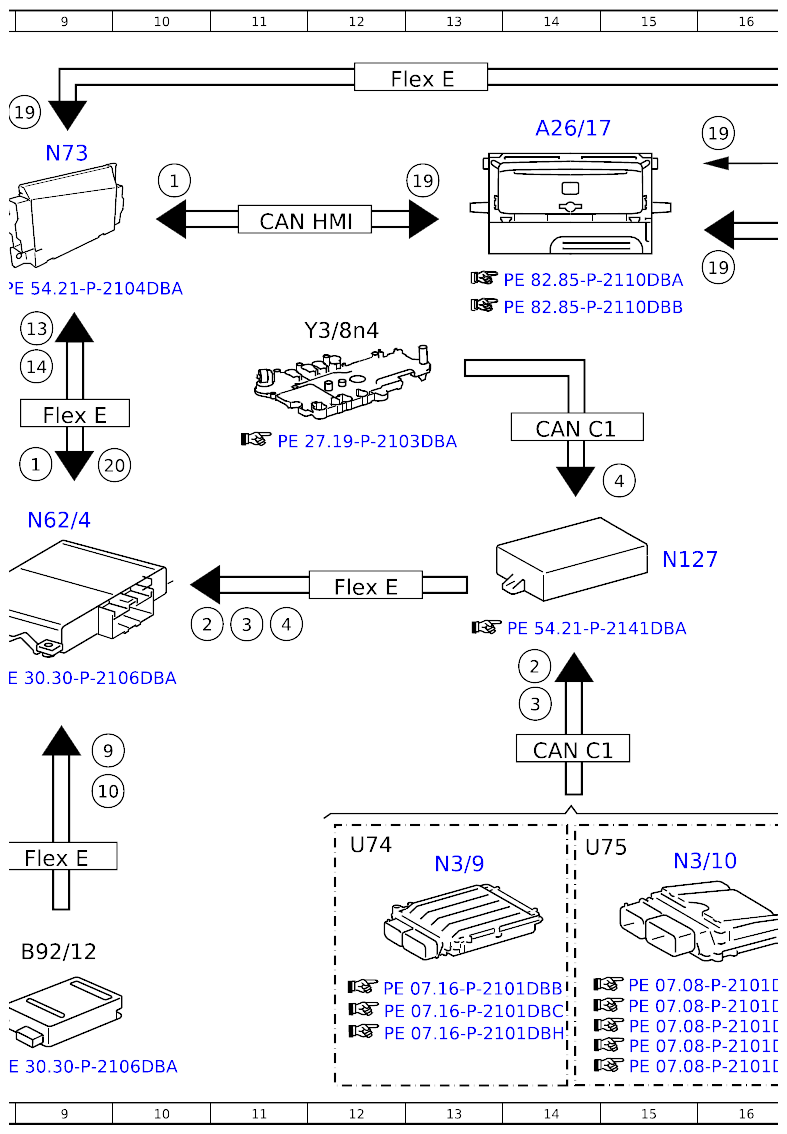

Electrical Function Schematic Of Active Brake Assist With Cross-Traffic Function - PE30.30-P-2073-97DBA
Model 213
up to model year 2021
with code 23P (Drive package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Active Brake Assist with cross-traffic function, status | 9E |
| 1 | Active Brake Assist with cross-traffic function, status | 10B |
| 10 | Short and long-range radar sensor, signal | 9H |
| 11 | Stereo multifunction camera, status | 8E |
| 12 | Object information, data package | 8E |
| 13 | Active Brake Assist with cross-traffic function distance warning, request | 6B |
| 13 | Active Brake Assist with cross-traffic function distance warning, request | 9D |
| 14 | Warning tone, request | 6B |
| 14 | Warning tone, request | 9D |
| 15 | Speaker, actuation | 3A |
| 16 | Service brake braking torque, request | 3F |
| 17 | Traction system hydraulic unit, actuation | 2E |
| 19 | Operation, signal | 13B |
| 19 | Operation, signal | 16B |
| 19 | Operation, signal | 16C |
| 19 | Operation, signal | 23G |
| 19 | Operation, signal | 9A |
| 19 | Operation, signal | 23D |
| 19 | Operation, signal | 28D |
| 19 | Operation, signal | 28B |
| 19 | Operation, signal | 23B |
| 2 | Engine running, signal | 10G |
| 2 | Engine running, signal | 14G |
| 20 | Active Brake Assist function with cross-traffic function, signal | 5D |
| 20 | Active Brake Assist function with cross-traffic function, signal | 9E |
| 3 | Drivetrain operational, signal | 11G |
| 3 | Drivetrain operational, signal | 14G |
| 4 | Gear range, status | 11G |
| 4 | Gear range, status | 15E |
| 5 | ESP®, status | 7F |
| 6 | Speed, turn rate and lateral acceleration, signal | 7F |
| 6 | Speed, turn rate and lateral acceleration, signal | 2H |
| 7 | Wheel speed, signal | 6F |
| 8 | Wheel rotation direction, signal | 6F |
| 9 | Radar sensor system operational, status | 9H |
| A1 | Instrument cluster | 2B |
| A105 | Touchpad | 21G |
| A105 | Touchpad | 21C |
| A26/17 | Head unit | 14B |
| A40/13 | Stereo multifunction camera | 3D |
| A40/9 | Audio/COMAND control panel | 21J |
| A7/3 | Traction system hydraulic unit | 2D |
| B25/20 | Driver hands-free system microphone | 17B |
| B92/12 | Short and long-range radar sensor | 9K |
| CAN A | Telematics CAN | 17E |
| CAN C1 | Drivetrain CAN | 14H |
| CAN C1 | Drivetrain CAN | 14E |
| CAN H | Vehicle dynamics CAN | 2J |
| CAN HMI | User interface CAN | 7C |
| CAN HMI | User interface CAN | 11C |
| CAN LR | Steering wheel CAN | 24D |
| Code 246 | Analog clock | 25F |
| Code 446 | Touchpad only | 19C |
| Code 448 | Touchpad | 19F |
| Flex E | Chassis FlexRay | 12F |
| Flex E | Chassis FlexRay | 9E |
| Flex E | Chassis FlexRay | 9J |
| Flex E | Chassis FlexRay | 5G |
| Flex E | Chassis FlexRay | 6E |
| Flex E | Chassis FlexRay | 6D |
| Flex E | Chassis FlexRay | 13A |
| H4/61 | Instrument cluster speaker | 3A |
| LIN A3 | LCP LIN | 24H |
| LIN E1 | Steering LIN | 24B |
| N127 | Drivetrain control unit | 15F |
| N135 | Steering wheel electronics | 28C |
| N135 | Steering wheel electronics | 27A |
| N2/10 | Supplemental restraint system control unit | 2K |
| N3/10 | ME-SFI [ME] control unit | 15J |
| N3/9 | CDI control unit | 13J |
| N30/4 | Electronic Stability Program control unit | 2F |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 9F |
| N72/1 | Upper control panel control unit | 26G |
| N72/1s58 | Vehicle button | 27G |
| N73 | Electronic ignition switch control unit | 9B |
| N80 | Steering column module control unit | 21A |
| S163/2s10 | Head unit finger navigation pad | 30D |
| S163/2s10 | Head unit finger navigation pad | 30A |
| S163/2s13 | "Back" button | 30D |
| S163/2s13 | "Back" button | 30B |
| U1056 | Valid except code 446 (Touchpad only) | 19J |
| U74 | Valid for diesel engines | 12J |
| U75 | Valid for gasoline engines | 14J |
| Y3/8n4 | Fully integrated transmission control, control unit | 12D |
