Dual-Clutch Transmission, Basic Function - GF27.00-P-9900A

Model All with Transmission 700.4, 724.0/1

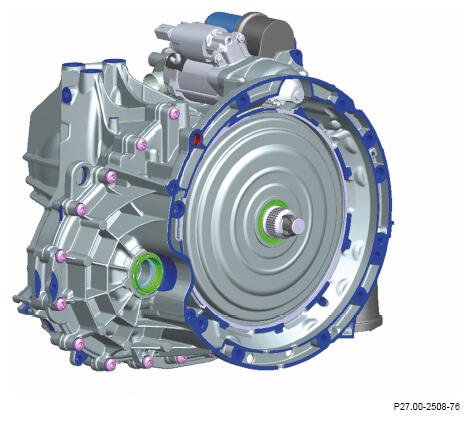

Example illustration of dual-clutch transmission

Courtesy of MERCEDES-BENZ USA

Overview

This document contains information on:

• General
• Function

General

The dual clutch Transmission is characterized by fast gear changes without interruption of tractive power and improved efficiency. It allows sporty vehicle dynamics while at the same time providing the comfort of an automatic transmission.

Function

The dual-clutch Transmission consists of two sub-transmissions, each with a wet multiplate clutch located at the drive end. The fully integrated Transmission control electrohydraulic controller unit or the dual-clutch Transmission control unit actuates the dual-clutch transmission. The control unit monitors Transmission speed, rpm or gear ratio and adapts the shift operations to the respective driving situation and the driver's requirements. Dual-clutch transmissions are available as variants with seven or nine forward gears and one reverse gear.

The dual-clutch Transmission has the following advantages:

• Compact design
• Faster gear change
• High rpm resistance
• Low engine drag torque
• Extremely high thermal load capacity
• High gearshift dynamics
• Smooth acceleration
• No interruption of tractive power
