Remove/Install Fuel Differential Pressure Sensor - AR07.04-P-0025MFG

Engine 139 in model 118, 177, 247

MODIFICATION NOTES

28.11.2019

Method adapted.

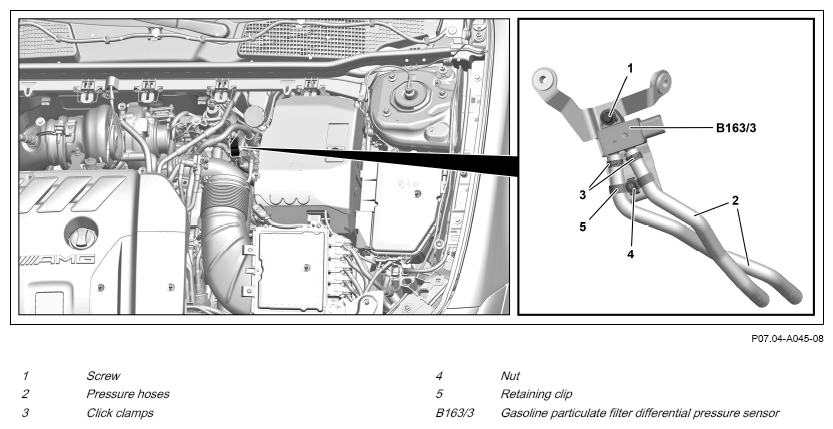

Fig 1: Fuel Differential Pressure Sensor Components Location - Engine 139 In Model 247 (Shown On Model 177)

Courtesy of MERCEDES-BENZ USA

Shown on model 177

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove upper engine cover.
			AP01.10-P-2405-01K
		Only install upper engine cover after the leak test.
2	Remove air intake pipe upstream of the exhaust gas turbocharger.		AR09.10-P-0003MFG
3	Remove nut (4) of the retaining clip (5).
4	Remove retaining clip (5).
5	Remove screw/bolt (1).	Bolt/nut, differential pressure sensor to bracket	*BA07.04-P-1002-01R
6	Remove gasoline particulate filter differential pressure sensor (B163/3) from the bracket.
7	Open click clamps (3).	Install new click clamps (3). Position click clamps (3) in original installation position.
		Pliers for click clamps	Fig 3
8	Detach pressure hoses (2) from the gasoline particulate filter differential pressure sensor (B163/3).	Observe markings on the pressure hoses (2). Attach pressure hoses (2) to the gasoline particulate filter differential pressure sensor (B163/3) free of tension.
9	Remove gasoline particulate filter differential pressure sensor (B163/3).
10	Seal openings with suitable stop plug.	Record plug	Fig 2
11	Install in the reverse order.
12	Read out and delete fault memory.
			AD00.00-P-2000-06MFA
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
13	Carry out engine test run and check engine for proper leak tightness and leak tightness.
14	Install upper engine cover.
			AP01.10-P-2405-01K

TRANSMITTERS, DETECTORS, SENSORS

Number	Designation		Engine 139
BA07.04-P-1002-01R	Bolt/nut, differential pressure sensor to bracket	Nm	8

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Pliers For Click Clamps (171 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
