Remove/Install Front Seat Side AIRBAG Unit - AR91.60-P-0695MFD
Model 118, 177, 247
with code 555 (AMG-Performance Seat)
except code 7U1 (Manually adjustable front seats)
except code 7U2 (Luxury front seats)
except code 7U4 (Seat model variant 4)
MODIFICATION NOTES
| 19.10.2023 | Nut, side airbag unit to backrest frame | Model 247 | BA91.60-P-1008-01Q |
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove seat backrest padding. | AR91.10-P-0003MFD | |
| 2 | Remove air cushions of multicontour seat backrest. | Model 118, 177, 247 with code 409 (Left and right front multicontour seat) with code 555 (AMG-Performance Seat) except code 7U1 (Manually adjustable front seats) except code 7U2 (Luxury front seats) except code 7U4 (Seat model variant 4) |
AR91.25-P-1740MFD |

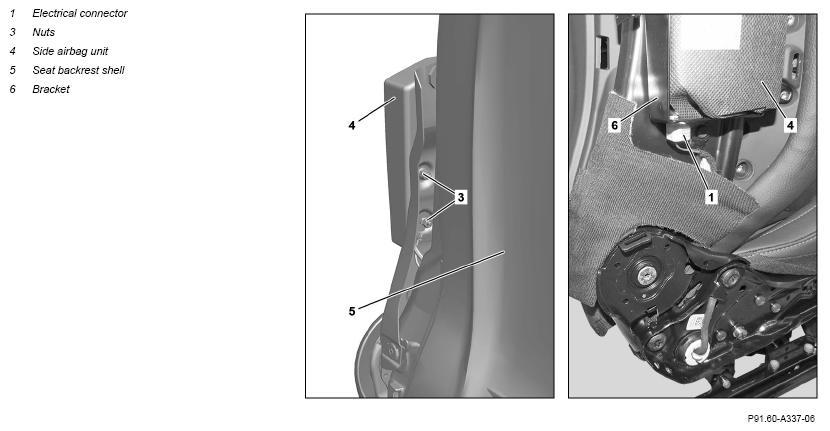

| 3 | Release electrical connector (1) and disconnect. | Fig 1 | |

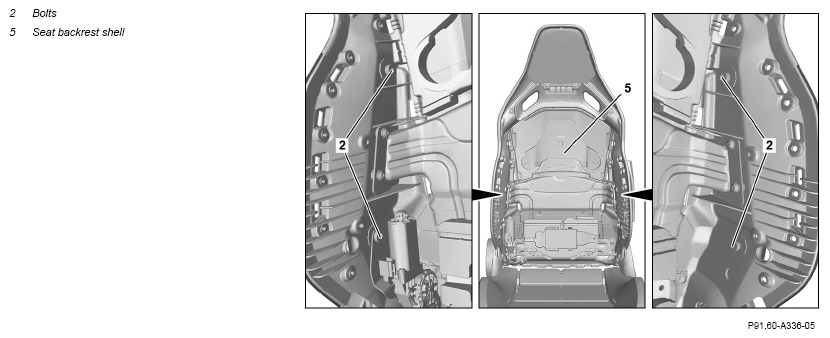

| 4 | Tighten screws (2). | *BA91.10-P-1005-01U | |
| 5 | Push seat backrest shell (5) forward until nuts (3) are accessible. | Otherwise there will be damage to the seat backrest shell (5). |
|
| 6 | Remove nuts (3). | *BA91.60-P-1008-01Q | |
| 7 | Carefully remove side airbag unit (4) together with holder (6). | ||
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | ||
| AD00.00-P-2000-06MFA |
FRONT SEATS
| Number | Designation | Model 118 | Model 177 | ||
|---|---|---|---|---|---|
| BA91.10-P-1005-01U | Screw, seat backrest adjustment to seat backrest shell | M10 | Nm | 35 | 35 |
FRONT SEATS
| Number | Designation | Model 247 | ||
|---|---|---|---|---|
| BA91.10-P-1005-01U | Screw, seat backrest adjustment to seat backrest shell | M10 | Nm | 35 |
AIRBAG
| Number | Designation | Model 118 | Model 177 | |
|---|---|---|---|---|
| BA91.60-P-1008-01Q | Nut, side airbag unit to backrest frame | Nm | 7 | 7 |
AIRBAG
| Number | Designation | Model 247 | |
|---|---|---|---|
| BA91.60-P-1008-01Q | Nut, side airbag unit to backrest frame | Nm | 6 |
