Remove/Install Circulation Pump For Low-Temperature Circuit - AR09.41-P-6926MFC
Engine 260 in model 118, 177, 247 with code M016 (Uprated engine)

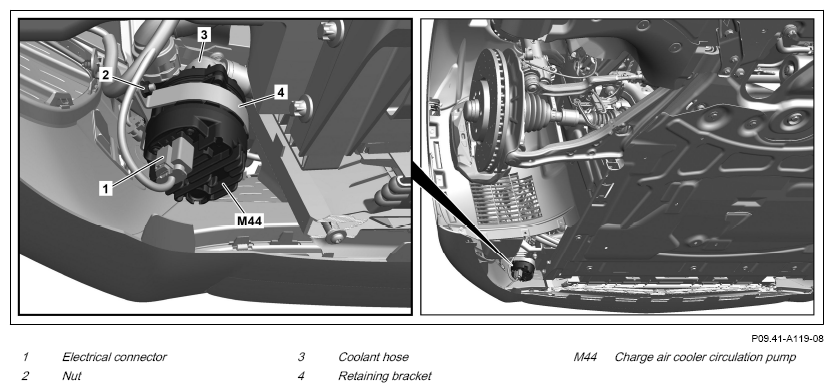

Fig 1: Circulation Pump For Low-Temperature Circuit Components Location - Engine 260 In Model 247 With Code M016
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Drain off low-temperature circuit coolant. | AR09.41-P-6834MFC | |
| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Remove the coolant hose (3) from the charge air cooler circulation pump (M44) and seal the openings with protective covers. | AR09.41-P-1311-01AL | |
| Fig 2 | |||
| 4 | Remove the nuts (2) and open the retaining bracket (4). | *BA20.10-P-1011-01AC | |
| 5 | Remove charge air cooler circulation pump (M44). | ||
| 6 | Install in the reverse order. | ||
| 7 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06MFA |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 260 | |
|---|---|---|---|
| BA20.10-P-1011-01AC | Screw/nut, charge air cooler circulation pump retaining bracket/circulation pump to holder | Nm | 8 |
