Transmitter Key, Basic Function - GF80.35-P-2001A
Model All (4xWD, CAR)
Overview
This document contains information on:
- General
- Function

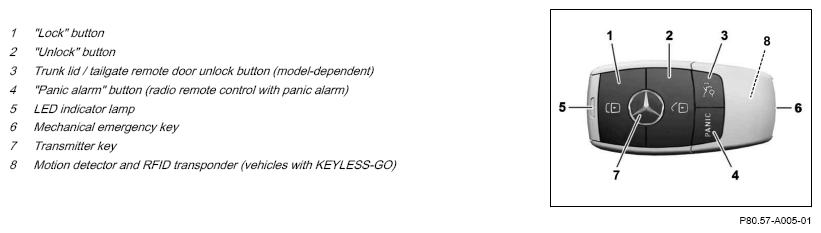

Sample illustration of transmitter key
General
The transmitter key (7) contains an "electronic key". This contains a FM radio transmitter, a computer chip as well as a battery (button cell).
For vehicles with KEYLESS-GO, a RFID transponder and motion detector (as of model year 2020) are also integrated in the transmitter key (7).
The following control elements are also integrated:
- Lock button (1)
- Unlock button (2)
- Remote trunk/tailgate release button (3) (vehicles with remote trunk closing or EASY-PACK liftgate)
- Panic alarm button (4) (radio remote control with panic alarm)
- LED indicator lamp (5)
Function
The following functions can be operated with the transmitter key (7):
- Lock/unlock central locking system.
- Selective: only driver's door and fuel filler flap or socket flap
- Global: All doors, trunk lids or liftgate and fuel filler flap or socket flap
- KEYLESS-GO start
- KEYLESS-GO (vehicles with KEYLESS-GO)
- Convenience feature
- Remove trunk/liftgate release (vehicles with remote trunk closing or EASY-PACK liftgate)
- Panic alarm (radio remote control with panic alarm)
The unlock setting (selective/global) can be changed and the key functions deactivated on the transmitter key (7). This is described in the operator's manual for the vehicle.
The driver's door can be locked/unlocked with the integrated mechanical emergency key.
The communication of the transmitter key (7) with the vehicle takes place via a wireless connection.
The transmitter key (7) monitors the state of charge of its battery itself and indicates this via the red indicator lamp.
Vehicles with KEYLESS-GO
Radio signals are transmitted only if the integrated motion detector detects movement.
| Component descriptions | |||
| Transmitter key, component description | Model 223 | GF80.57-P-6010A | |
| Model 243 | GF80.57-P-6010B | ||
| Model 206 | GF80.57-P-6010C | ||
| Model 297 | GF80.57-P-6010D | ||
| Model 295 | GF80.57-P-6010E | ||
| Model 296 | GF80.57-P-6010GG | ||
| Model 464 | GF80.57-P-6010J | ||
| Model 214 | GF80.57-P-6010K | ||
| Model 294 | GF80.57-P-6010N |
