Trunk Lid/Liftgate Lock Element, Basic Function - GF80.40-P-2002A
Model All (CAR)
with code 881 (Remote boot-lid closing)
Model All (CAR)
with code 890 (Automatic rear-end door)

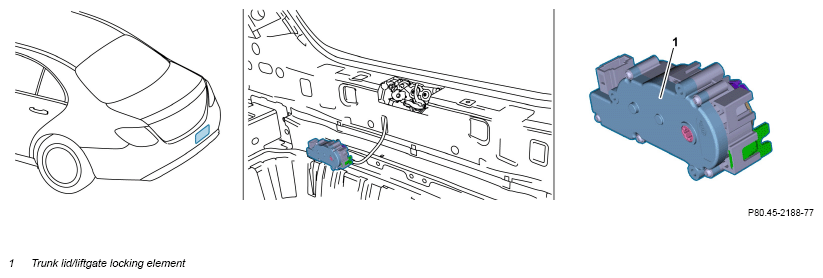

Example illustration of trunk lid/tailgate lock element in vehicles with remote trunk closing

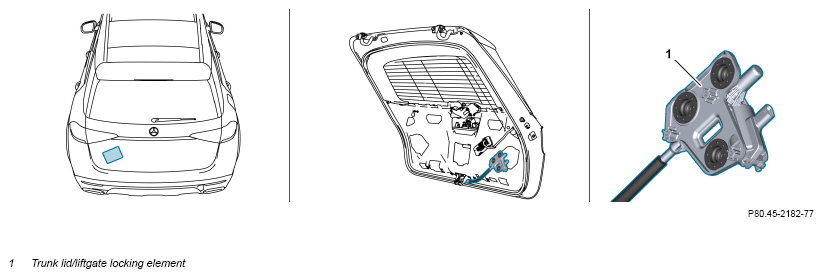

Example illustration of trunk lid/tailgate lock element in vehicles with EASY-PACK tailgate
Overview
This document contains information on:
- General
- Function
General
Vehicles with remote trunk closing
The trunk lid lock element is located behind the rear-end center-section trim.
Vehicles with EASY-PACK tailgate
The tailgate lock element is located on the left in the tailgate.
Function
The trunk lid/tailgate lock element (1) pulls the trunk lid or tailgate into the door lock. Depending on the model, the trunk lid/tailgate lock element (1) is actuated by the central signal acquisition and actuation module or the rear signal acquisition and actuation module.
| Component descriptions | |||
| Remote trunk closing, component description | Model 223 | GF80.20-P-0013A | |
| Model 297 | GF80.20-P-0013D | ||
| Model 295 | GF80.20-P-0013E | ||
| Model 296 | GF80.20-P-0013G | ||
| Model 294 | GF80.20-P-0013N |
