Remove/Install Loudspeaker Amplifier Control Unit - AR82.62-P-7720MFX
Model 247.6 with code 810 (Premium sound system) except code 853 ("Midline" sound system)

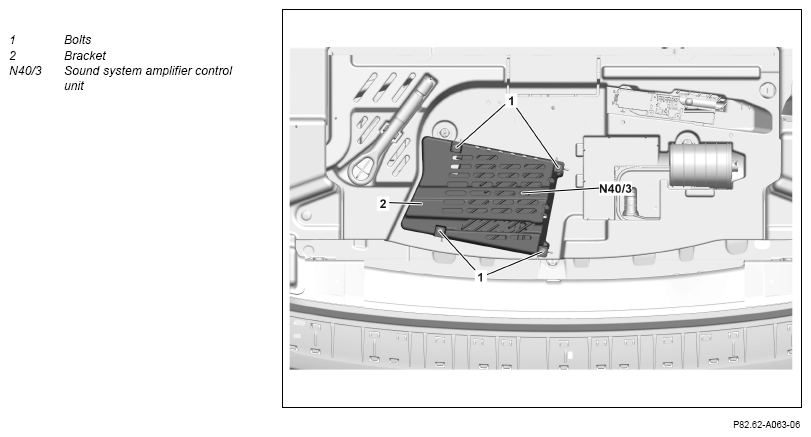

Fig 1: Loudspeaker Amplifier Control Unit Components Location - Model 247.6 With Code 810 Except Code 853
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove rear-end center-section trim. | AR68.30-P-4786MFV | |
| 3 | Remove bolts (1). | ||
| 4 | Remove holder (2). | ||
| 5 | Release and disconnect electrical connectors. | ||
| 6 | Remove sound system amplifier control unit (N40/3). | ||
| 7 | Install in the reverse order. | ||
| 8 | Commission sound system amplifier control unit (N40/3). | If sound system amplifier control unit (N40/3) is replaced. | |
| AD00.00-P-2000-06MFA |
