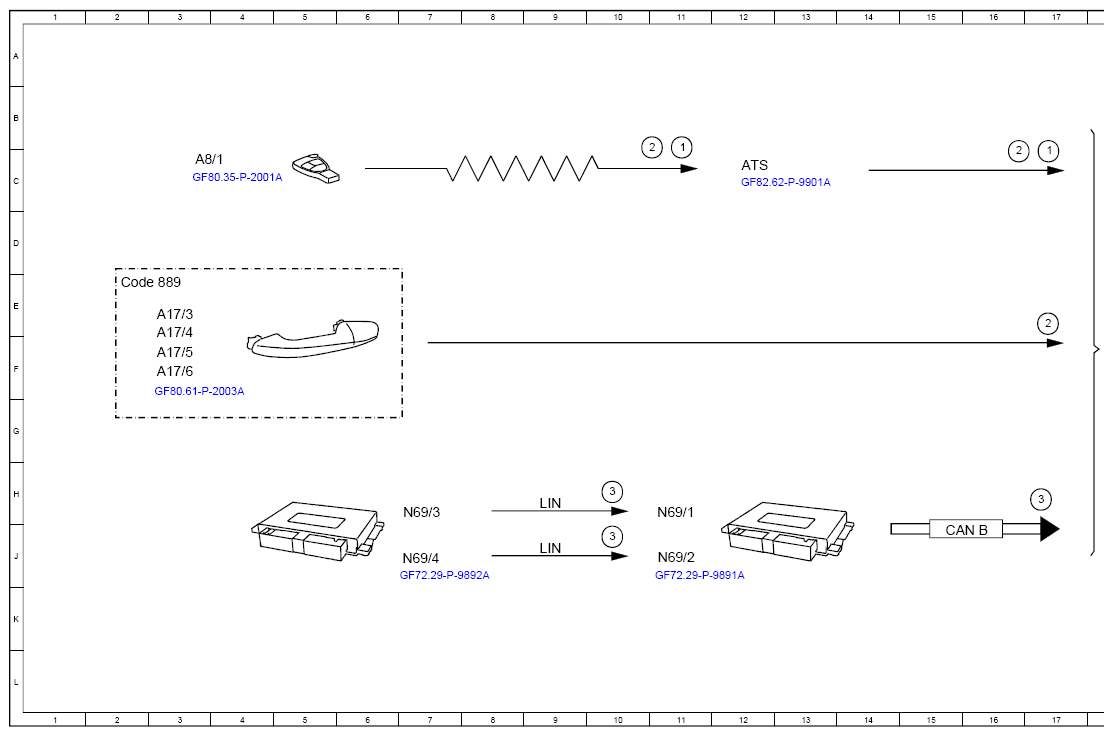

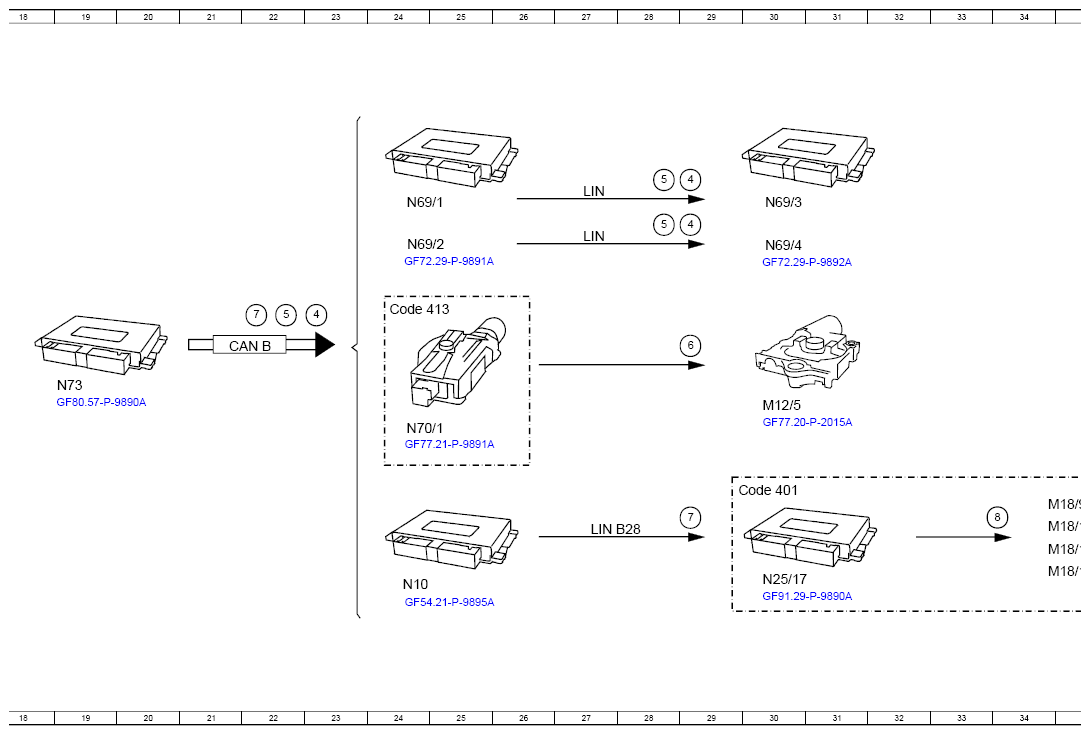

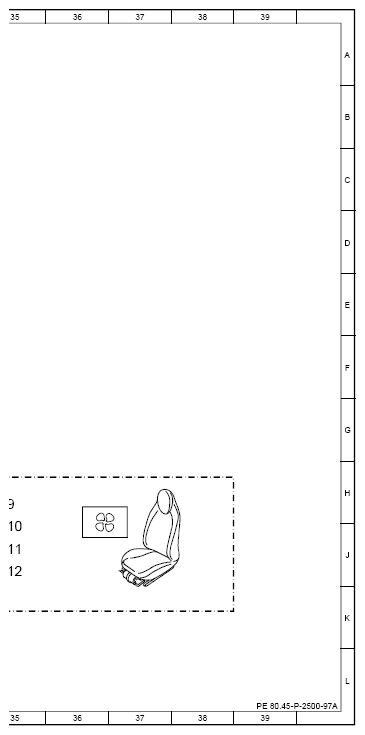

Trigger Convenience Feature Via Central Locking System, Function Schematic - PE80.45-P-2500-97A
Model 118, 177, 243, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Access authorization code, signal | 11B |
| 1 | Access authorization code, signal | 17B |
| 2 | Drive authorization query, signal | 17E |
| 2 | Drive authorization query, signal | 11B |
| 2 | Drive authorization query, signal | 17B |
| 3 | Door rotary tumbler switch, status | 10J |
| 3 | Door rotary tumbler switch, status | 10H |
| 3 | Door rotary tumbler switch, status | 17H |
| 4 | Convenience feature, status | 29B |
| 4 | Convenience feature, status | 29C |
| 4 | Convenience feature, status | 23E |
| 5 | Convenience feature direction, signal | 29B |
| 5 | Convenience feature direction, signal | 28C |
| 5 | Convenience feature direction, signal | 22E |
| 6 | Panoramic sliding sunroof roller sun blind motor, actuation | 29F |
| 7 | Seat ventilation, request | 29H |
| 7 | Seat ventilation, request | 22E |
| 8 | Seat ventilation motors, actuation | 34H |
| A17/3 | Left rear KEYLESS GO door handle | 3E |
| A17/4 | Right rear KEYLESS GO door handle | 3F |
| A17/5 | Driver door KEYLESS-GO door handle | 3F |
| A17/6 | Front passenger door KEYLESS-GO door handle | 3F |
| A8/1 | Transmitter key | 3C |
| ATS | Antenna system | 12C |
| CAN B | Interior CAN | 15J |
| CAN B | Interior CAN | 21F |
| Code 401 | Seat climate control at front | 29H |
| Code 413 | Panoramic sliding sunroof/glass roof | 24E |
| Code 889 | KEYLESS-GO | 2E |
| LIN | Local Interconnect Network | 9J |
| LIN | Local Interconnect Network | 9H |
| LIN | Local Interconnect Network | 27C |
| LIN | Local Interconnect Network | 27D |
| LIN B28 | Heater LIN | 27J |
| M12/5 | Panoramic sliding sunroof roller snowbound drive unit | 30G |
| M18/10 | Left front Bucharest seat ventilation motor | 34J |
| M18/11 | Right front seat cushion seat ventilation motor | 34J |
| M18/12 | Right front Bucharest seat ventilation motor | 34J |
| M18/9 | Left front seat cushion seat ventilation motor | 34H |
| N10 | Signal acquisition and actuation module | 24K |
| N25/17 | Front seat heater/seat ventilation control unit | 30J |
| N69/1 | Driver door control unit | 11H |
| N69/1 | Driver door control unit | 24C |
| N69/2 | Front passenger door control unit | 11J |
| N69/2 | Front passenger door control unit | 24D |
| N69/3 | Left rear door control unit | 7H |
| N69/3 | Left rear door control unit | 30C |
| N69/4 | Right rear door control unit | 7J |
| N69/4 | Right rear door control unit | 30D |
| N70/1 | Panoramic sliding sunroof control unit | 24G |
| N73 | Electronic ignition switch control unit | 19F |
