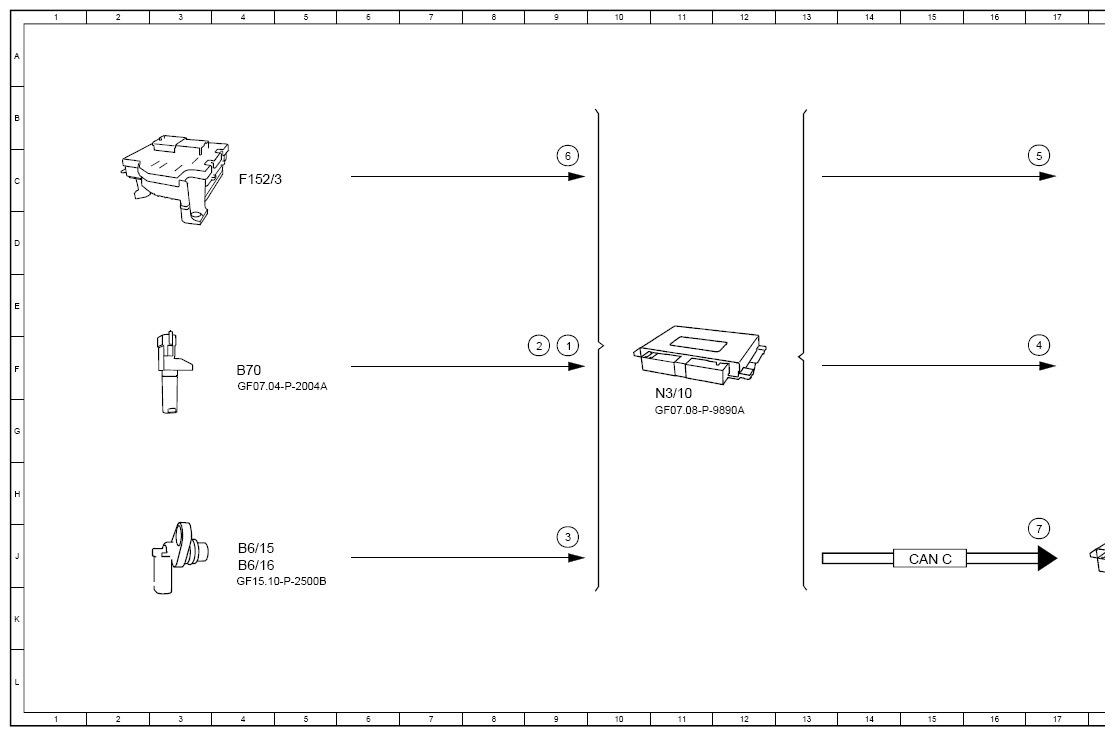

Function Schematic For ME Synchronization Of Fuel Injection And Firing Order - PE07.61-P-2502-97A
Engine 260 in model 118, 177, 247
Engine 264 in model 167
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine speed, signal | 9F |
| 2 | Crankshaft Hall sensor, signal | 9F |
| 3 | Camshaft Hall sensor, signal | 9J |
| 4 | Fuel injectors, actuation | 17F |
| 5 | Ignition coils, actuation | 17C |
| 6 | Circuit 87, status | 9C |
| 7 | Engine running, signal | 17J |
| B/15 | Intake camshaft Hall sensor | 4J |
| B/16 | Exhaust camshaft Hall sensor | 4J |
| B70 | Crankshaft Hall sensor | 4F |
| CAN C | Engine CAN | 15J |
| F15/3 | Engine compartment fuse and relay module | 4C |

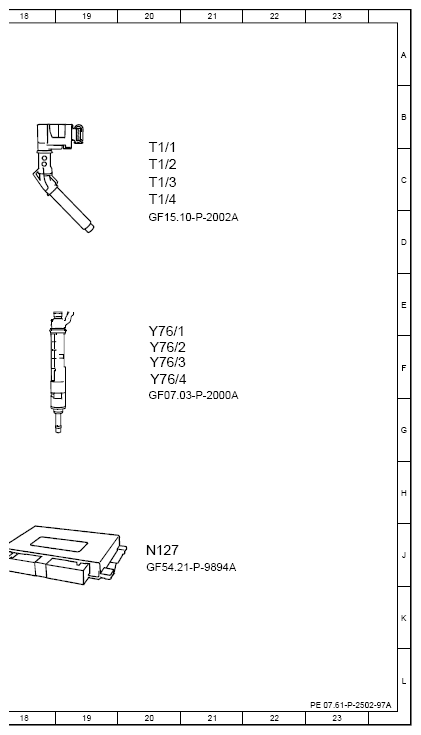

| N127 | Drivetrain control unit | 20J |
| N/10 | ME-SFI [ME] control unit | 11F |
| T/1 | Cylinder 1 ignition coil | 20C |
| T/2 | Cylinder 2 ignition coil | 20C |
| T/3 | Cylinder 3 ignition coil | 20C |
| T/4 | Cylinder 4 ignition coil | 20C |
| Y7/1 | Cylinder 1 fuel injector | 20F |
| Y7/2 | Cylinder 2 fuel injector | 20F |
| Y7/3 | Cylinder 3 fuel injector | 20F |
| Y7/4 | Cylinder 4 fuel injector | 20F |
