Remove/Install Pedal Assembly - AR29.10-P-0300MFA

Model 118, 177, 247

except code 411 (6-speed manual transmission)

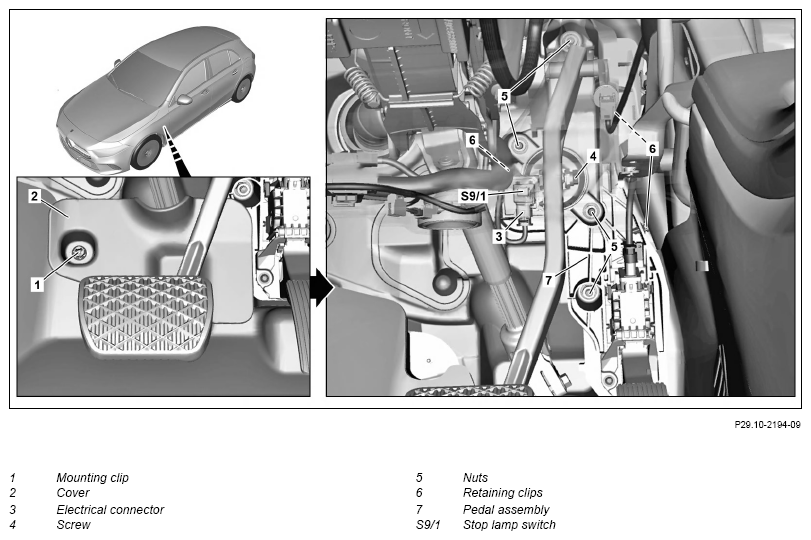

Fig 1: Pedal Assembly Components Location - Model 247 Except Code 411

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove bottom paneling for dashboard on driver side		AR68.10-P-1501MFA
2	Remove retaining clip (1) and take out trim (2)	Insert retaining clip (1) into attachment point and press firmly.
3	Remove accelerator pedal		AR30.12-P-1321MFA
4	Release and disconnect electrical connector (3) at brake light switch (S9/1)
5	Remove screw (4) from brake booster	Replace screw (4).
		Bolt, brake pedal brake booster retaining bolt	*BA43.10-P-1002-01L
6	Unscrew nuts (5).	Nut, pedal assembly to firewall	*BA29.10-P-1001-02L
7	Remove pedal assembly (7) until the electrical wiring harness is accessible
8	Loosen electrical wiring harness from pedal assembly (7) at retaining clips (6) and remove pedal assembly (7)	Replace retaining clips (6) if necessary.
9	Install in the reverse order
