Trunk Lid/Liftgate Lock Element, Basic Function - GF80.40-P-2002A
Model all (CAR)
with code 881 (Remote boot-lid closing)
Model all (CAR)
with code 890 (Automatic rear-end door)
Vehicles with remote trunk closing
Vehicles with EASY-PACK tailgate
Location

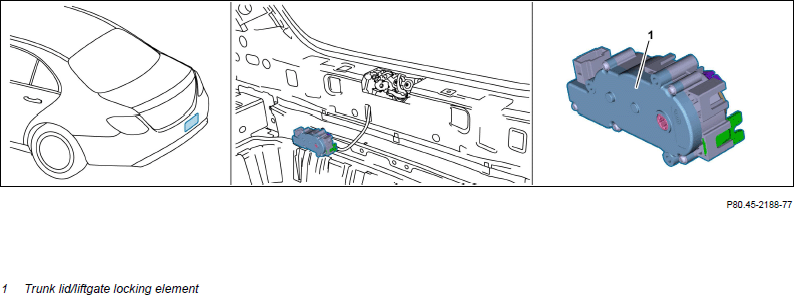

Vehicles with remote trunk closing
The trunk lid lock element is located behind the rear-end center-section trim.

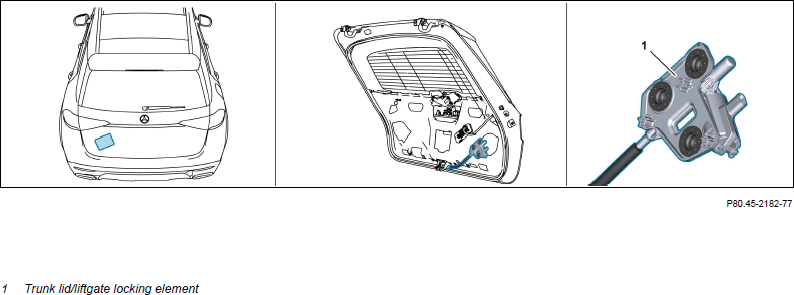

Vehicles with FASY-PAP.K tailgate
The tailgate lock element is located on the left in the tailgate.
Task
The trunk lid/tailgate lock element draws the trunk lid or tailgate into the door lock. The trunk lid/tailgate lock element is actuated in a model-dependent manner by the central signal acquisition and actuation module or the rear signal acquisition and actuation module.
