A/C Operating Unit, Basic Function - GF83.40-P-2016A
Model all (CAR)
Overview
This document contains information on:
- General
- Location
- Function requirement
- Structure
General
Depending on the model and equipment installed, the climate control functions must be operated using the controls on the air conditioning j control panel and/or the multimedia system. Depending on the model, I the air conditioning nozzles can be operated using a single button next to the respective nozzle.
Location
The air conditioning control panel (depending on model) is located in
the center of the lower section of the instrument panel.
In the 4 zone version or 5 zone version of air conditioning systems, a
rear climate control operating unit is also used. This is located in the
rear of the center console between the front seats.
Depending on the equipment, a central rear operating element
(e.g. touchscreen or tablet PC) may be used instead of the rear climate
control operating unit.
The 3rd seat row (for 5 zone version) has no separate operating unit but is operated via the multimedia system.
Function requirement
- Circuit 30t ON
Structure
Depending on the model and equipment involved, the location and number of the controls on the air conditioning control panel differ.

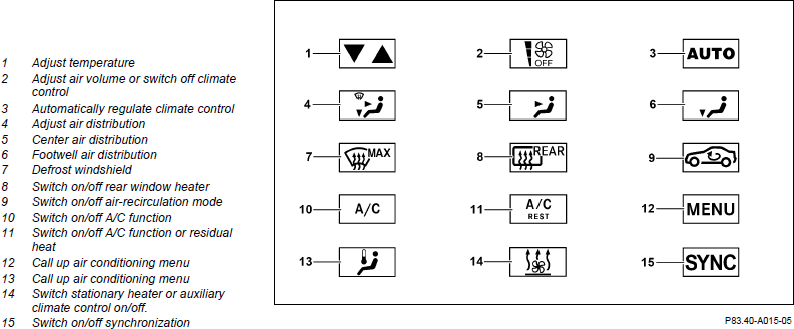

Possible control elements
| Component description | |||
| Climate control operating unit, component description | Model 243 | GF83.40-P-2261B |
