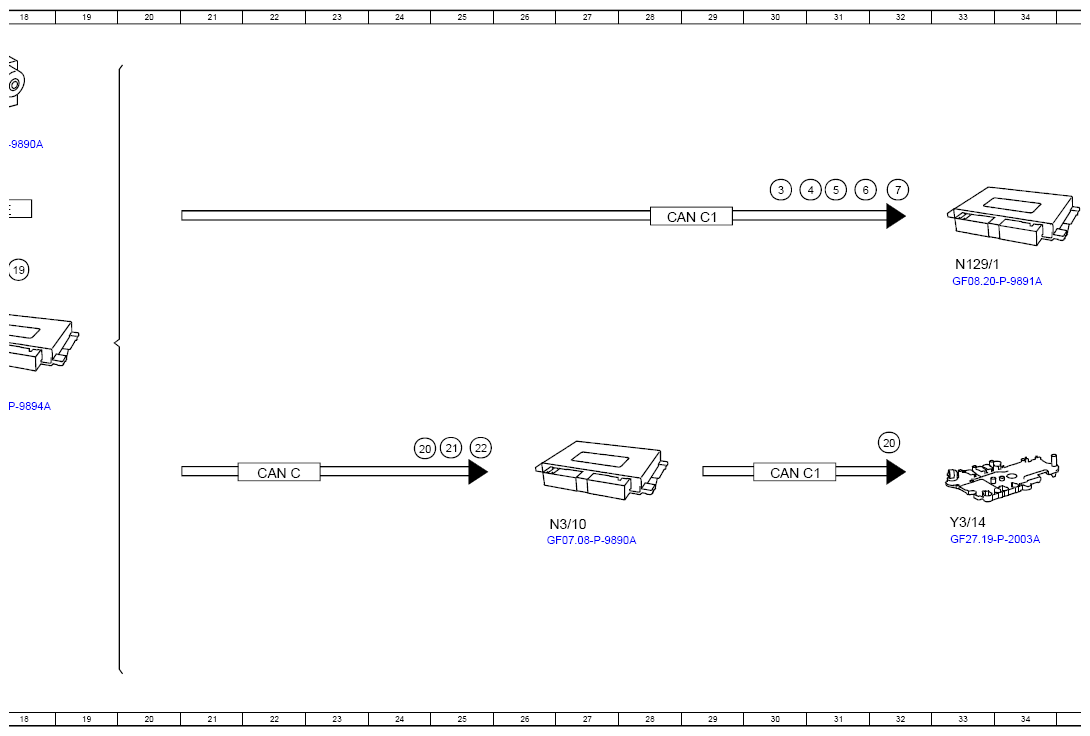

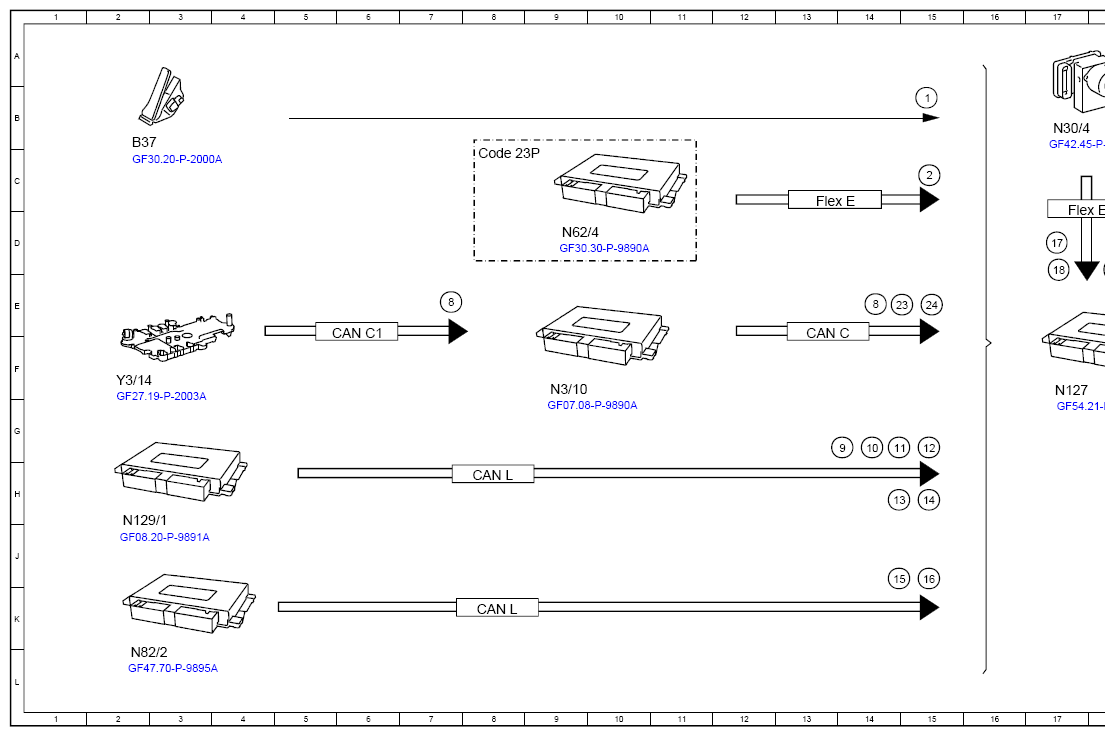

(Function Schematic For Driving Status Control - PE08.30-P-2502-97B)
Model 177, 247 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Accelerator pedal sensor, signal | 15B |
| 10 | Electric machine rpm, signal | 14G |
| 11 | Electric machine, status | 14G |
| 12 | Charging voltage and charging current, signal | 15G |
| 13 | Available torque, signal | 14H |
| 14 | Electric machine generative torque, signal | 15H |
| 15 | High-voltage battery voltage, signal | 14J |
| 16 | High-voltage battery temperature, signal | 15J |
| 17 | Service brake, status | 17D |
| 18 | Wheel speed, signal | 17D |
| 19 | Torque lowering/ESP® dynamics, request | 18D |
| 2 | Torque change/DISTRONIC dynamics, request | 15C |
| 20 | Engine clutch, request | 24H |
| 20 | Engine clutch, request | 32G |
| 21 | Specified torque, combustion engine, request | 25G |
| 22 | Hybrid drive system, status | 25G |
| 23 | Engine torque, signal | 14E |
| 24 | Combustion engine, status | 15E |
| 3 | Tolerable charging voltage/current, signal | 30C |
| 4 | Electric machine specified torque, request | 31C |
| 5 | Discharge voltage and discharge current, request | 31C |
| 6 | Charging voltage and charging current, request | 31C |
| 7 | Tolerable discharge voltage/current, signal | 32C |
| 8 | Engine clutch, status | 14E |
| 8 | Engine clutch, status | 8E |
| 9 | Operating mode, status | 14G |
| B37 | Accelerator pedal sensor | 2B |
| CAN C | Engine CAN | 13F |
| CAN C | Engine CAN | 22H |
| CAN C1 | Drive train CAN | 28D |
| CAN C1 | Drive train CAN | 6F |
| CAN C1 | Drive train CAN | 30H |
| CAN L | Hybrid CAN | 8H |
| CAN L | Hybrid CAN | 8K |
| Code 23P | Driver assistance package | 8C |
| Flex E | Chassis FlexRay | 17D |
| Flex E | Chassis FlexRay | 13C |
| N127 | Drivetrain control unit | 17F |
| N12/1 | Power electronics control unit | 2J |
| N129/1 | Power electronics control unit | 33D |
| N/10 | ME-SFI [ME] control unit | 9F |
| N/10 | ME-SFI [ME] control unit | 27J |
| N3/4 | Electronic Stability Program control unit | 17B |
| N6/4 | Mercedes-Benz Intelligent Drive control unit | 9D |
| N8/2 | Battery management system control unit | 2L |
| Y/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 2F |
| Y/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 33J |
