Remove/Install Sound System Control Unit - AR82.62-P-7724ME
Model 167.1 (except 167.117/154), 167.3 (except 167.317/354) With Code 810 (Premium sound system)
Model 167.1 (except 167.117/154), 167.3 (except 167.317/354) With Code 811 (High-End sound system)
MODIFICATION NOTES
| 28.03.2019 | Cover up fiber-optic cable added. | Step 9 |
Shown on model 167.1 With Code 811 (Advanced sound system)

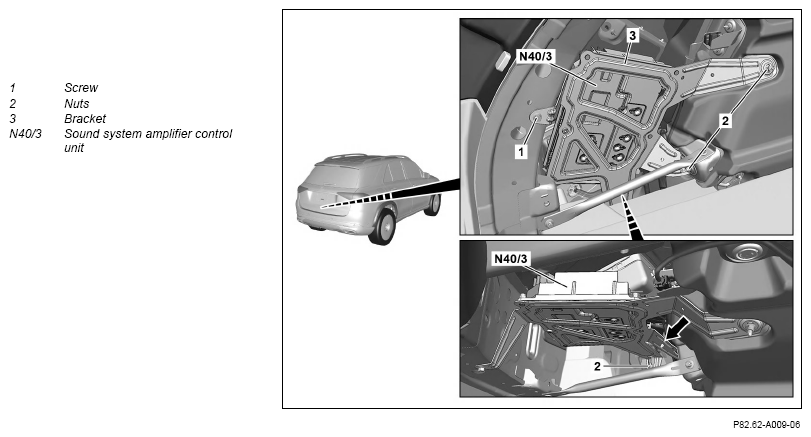

Fig 1: Sound System Control Unit Components Location - Model 167.1 (except 167.117/154), 167.3 (except 167.317/354) With Code 810, 811
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of sound system amplifier control unit (N40/3). | If sound system amplifier control unit (N40/3) is replaced. | |
| AD00.00-P-2000-06ME | |||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 3 | Remove left load compartment trim. | Model 167.1 | AR68.30-P-4800ME |
| Model 167.3 | AR68.30-P-1185MEC | ||
| 4 | Remove screw/bolt (1). | A nut (2) is installed instead of the bolt (1). |
|
| 5 | Remove nuts (2). | ||
| 6 | Unclip electrical wiring harness from holder (3) (arrow). | Fig 2 | |
| 7 | Remove the sound system amplifier control unit (N40/3) with bracket (3) far enough until electrical connectors are accessible. | ||
| 8 | Release and disconnect electrical connectors from sound system amplifier control unit (N40/3). | ||
| 9 | Cover up plug of electrical connector with fiber-optic cable and equipment connection on sound system amplifier control unit (N40/3). | ||
| 10 | Remove sound system amplifier control unit (N40/3) with bracket (3). | ||
| 11 | Remove sound system amplifier control unit (N40/3) from holder (3). | If sound system amplifier control unit (N40/3) is replaced. | |
| 12 | Install in the reverse order. |
