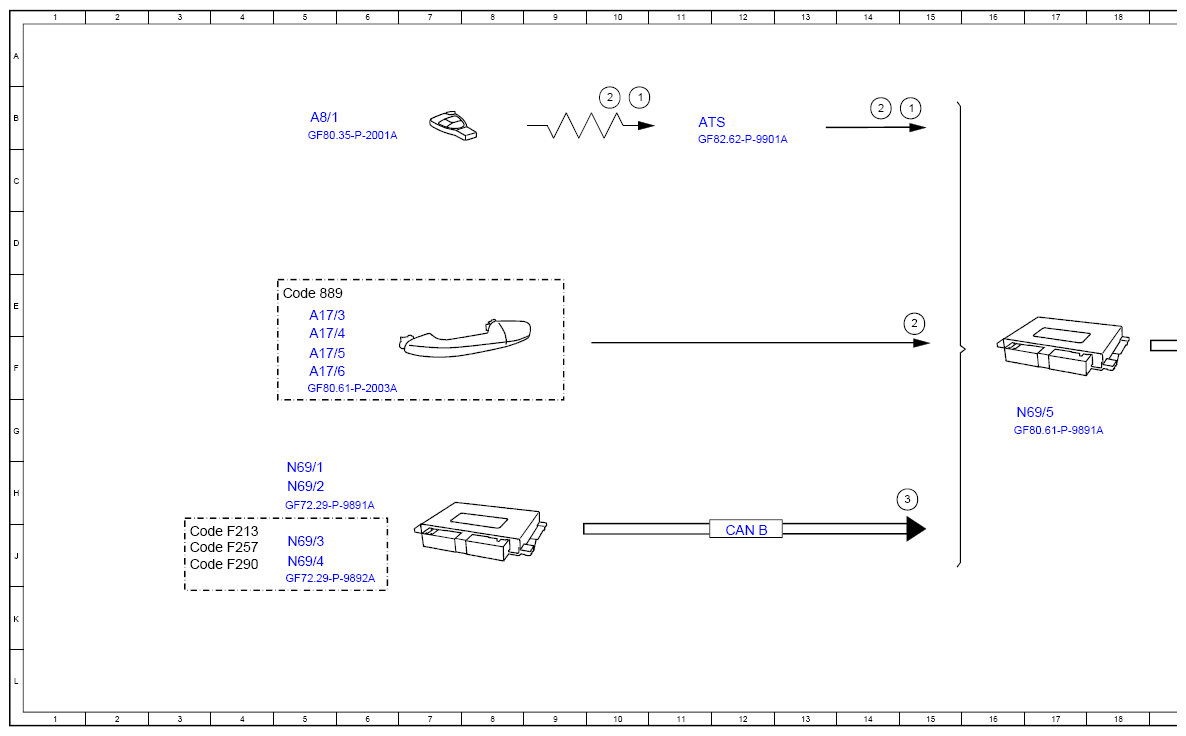

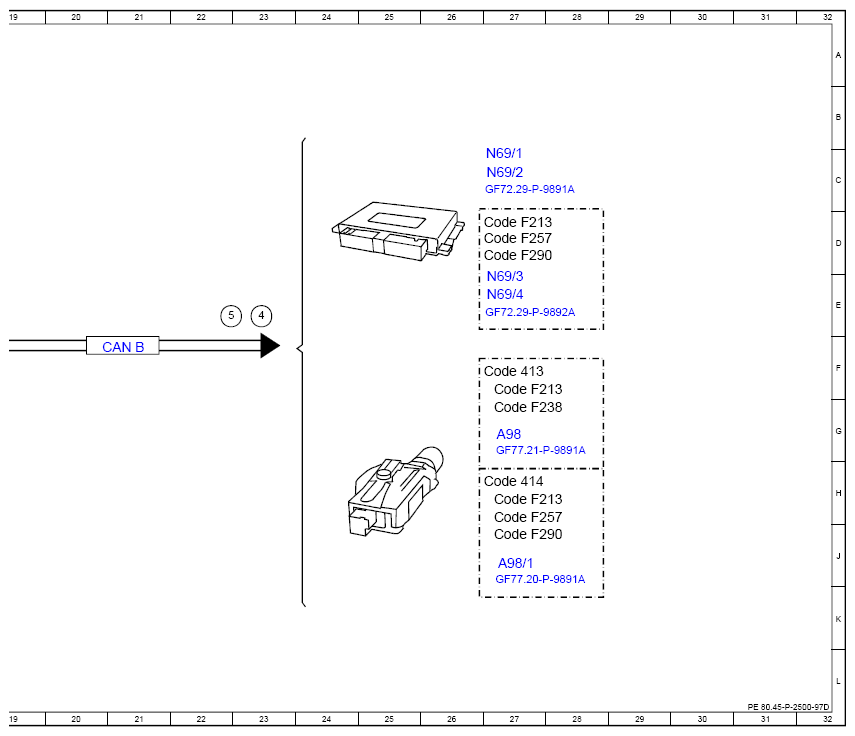

(Trigger Convenience Feature Via Central Locking System, Function Schematic - PE80.45-P-2500-97D)
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | access authorization code, Signal | - |
| 1 | access authorization code, Signal | - |
| 2 | Convenient closing/opening, request | - |
| 2 | Convenient closing/opening, request | - |
| 2 | Convenient closing/opening, request | - |
| 3 | Door rotary latch switch, status | - |
| 4 | Convenience operation, status | - |
| 5 | Comfort control direction, signal | - |
| A17/3 | door handle KEYLESS-GO back left | 5E |
| A17/4 | door handle KEYLESS-GO back right | 5F |
| A17/5 | door handle KEYLESS-GO driver's door | 5F |
| A17/6 | door handle KEYLESS-GO passenger door | 5F |
| A8/1 | Channel Key | 5B |
| A98 | Panorama sunroof control module | 27G |
| A98/1 | Sunroof control module | 27J |
| ATS | Antenna system | 11B |
| CAN B | Interior CAN | 12J |
| CAN B | Interior CAN | 21F |
| Code 413 | Panorama sunroof | 27F |
| Code 414 | Sunroof | 27H |
| Code 889 | KEYLESS GO | 5E |
| Code F213 | Series 213 | 3J |
| Code F213 | Series 213 | 27D |
| Code F213 | Series 213 | 27F |
| Code F213 | Series 213 | 27H |
| Code F238 | Series 238 | 27G |
| Code F257 | SERIES 257 | 3J |
| Code F257 | SERIES 257 | 27D |
| Code F257 | SERIES 257 | 27H |
| Code F290 | 290 series | 3J |
| Code F290 | 290 series | 27D |
| Code F290 | 290 series | 27J |
| N69/1 | Control unit front door left | 5H |
| N69/1 | Control unit front door left | 27C |
| N69/2 | Right front door control unit | 5H |
| N69/2 | Right front door control unit | 27C |
| N69/3 | Rear door control unit left | 5J |
| N69/3 | Rear door control unit left | 27E |
| N69/4 | Right rear door control unit | 5J |
| N69/4 | Right rear door control unit | 27E |
| N69/5 | KEYLESS-GO control unit | 17G |
